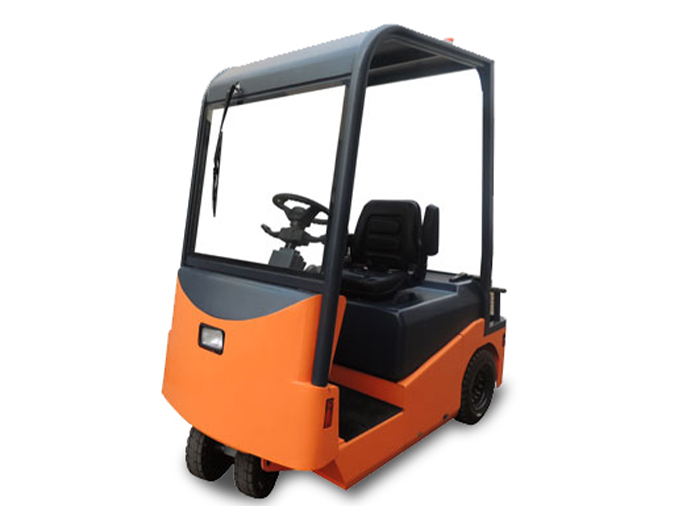

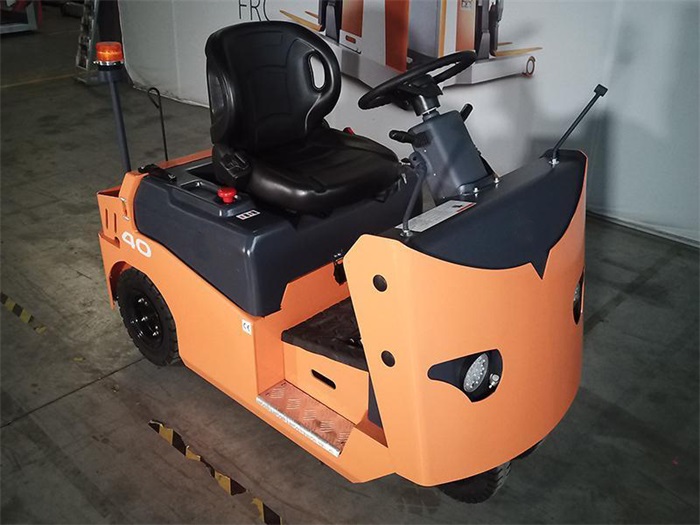

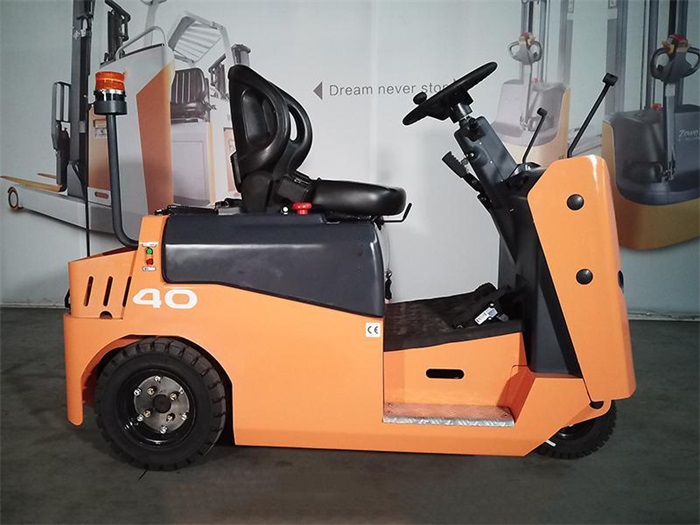

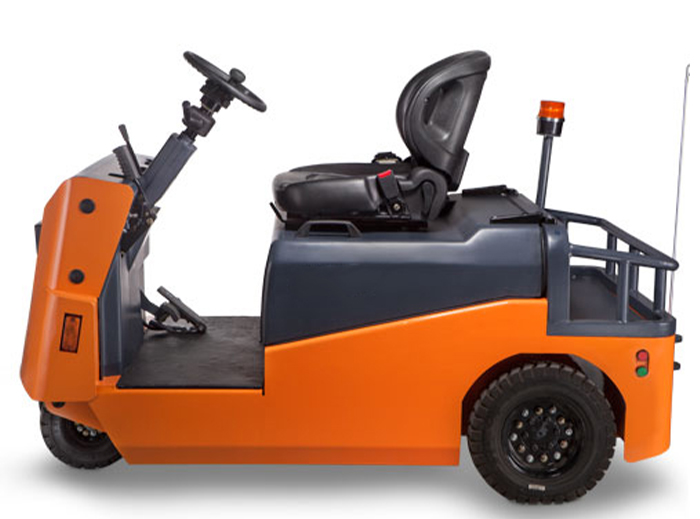

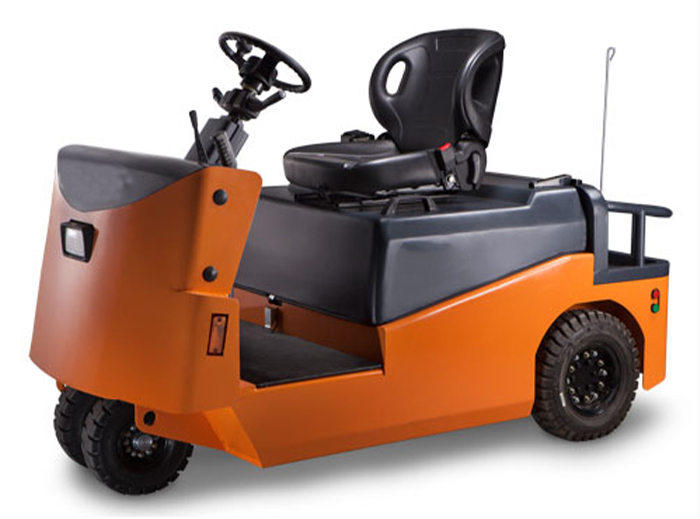

Name:QD-40XT Seated Electric Tow Tractor
Model:QD-40XT
Product Introduction:SINOLIFT QDXT40 4ton tow tractor is superbly versatile and maneuverable. It is an ideal choice for applications requiring the rapid and efficient transfer of multiple trailer loads in various industrial. This electric tow tractor is mainly used for towing and order packing and it is especially suitable for goods that move in the continuous flow. 4 ton towing tractor has a loading capacity up to 4,000kgs.This towing tractor is equipped with advanced integrated drive and control system that ensure reliable performance and high efficiency.

Features:

1. Wheelbase provides a tight turning radius and control in confined work environments for maximum maneuverability

2. Rear bridge drive unit provides this 4 ton tow tractor with excellent power and gradeability.

3. Ergonomically designed compartment allows easy operation of all controls and pedals to help reduce operators' fatigue.

4. This electric tow tractor is equipped with forward lever or reverse lever and floor-mounted accelerator pedal, which provide fast and easy direction control changes.

5. SINOLIFT 4 ton tow tractor is installed with heavy duty
suspension seat with arms, multi-angle back support, sliding base and safety belt. This can improve operators' comfort and safety.
6. Low step height allows for easy entry and exit.
7. Small-diameter steering wheel provides effortless steering of this electric tow tractor.

1.1

Manufacturer

SINOLIFT

1.2

Manufacturer's type designation

QD-40XT

1.3

Drive

Battery

1.4

Operator type: hand, pedestrian, stand-on, seat-on, order-picker

Seat-on

1.5

Load capacity/rated load

Q (t)

4

1.7

Rated drawbar pull

F (N)

≥F

1000

1.9

Wheelbase

y (mm)

±1%

1231

2.1

Dead weight

kg

±3%

783

2.3

Axle loading, unladen front/rear

kg

±3%

279/504

3.1

Tyres

Pneumatic tire

3.2

Tyre size, front

Ø x w(mm)

3.50-5-6PR

3.3

Tyre size, rear

Ø x w(mm)

4.00-8-6PR

3.5

Wheels, number front/rear (x = driven wheels)

1/2x

3.6

Tread , front

b10 (mm)

±2%

245

3.7

Tread , rear

b11 (mm)

±2%

744

4.7

Height of overhead guard(cabin)

h6 (mm)

±1%

1232

4.8

Seat height relating to SIP/stand height

h7 (mm)

816/412

4.12

Coupling height

h10 (mm)

±2%

283/333/358/408

4.19

Overall length

l1 (mm)

±1%

1876

4.21

Overall width

b1/b2 (mm)

±1%

860

4.32

Ground clearance, centre of wheelbase

m2 (mm)

-5%

92

4.33

Load dimension b 12 × l 6 crossways

b 12 × l 6 (mm)

1447

4.35

Turning radius

Wa (mm)

≤Wa

1590

5.1

Travel speed, laden/unladen

km/h

± 10 %

7/13

5.5

Drawbar pull,laden/unladen

N

1000

5.6

Max. drawbar pull, laden/unladen

N

4000

5.7

Gradeability, laden/unladen

%

5.6/14

5.1

Service brake

Hydraulic

6.1

Drive motor rating

kW

4

6.3

Battery according to DIN 43531/35/36 A,B,C,no

Special case

6.4

Battery voltage/nominal capacity

V/Ah

24/280

6.5

Battery weight

kg

285

8.1

Type of drive control

AC

10.7

Noise

dB (A)

< 70
