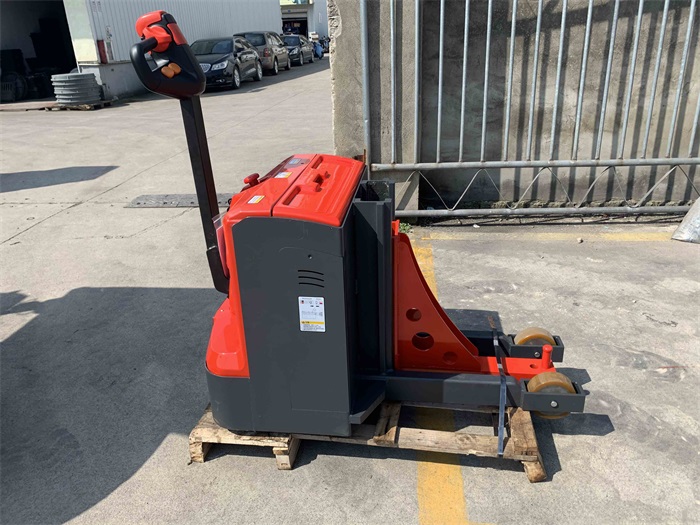

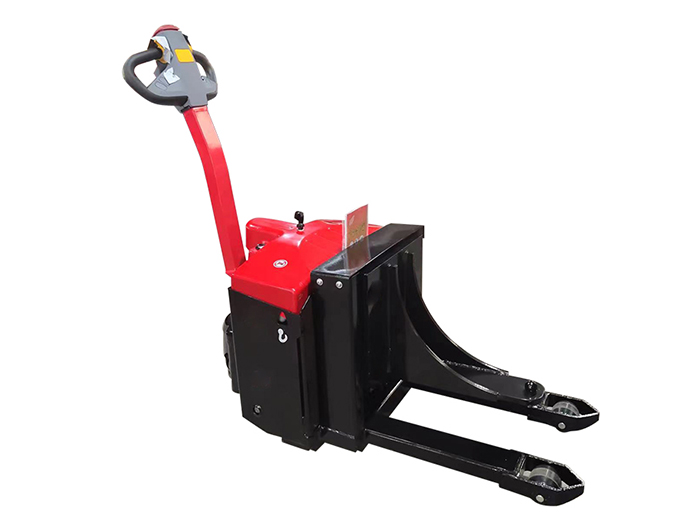

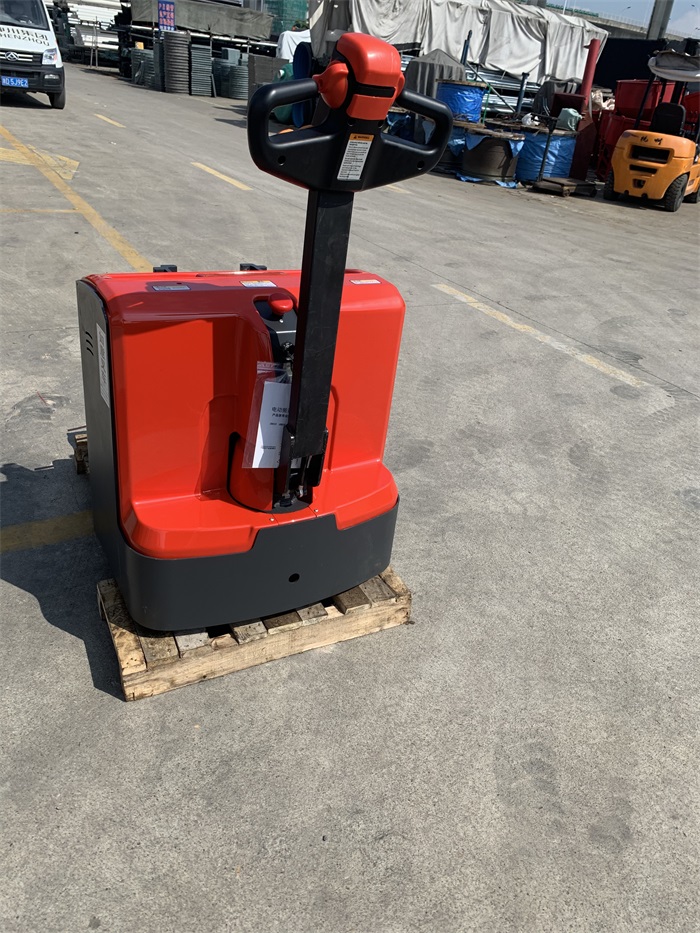

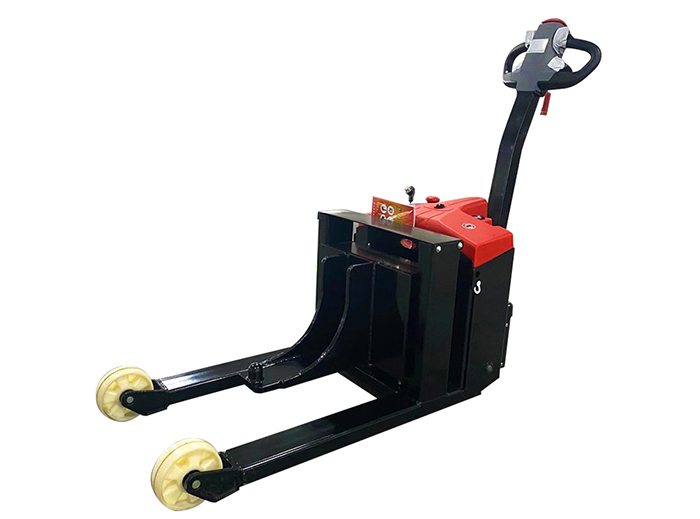

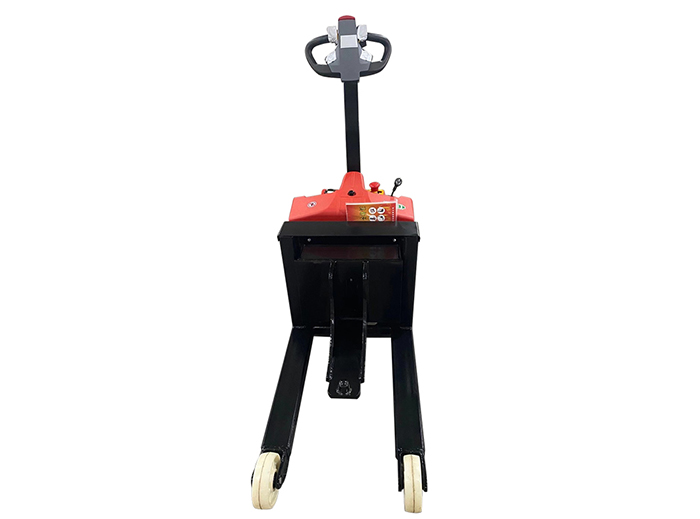

Name：EKP Walkie Electric A-frame Tow Tractor
Model：EKP
Product Introduction：EKP Electric A-frame Tow Tractor can lift and tow batch trolleys / A-frames up to 3000kg. It is equipped with a collision protection device on the driving part and behind the running wheels, since it is often used under rough conditions

1. Tow hook held in place by 4 masts and 12 bearings for maximum resistance and durability

2. Tiller arm and relevant drive wheel placed in the central part of the truck ensure the operator greater benefits in terms of safety, stability and manoeuvrability (steering angle 200°)

3. Spring-loaded steering system allows to maintain constant contact of the drive wheels with the floor, the pallet truck provides excellent stability and minimizes steering effort even when the pallet truck is fully loaded

4. Brushless traction motor with AC technology allows excellent efficiency and speed control on flat surfaces, uphill and downhill, and minor maintenance interventions

5. Maximum battery lifespan and efficiency

6. Button for slow functions

Model				EKP
Performance	Maximum load capacity		kg	3000
	load center	Q	mm	500
	Maximum lifting height	H3	mm	125
	Travel speed (without load)		km/h	5
	Travel speed (with load)		km/h	4
	Lifting speed (without load）		mm/s	50
	Lifting speed (with load)		mm/s	30
	Lowered speed (without load）		mm/s	30
	Lowered speed（with load）		mm/s	50
	Ascend slope ability （without load）		%	8
	Ascend slope ability（with load）		%	5
	Weight（with battery）		kg	600
Dimensions	Overall length of frame	L	mm	620 or customized
	Overall width of frame	B	mm	735
	Fork length		mm	customized
	Fork lowered height	S	mm	customized
	Minimum ground clearance		mm	10
	Minimum intersecting aisle width	Asts	mm	2000
	Minimum turning radius（without platform）	Wa	mm	1500
Tire	Front wheel		mm	130*55
	Drive wheel		mm	230*75
	Caster wheel		mm	130*55
	Wheel material			polyurethane
Electrical components	Drive motor type			AC series motor
	Rated output		kw	1.5
	Hoist motor type			DC series motor
	Rated output		kw	2.2
Battery	Voltage		v	24
	Capacity		ah	210
	Weight		kg	195
