Home >> Products >> SH-2DB-XSJ Passenger Electric Burden Carrier with Scissors Lift

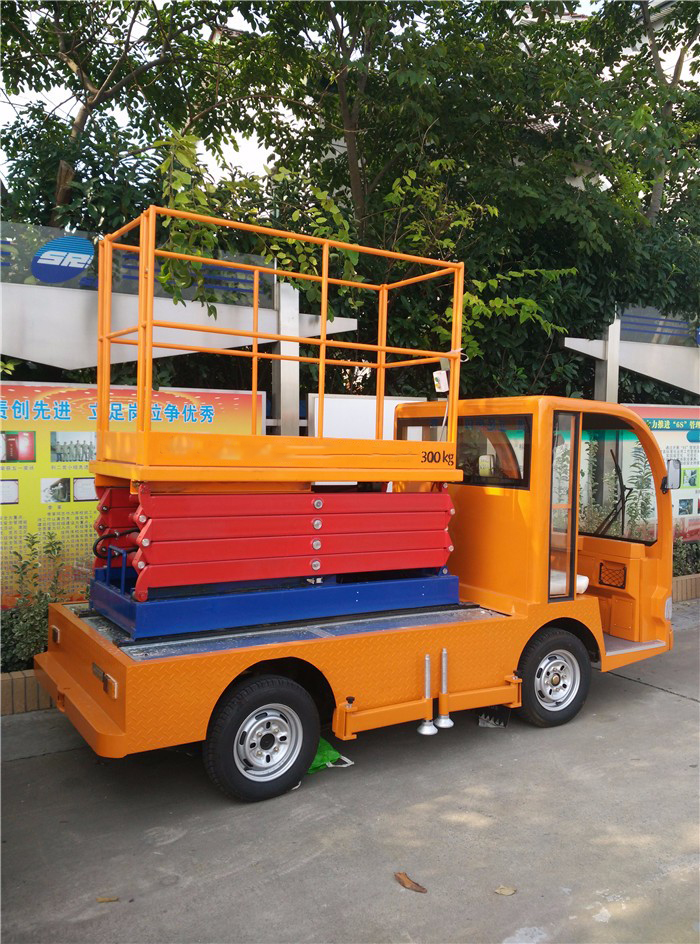

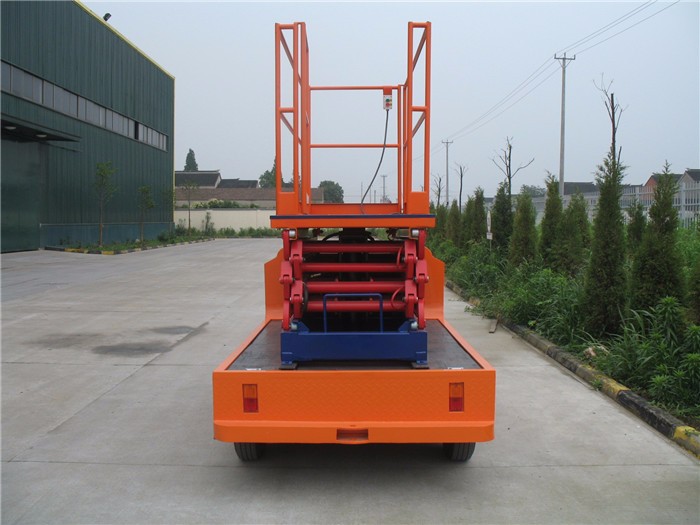

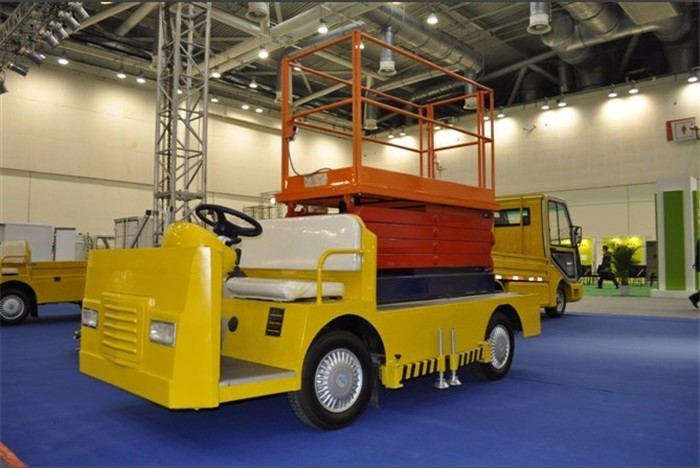

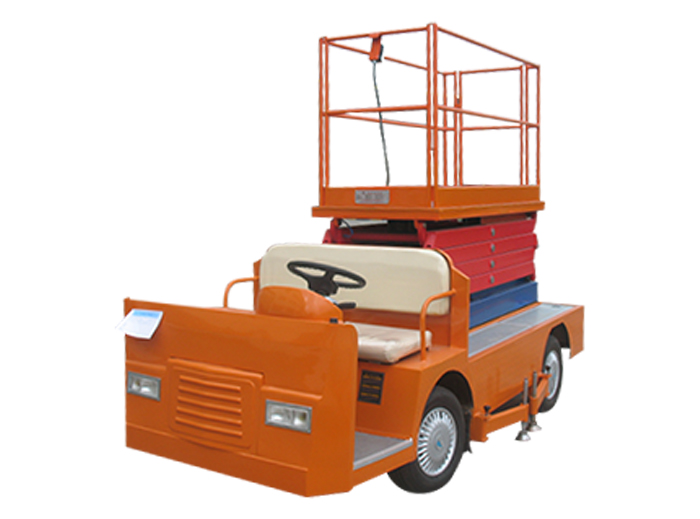

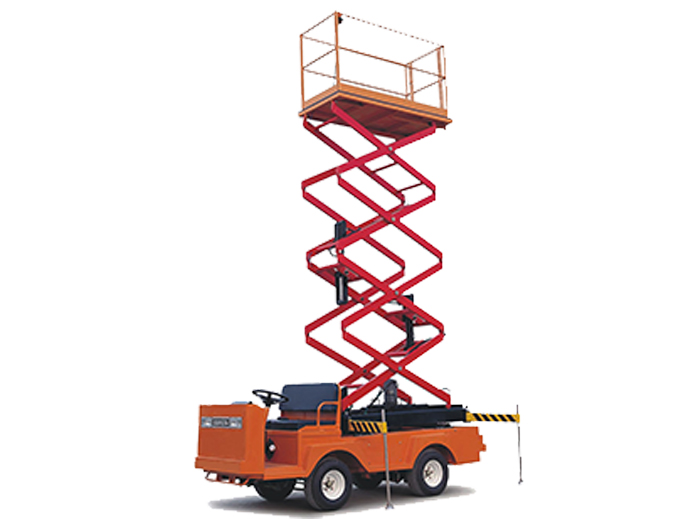

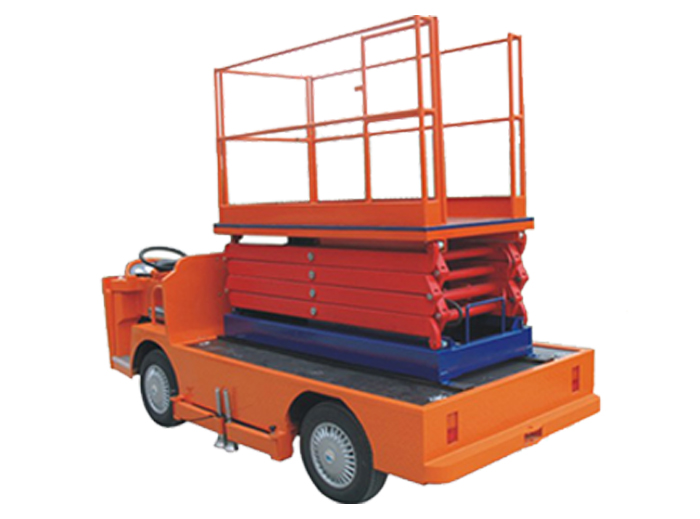

Name：SH-2DB-XSJ Passenger Electric Burden Carrier with Scissors Lift
Model：SH-2DB-XSJ
Product Introduction：It's based on standard electric industrial vehicle SH-2DB-XSJ and put a scissor lifter on the rear bed. It's suitable for high altitude operation like change the light on the ceiling, paint the ceiling, etc.

The SH-2DB-XSJ scissor lift vehicle by SINOLIFT can reach up to 6 feet high and features a lift capacity of 300kg. Equipped with an electric, zero-emissions, 48-volt powertrain, the vehicle seats can have two passengers. A single operator can deploy the platform in less than 60 seconds. With the lift detracted, the vehicle fits through most standard double doors. It travels at speeds up to 35km/h.

Model		SH-2DB-XS(J)
Max.Loading Capacity	kg	300
Passenger Capacity		2
Voltage	V	48
Motor Power	kw	3
Range(loaded)	km	60
Max.Speed	km/h	35
Min.Turning Radius	m	2.9
Climbing Ability(loaded)		10%
Overall Dimensions	mm	3415X1390X2150
Trailer Dimensions	mm	//
Max.Lifting Height	m	6
