Home >> Products >> SH-2DB-X Narrow Size Electric Burden Carrier

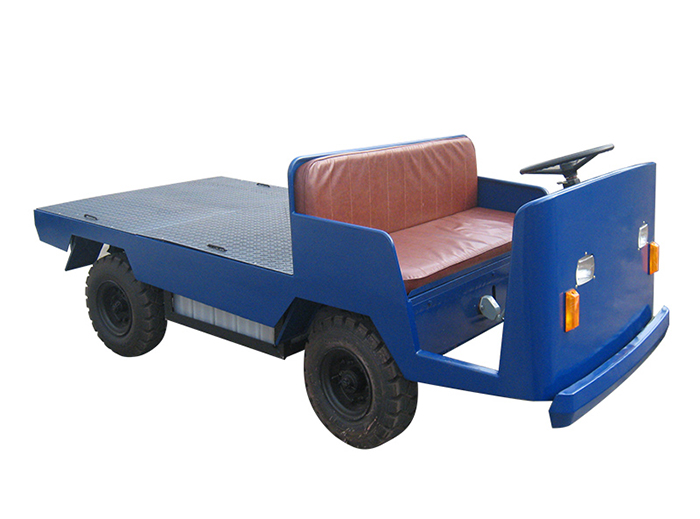

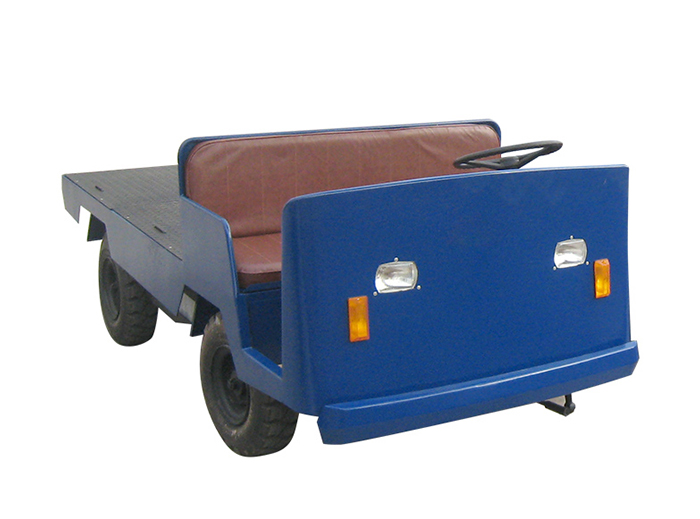

Name：SH-2DB-X Narrow Size Electric Burden Carrier
Model：SH-2DB-X
Product Introduction：Our trucks have a double platform, which makes them more efficient to carry maximum amount of lightweight goods. Also, their steering axle is designed in such a manner that it ensures constant road grip. Our electric platform trucks can be equipped with a ladder rack, tool boxes, tool cabinets, and a workbench and is an excellent choice for any maintenance application. Features like seat interlock, high pedal disable, and mechanical or hydraulic brakes provide maximum safety during daily operations

• Chassis fabricated from rolled channels suitably gusseted, boxed and reinforced with plates to give adequate strength.

• Leaf spring suspensions with shock absorbers on front and rear axles ensures reduced road shocks to both driver and load carried.

• Heavy duty automotive differential rear drive with telescopic universal point.

• Compact motor and gear box assembly mounted on anti-vibration pads.

• Large diameter hydraulic and parking brakes.

• Heavy duty swiveling steering axle ensures all wheel contact on rough road.

Model	SH-2DB-X
Rated Load Capacity (Kg)	2000
Platform Size (L*W)	1630*1150
Min. Height (mm)	680
Outline Size (L*W)	2650*1150
Front Wheel Thead (mm)	917
Rear Wheel Thead (mm)	981
Wheel Base (mm)	1370
Ground Clearance (mm)	120
Drive Speed without Load (KM/h)	15
Drive Speed with Load (KM/h)	12
Min. Turning Radius (mm)	3400
Parking Brake distance (M)	2.5
Max. Gradeability (%*m)	5*12
Driving Motor (KW)	2.5
Driving Motor Rated Current (A)	78
Battery Voltage (V)	40
Battery Capacity (AH/5hr)	250
Tire	600-9
Controller	KP2-150
General Transmission Ratio.	7.51
