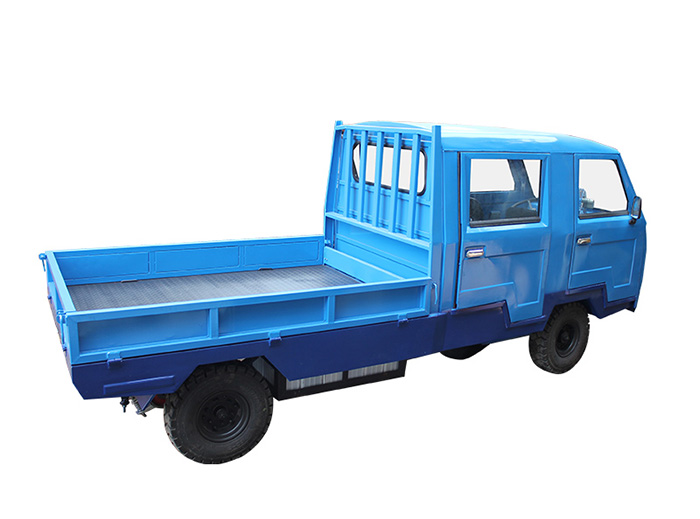

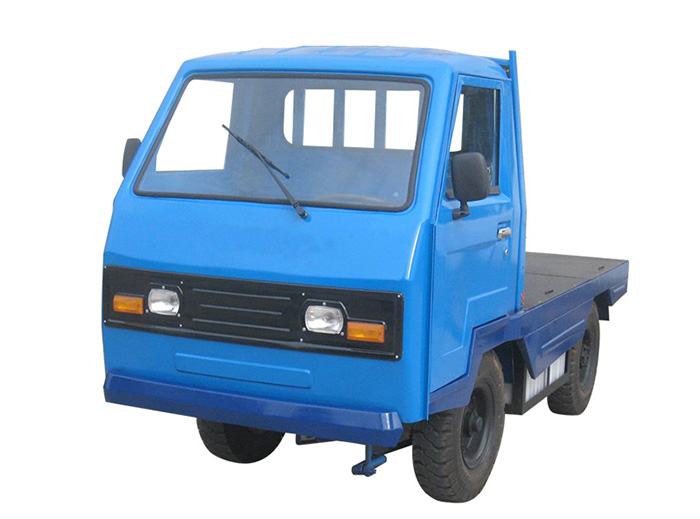

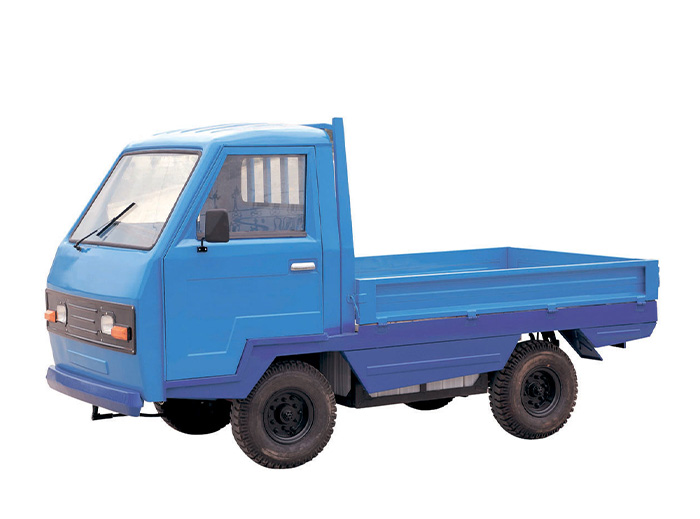

Name：SH-2DB-M Standard Electric Burden Carrier SH-(3DB,4DB,5DB)-M
Model：SH-2DB-M SH-(3DB,4DB,5DB)-M
Product Introduction：SINOLIFT Platform Trucks are widely used for transporting non-palletized loads in big industrial plants, warehouses, post offices, hospitals, etc.

• Stepless electronic MOSFET speed control for jerkless transmission and increased battery efficiency.

• Low slung step on foot-board with ample leg room and board cushion seats for driver comfort.

• All controls ergonomically positioned for ease of driving.

• Slide out battery units for quick and easy battery changing.

• Snap open covers for easy inspection and maintenance of battery.

• Battery discharge indicator provided to ensure pre- emption of over discharge thus protecting the battery and ensuring long productive life of battery

Model	SH-2DB-M	SH-3DB-M	SH-4DB-M	SH-5DB-M
Model	SH-2DB-M	SH-3DB-M	SH-4DB-M	SH-5DB-M
Rated Load Capacity (Kg)	2000	3000	4000	5000
Platform Size (L*W)	2180*1350	2400*1350	2240*1400	2500*1400
Min. Height (mm)	700	820	820	720
Outline Size (L*W)	3540*1350	3695*1350	3540*1400	3820*1400
Front Wheel Thead (mm)	1060	1070	1070	1070
Rear Wheel Thead (mm)	1085	1115	1115	1115
Wheel Base (mm)	1800	1900	1900	2185
Ground Clearance (mm)	120	140	140	120
Drive Speed without Load (KM/h)	12	12	18	18
Drive Speed with Load (KM/h)	10	10	15	11.5
Min. Turning Radius (mm)	4000	4500	3900	4100
Parking Brake distance (M)	2.5	2.5	2.5	2.5
Max. Gradeability (%*m)	5*12	5*12	5*12	5*12
Driving Motor (KW)	2.5	5	5	6.3
Driving Motor Rated Current (A)	78	139	139	173
Battery Voltage (V)	40	48	48	48
Battery Capacity (AH/5hr)	250	308	330	440
Tire	700-9	700-12	700-12	700-9
Controller	KP2-150	QPK-41/48N	QPK-41/48N	QPK-41/48N
General Transmission Ratio.	7.51	11.32	11.32	11.32
