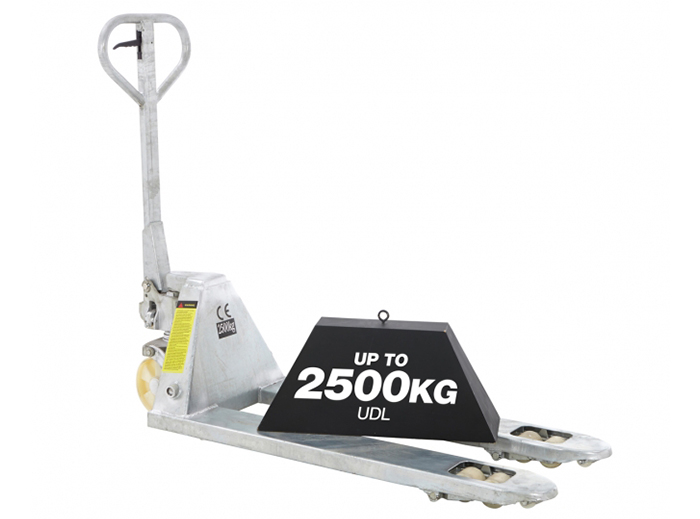

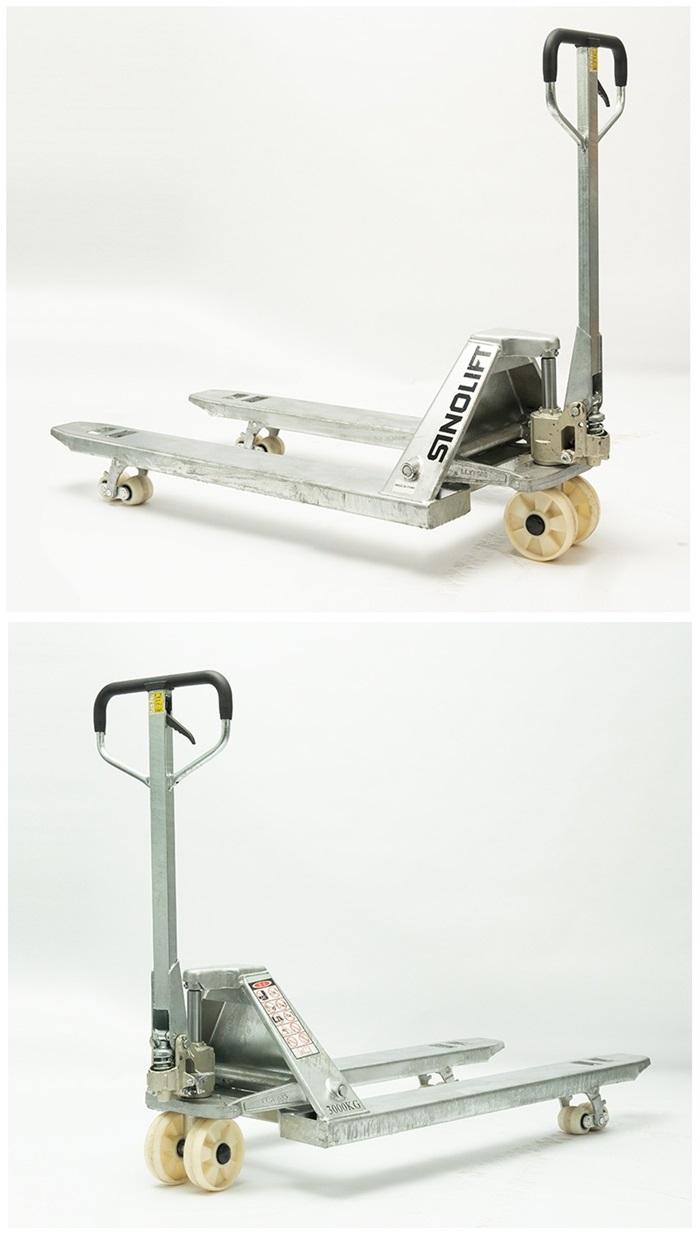

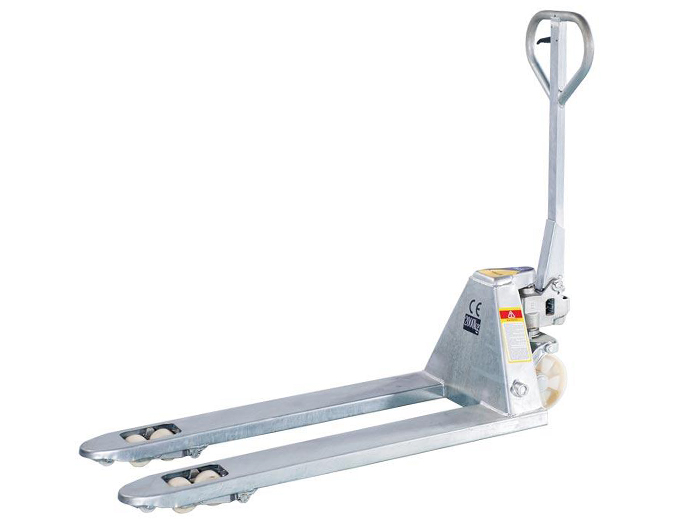

Name:ACG series Galvanized Hand Pallet Truck
Model:ACG
Product Introduction:The SINOLIFT Galvanized Pallet Truck is ideal for cold, clean or corrosive environment use. Commonly used by the food, dairy and pharmaceutical industries, the Trucks feature nylon steer wheels and nylon load rollers as standard. The chassis - including the fork frame, wheel forks, push rods and handle - and the integral leak-free pump mechanism are all galvanized. The piston and valve are also chrome plated to ensure that the Truck is totally resistant to moisture.

Galvanised Pallet Trucks


For use in corrosive environments, cold room or clean room applications

Suitable for hygienic and food processing applications

Galvanised chassis

Chrome plated piston and valve

Nylon steer wheels and rollers

Ergonomic push and pull lever

Galvanised leak-resistant pump

Hot dipped galvanised finish

Approx. Weight: 85kg

Thanks to full galvanizing, the pallet truck type ACG remains corrosion-resistant even in bad weather. The pump element of the galvanized pallet truck is additionally protected against the effects of weather. As standard, the pallet truck is delivered with load-bearing nylon fork and fork rollers and is equipped with input and output rollers for easier pallet pick-up.

A metered, stepless lowering of the pallet truck is possible on the handle.



Model

ACG

Capacity:

2500kg

Length of Forks:

1000mm/1150mm

Width over Forks / Fork Width:

540mm/680mm

Lowered Fork Height:

85mm

Raised Fork Height:

205mm

Wheels:

Nylon

Weight:

85kg
