Home >> Products >> NP50 Heavy Duty Hand Pallet Truck

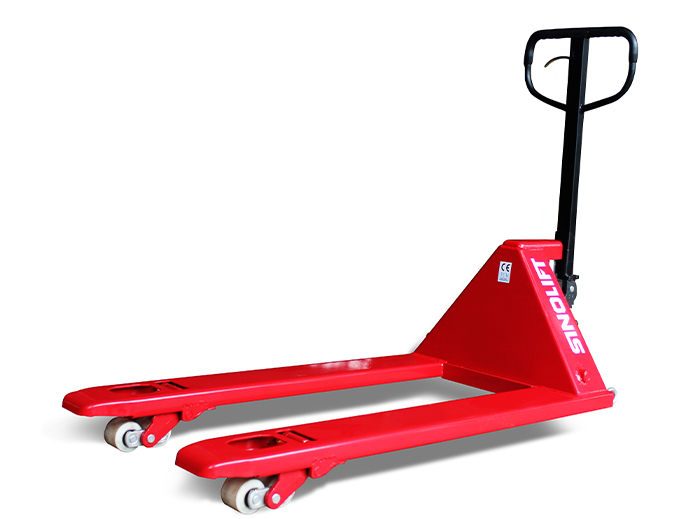

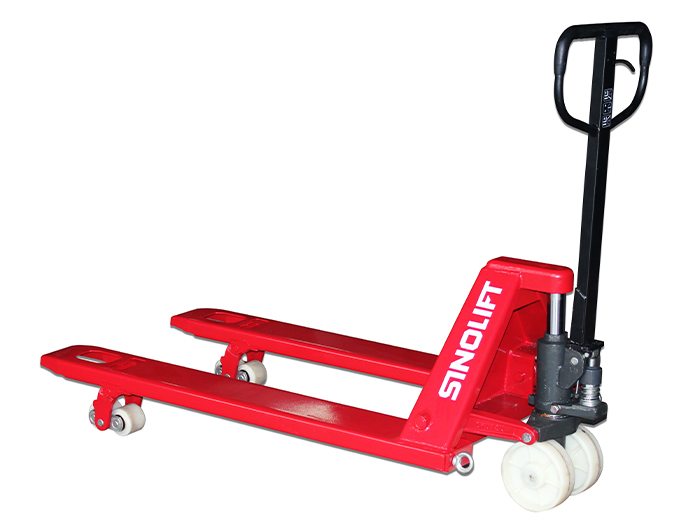

Name：NP50 Heavy Duty Hand Pallet Truck
Model：NP50
Product Introduction：1. Heavy duty pump and steering wheel reduces the actural pully effort required. 2. Large piston to avoid large effort force. 3. Its independent oil storage room ensures good leakproof 4. 210 degrees steering angle allows maximum maneuverability. 5. Available Ex Stock in special sizes

Features of Pallet Hand Truck

· Simple and Easy Operation
Lifting movement via collapsible foot pedal or 3 function handle control.
Sensitive lowering through sinking valve
Hand push drive
Overload protection via pressure valve

· Safe Operation and secure Working Conditions
Stable chassis with 2 or 4 frame rollers and 2 steering rollers.

· Long Service Lift.
Robust construction.
Hard chromium plated frame.
Hardened chromium plated ram.

· Effortless Movement.
Ball bearing non-marring rollers.
Polyurethane rollers.

· Tapered forks

MODEL		NP50-510	NP50-712
Rated Capacity (Kg)		5000	5000
Width over forks (mm) *1	W	520	685
Fork length (mm) *1	L	1070	1220
Min. Fork Height (mm)	H2	80	80
Max. Fork Height (mm)	H1	200	200
Steering Wheel (mm) *2	A	200x62	200x62
Load Wheel (mm) *3	B	78x70 (Tandem)	78x70 (Tandem)
Weight (kg)		80	83
Under Clearance (mm)		40	180
Fork width (mm)	W2	160	160
Width inside forks (mm)		200	365
Stroke length (mm/stroke)		10	10
Overall Height (mm)		1248	1248
Overall Length (mm)		1500	1570
Steer Angle		210 deg	210 deg
Drive Unit Length (mm)		400	400
