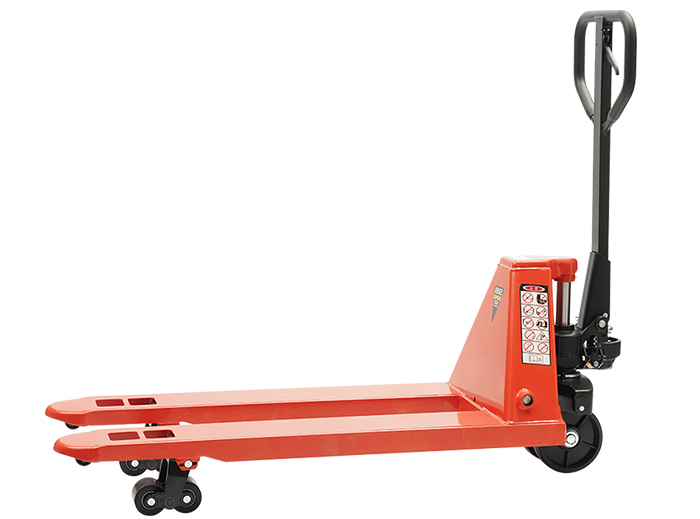

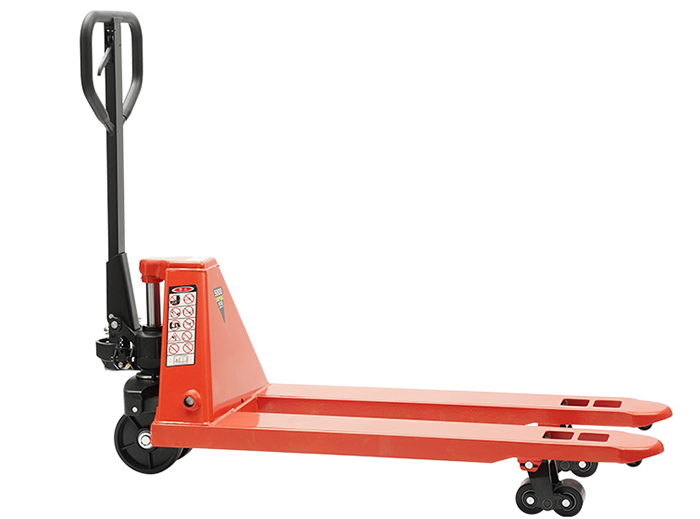

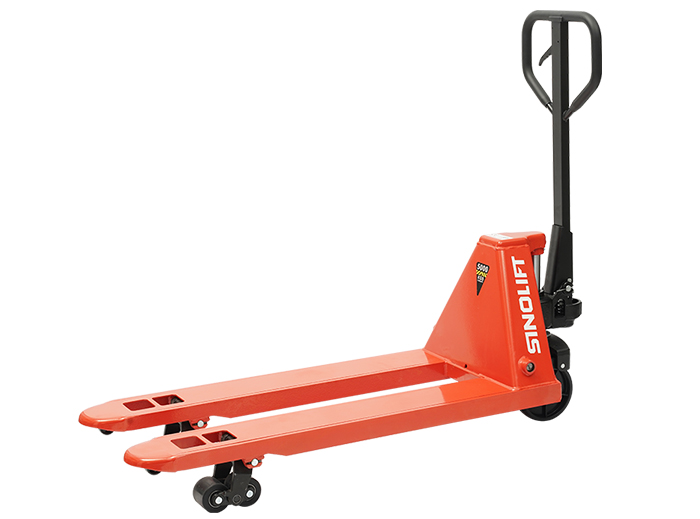

Name:CBK100 Heavy Duty Hand Pallet Truck
Model:CBK100
Product Introduction:Robust dual-channel reinforced structural steel frame that can withstand loads of up to 10 tons! Solid steel pump base and extra heavy duty pump with high pressure seals and hardened chrome pistons for years of use. Adjustable solid steel tie rods maintain the truck's normal rolling ability. A steel steering wheel and dual steel load rollers ensure safe movement of loads in the harshest environments.

1. Powder coat finish

2. Solid steel fork and chassis with reinforced frame and gussets

3. Dual Nylon Steering Wheels and Roller Load Wheels

4. Prong roller system for smooth transition in and out of pallets

5. Articulated steering shaft

6. Contoured teardrop handles and friendly levers provide operator comfort and excellent load maneuverability.

7. Excellent hydraulic pump unit with low maintenance costs

8. Reliable leak-proof hydraulic system

9. With a 180-degree turning radius, it is easy to maneuver.

Model

CBK100-511

CBK100-712

Rated Capacity (kg)

10000

10000

Min. Fork Height (mm)

90

90

Max. Fork Height (mm)

200

200

Width inside forks (mm)

200

200

Fork length (mm)

1150

1220

Width over forks (mm)

550

685
