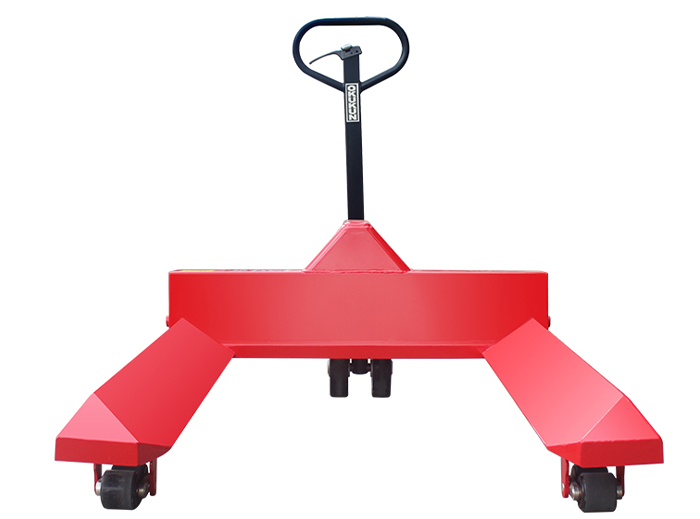

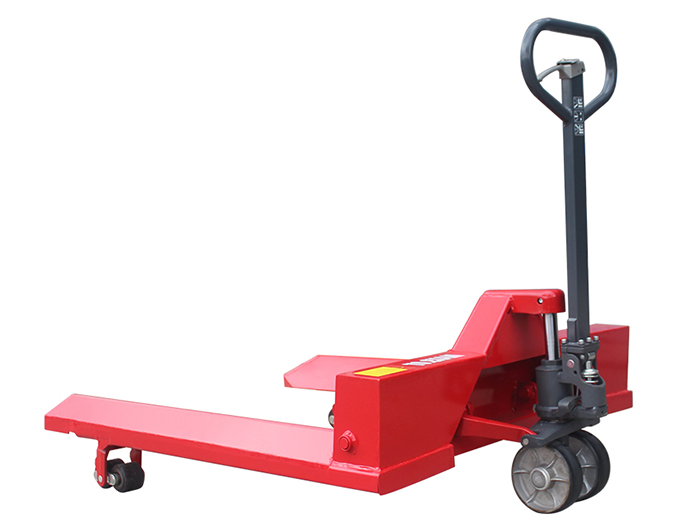

Name:NPR series Roller Hand Pallet Truck
Model:NPR

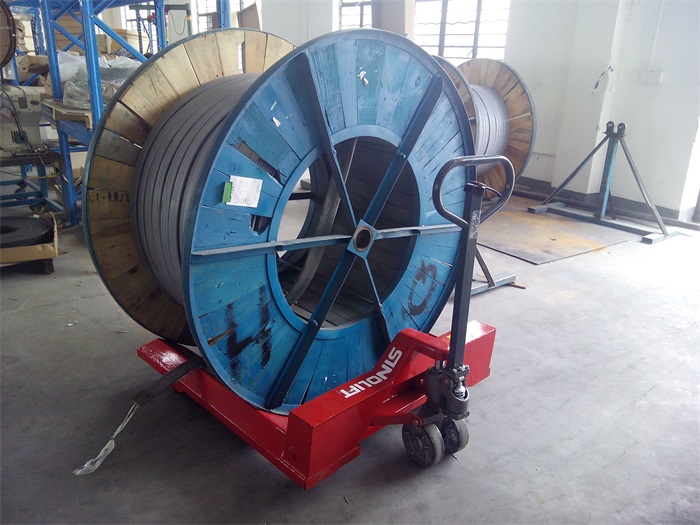

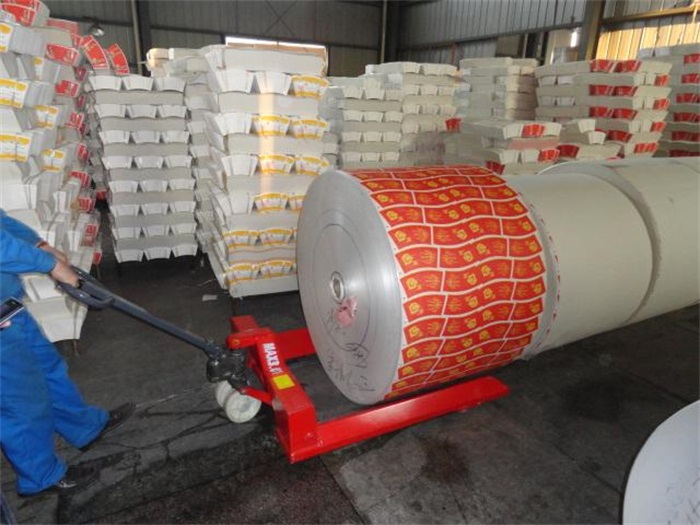

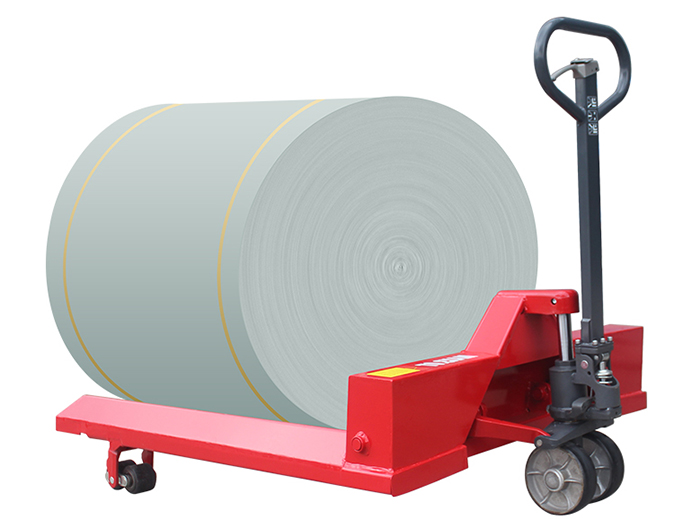

Product Introduction:For handling cylindrical loads where the lifting operation is achieved without pallets cylindrical loads can be lifted directly from the floor, transported, and deposited in their un-palletized state. This Roll Pallet truck is mainly designed for carrying horizontal transport loads such as rolls, reels, cable drums etc.

Configuration attributes:

1, pump and oil cylinder axle, both plating hard chrome treatment, and mining dual import oil seal protection, not only durable, leakage prevention effect is greatly improved

2, the fuselage all uses the high tension steel plate pressure to form, after the powder baking paint treatment, durable is not easy to rust

3, fork plus double side reinforcement, full strength with the front end of the guide plate is more lightweight and smooth

4, the use of high-quality bearings, according to the requirements of the site can be equipped with PU or nylon material wheels, to achieve without scratching the floor and prevent degumming requirements

5, the main joints are equipped with advanced bushing (bushing) and in each important steering part of the filling of butter mouth, maintenance easy to make the machine life longer

Model

NPR20S

NPR20M

NPR20L

NPR20SL

Capacity Q

kg

2000

Reel diameter

mm

400-600

600-800

800-1200

1200-1600

With overall forks B

mm

760

850

1000

1150

Steering wheel

mm

Φ200x50

Load roller Single

mm

Φ82x93

Load roller Tandem

mm

Φ82x70

Fork length l

mm

800/900/1000/1100/1150/1220
