Home >> Products >> HL20S HL25S Stainless Steel Hand Pallet Truck

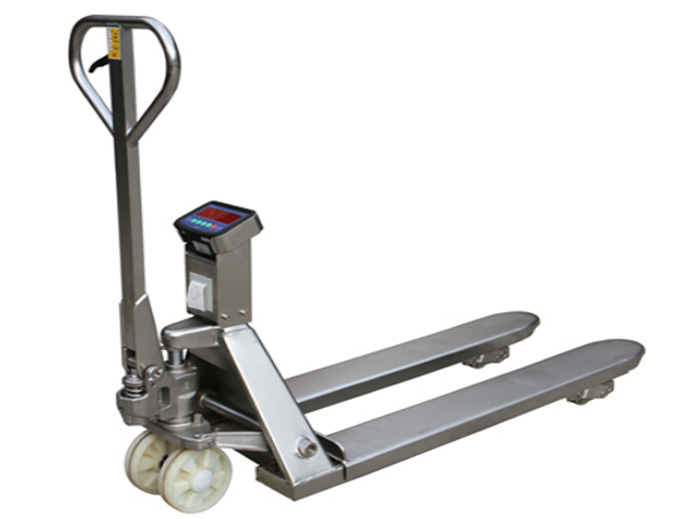

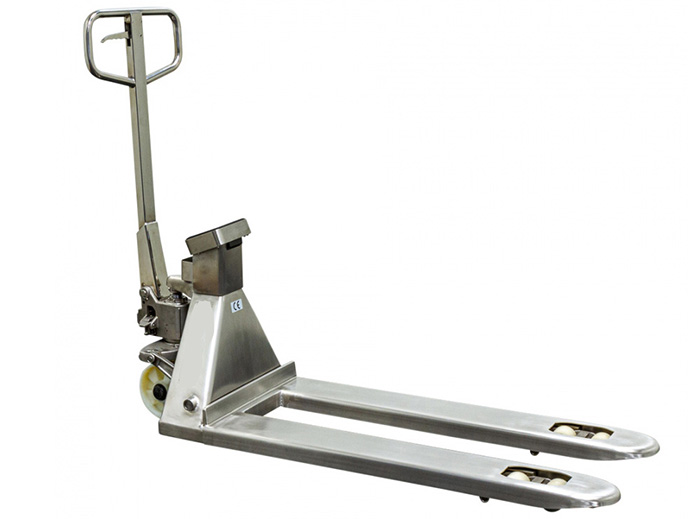

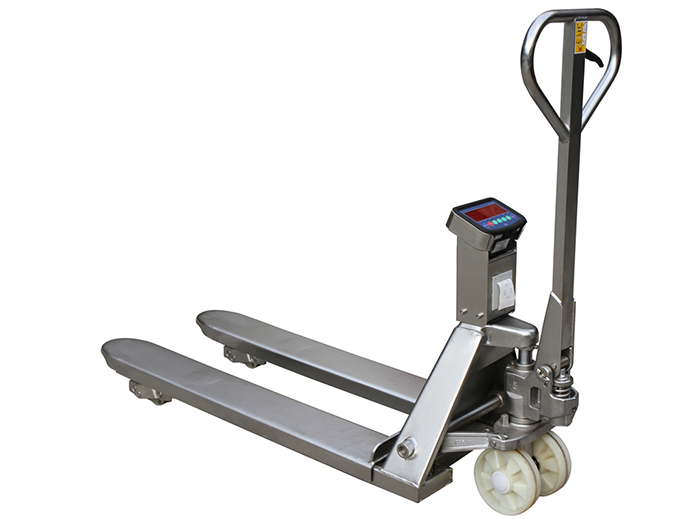

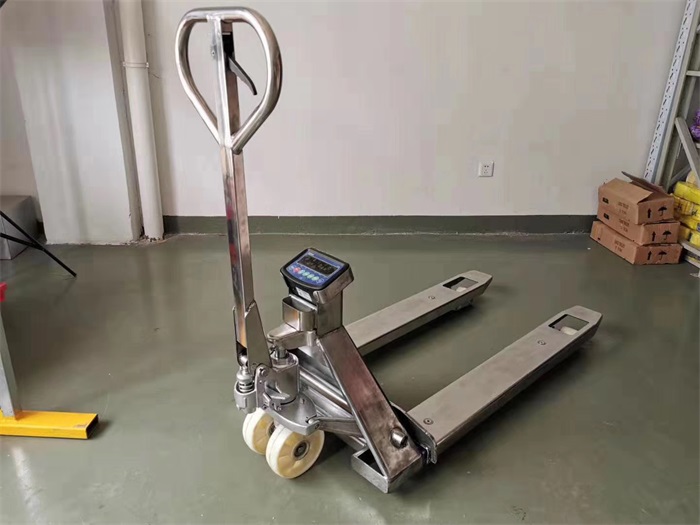

Name：HL20S HL25S Stainless Steel Hand Pallet Truck
Model：HL20S HL25S
Product Introduction：The stainless steel pallet truck with scale allows you to weigh your load on the spot for maximum efficiency.

Applications for Stainless Steel Manual Pallet Jack with Scale:

• Clean-room or cold-room environments

• Corrosive chemical environments

• Freezers or Coolers with temperatures down to -10 degrees F

• Requires frequent wash down

• Food environments

Features & Benefits of Stainless Steel Manual Pallet Jack with Scale:

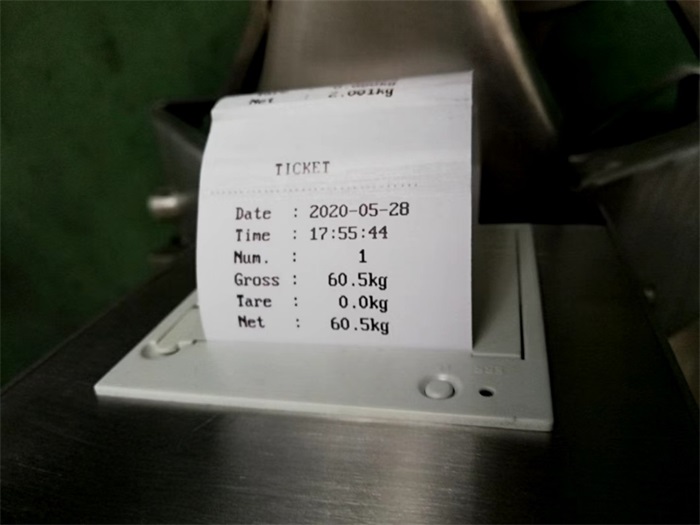

• Includes built in scale (battery operated).

• 100% stainless steel pump, handle, frame and components.

• Stainless steel, one-piece, steel formed channel steel, heavy duty frame offers lightweight strength.

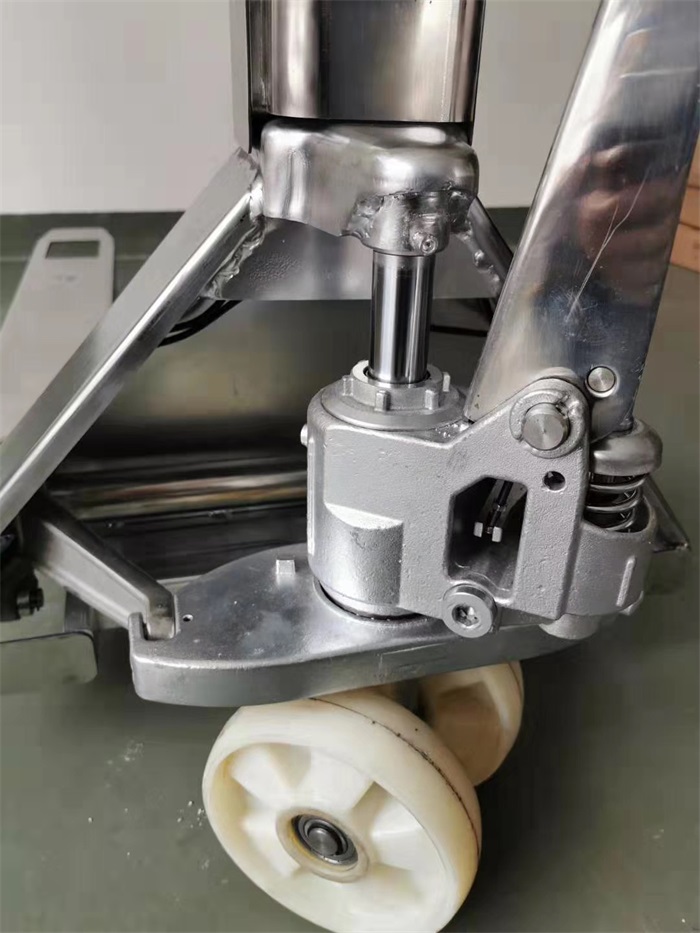

• Stainless steel hydraulic pump with special lowering valve allows for a controlled rate of descent.

• Stainless steel, ergonomically designed, cushioned, spring-a-matic handle with three position (raise/neutral/lower) control handle. Free of pinch points.

• 210 degree pivot action for easy maneuverability.

• Pallet truck features reinforced forks with tapered ends allow for easy pallet entry.

• Polyurethane wheels and rollers for easy rolling.

• Robotic welds throughout.

• Grease fittings and bushing at all major pivot and contact points for easy maintenance.

Model				HL20S (metric)	HL20S (imperical)	HL25S (metric)	HL25S (imperical)
Material				Stainless steel	Stainless steel	AC stainless	AC stainless
Capacity	Q	kg	lbs	2000	4400	2500	5500
Fork height	h13-h14	mm	in	80-205	3.1-8	80-205	3.1-8
Steering wheel	Øxw	mm	in	φ180x50	7x2	φ180x50	7x2
Single load roller	Øxw	mm	in	φ74x93	2.9x3.6	φ74x93	2.9x3.6
Tandem load roller	Øxw	mm	in	φ74x70	2.9x2.75	φ74x70	2.9x2.75
Size of fork	sxe	mm	in	160x60	6.3x2.36	160x60	6.3x2.36
Width over forks	b1	mm	in	550/680	21.6/27	550/680	21.6/27
Fork length	l	mm	in	1150/1220	45/48	1150/1220	45/48
Battery				DC 6v/4.5ah	DC 6v/4.5ah	DC 6v/4.5ah	DC 6v/4.5ah
Charger				100V-240V	100V-240V	100V-240V	100V-240V
N.W		kg	lbs	106/108	233/238	122/124	268/273
