Home >> Products >> 2.5 Ton 3.0Ton Stand-on Electric Reach Truck

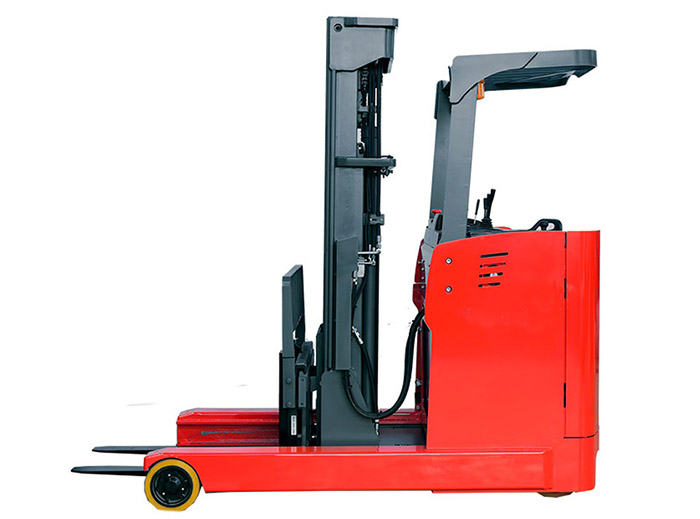

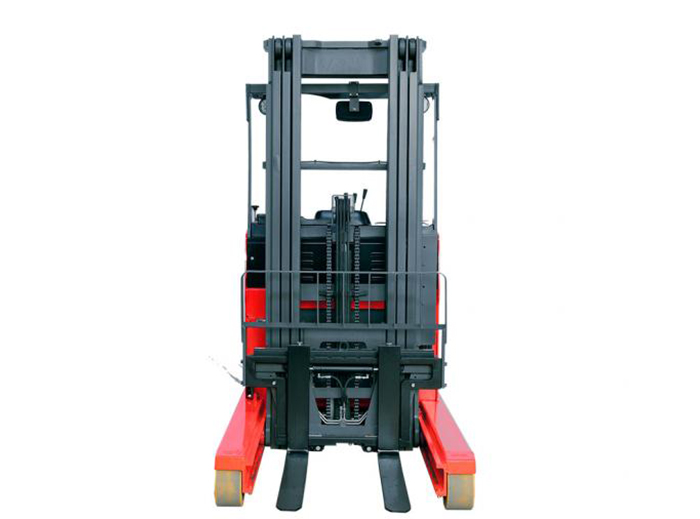

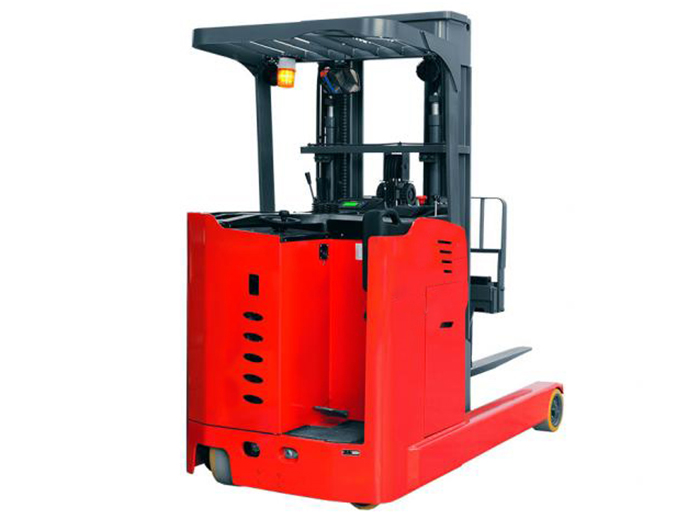

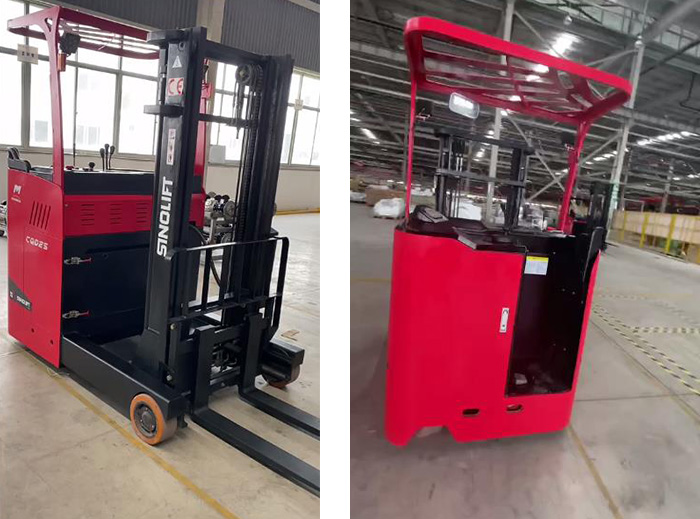

Name：2.5 Ton 3.0Ton Stand-on Electric Reach Truck
Model：CQD25F CQD30F
Product Introduction：Reach trucks are designed for narrow aisle storage applications with smooth, even flooring such as: freezer/refrigerated storage, warehouses and distribution centers.

A reach truck is a smaller vehicle than the forklift, allowing it to remain much more nimble. It has a slimmer chassis and holds loads closer to its wheelbase, letting it perform well in warehouses with narrow aisles and tighter spaces. Instead of a counterbalance, a reach truck has two stabilizing outer legs that distribute the load weight.

Although some models allow a forward stance, the operator usually sits sideways, allowing maximum comfort and maneuverability. Reach trucks include several features to enhance visibility for operators. The cab might tilt to help the driver get a better view or feature an open overhead guard. Many reach trucks come with a camera, allowing the operator to see what' s happening above their head on a video screen.

Reach trucks can usually handle a smaller capacity than a traditional counterbalance forklift. Besides working in narrow spaces, the other advantage of a reach truck is its maximum height.

Manufacturer		SINOLIFT	SINOLIFT
Model		CQD25F	CQD30F
Power type		Battery	Battery
Operate type		Stand on	Stand on
Service weight（incl.battery）	kg	3300	3400
Load capacity	Q(kg)	2500	3000
Load center	C(mm)	500	500
Lift height	h3(mm)	3000	3000
Fork size	l/e/s(mm)	1070/100/45	1070/125/45
Front overhang	x(mm)	185	185
Turning radius	Wa(mm)	1995	2192
Max.gradeability		10%	10%
Traveling speed, laden/unladen	km/h	9/10	8/10
Lifting speed,Laden/unladen	mm/s	240/320	220/320
Lowering speed,Laden/unladen	mm/s	340/290	340/290
