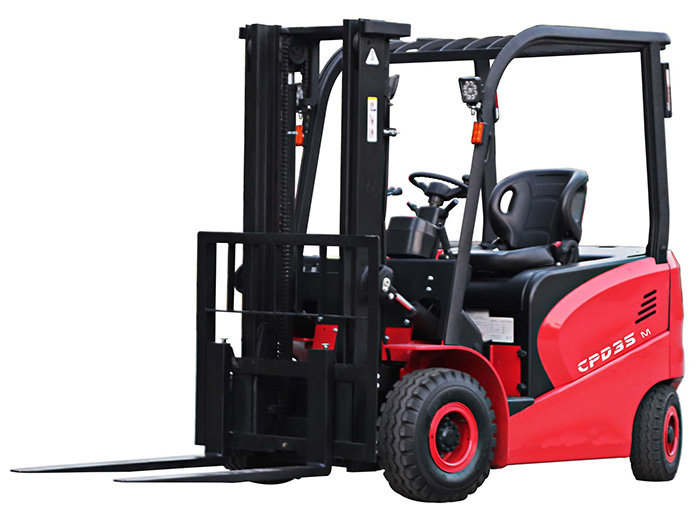

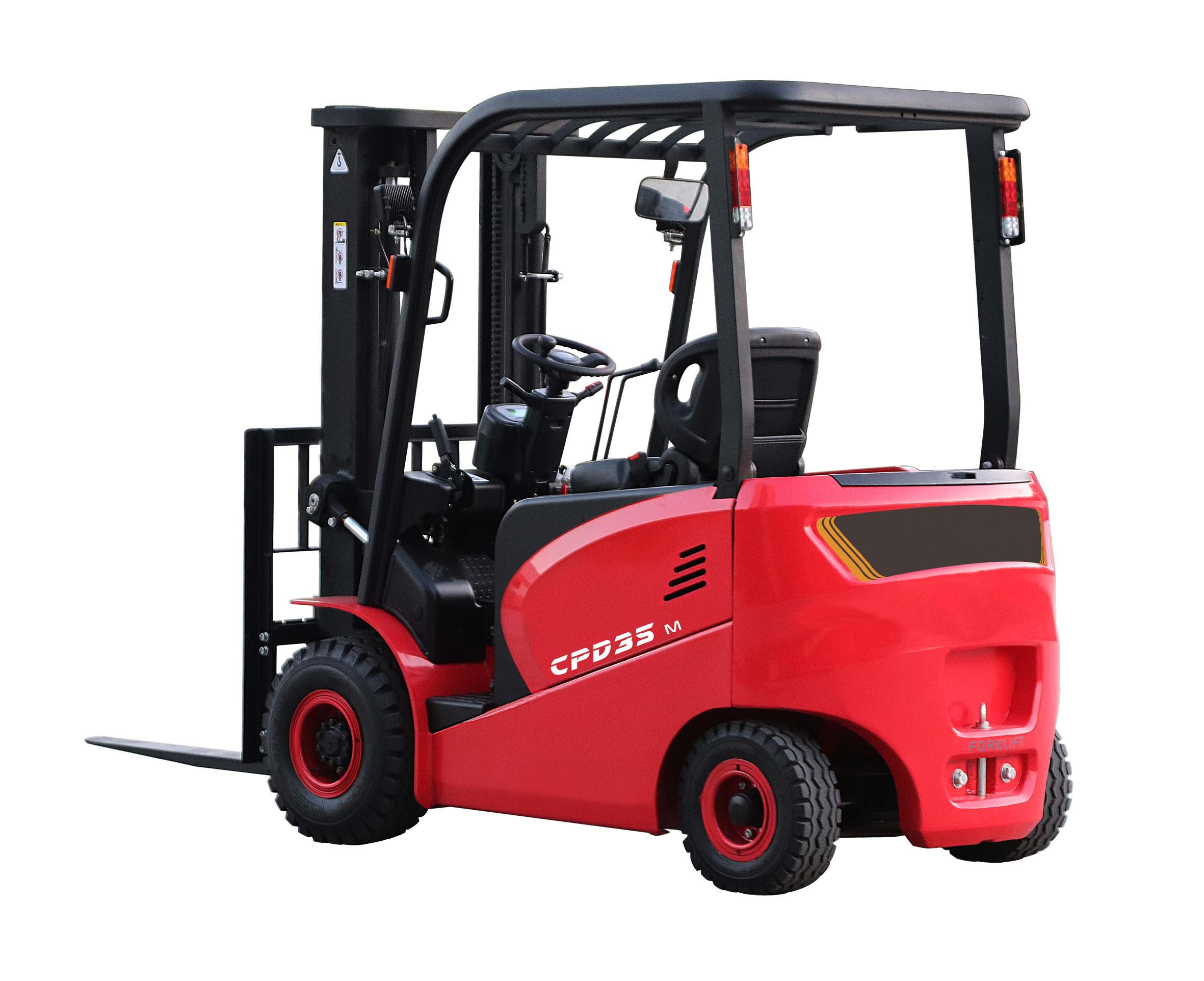

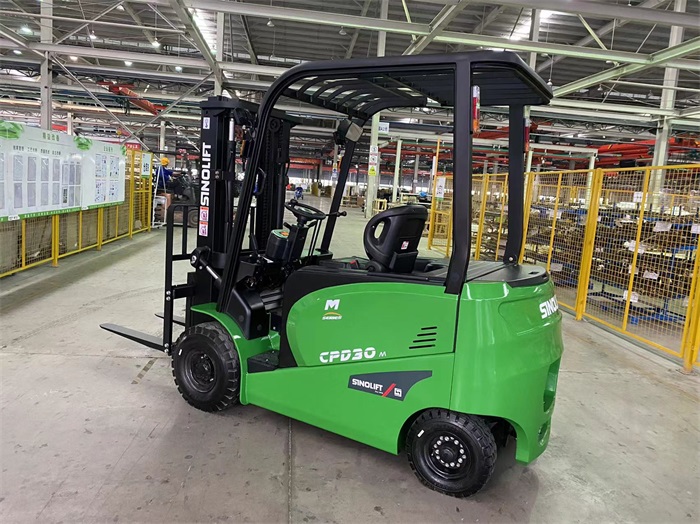

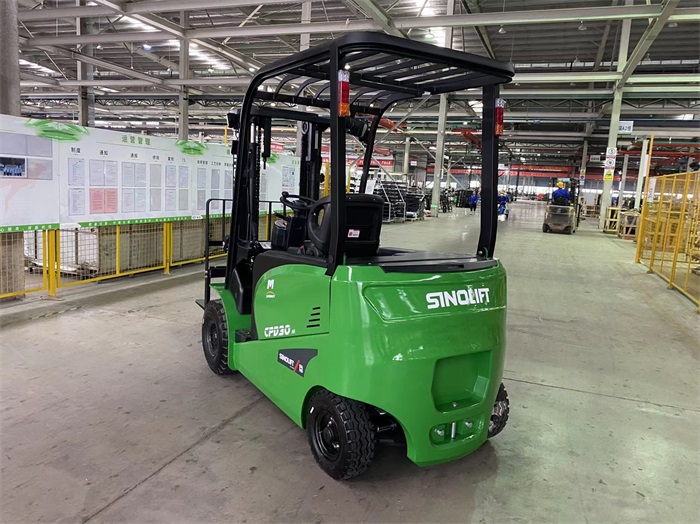

Name：3 Ton Electric Forklift Truck
Model：CPD30M
Product Introduction：Electric forklifts produce zero emissions. That's right: none. So, if you opt for green electricity, you can drastically diminish your carbon footprint. Even after your truck’s best years you can minimise its impact on the environment.

Characteristics
• SINOLIFT 3T electric counterbalance forklift trucks have gained ISO9000 certification and CE certification.
• This forklift is installed with AC walking controller and AC motor that own good performance. It adopts domestic famous high performance AC motor and imported US CURTIS AC controller that are of high quality, reliability and durability.
• Our 3 ton electric forklifts generate almost no noise while operation. Low-noise gear oil pump, hoisting noise and traveling noise is ultimately reduced. They are more eco-friendly.
• SINOLIFT electric counterbalance forklift truck is of high reaction sensitivity. Accelerator is adopted for highly efficient working.
• Our company owns a technical development team who pursuits the best cost-effective products and provides high quality and timely service.
• 3 ton electric forklift possesses compact body structure. It is simple and convenient to operate.
• The getting-on pedal and suspending seat can reduce drivers' fatigue and make them feel more comfortable.
• Our company provides 24 hours after-sales service and a full range of accessories for electric counterbalance forklift trucks.

S No.	Capacity		3000kg
1	Power Source		Electric with Power Steering
2	Battery and battery charger		Suitable Battery of reputed make with test certificate and battery charger
3	Drive Motors		AC motors with manufacturer’s test certificate
4	Tyres		Solid
5	Brakes		Hydraulic/Wet disk brake
6	Length to face of forks		Maximum 2600mm
7	Turning Radius		2500mm or less
8	Travel Speed	Laden	Min 10 km/h
		Unladen	Min. 10km/h
9	Gradeability	Laden	Min 10%
		Unladen	Min 15%
10	Tilt Angle	Forward	5-6 degree
		Backward	10-12 degree
11	Mast Type		Suitable to have free lift of 1000mm or more
12	Maximum Fork Height (MFH)		3000mm
