Home >> Products >> TLDScale Hand Pallet Truck

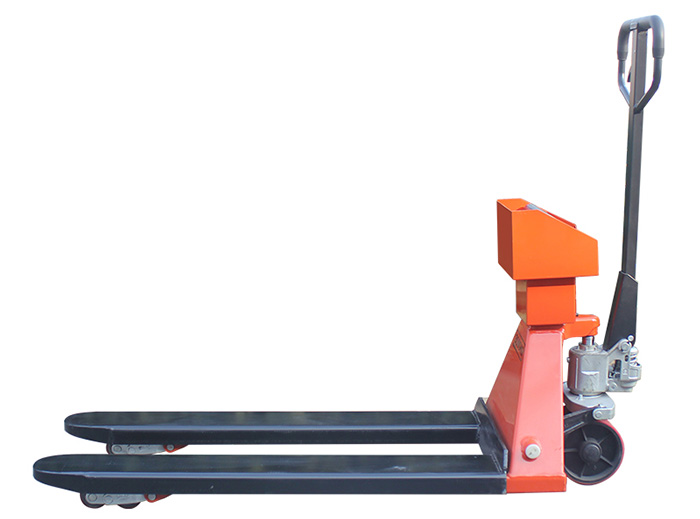

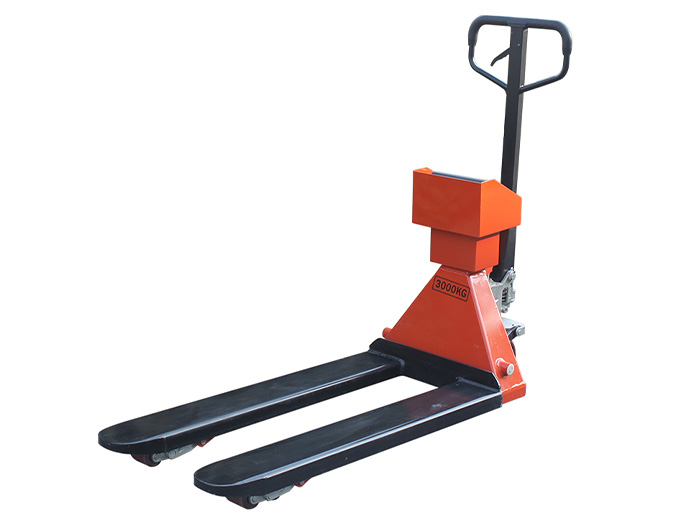

Name：TLDScale Hand Pallet Truck
Model：TLD
Product Introduction：Our TLD Lifter with scale is a mobile high precision weighing truck allowing your operators to weigh pallets and containers during loading and transport.

Developed for industrial applications and is protected against water, dust and shocks.
Legal for trade version available on request.
Built in printer for printing weight data on site is available on request.
Greasable bushings ensure a long service life.
Angled high strength polymer handle for best ergonomic grip.
This product has been environmentally declared.

Model	TLD XK3190-A6	TLD(Casting) XK3190-A12+E
Load capacity	2500kg	2500kg
Net weight	110kg	110kg
Min. fork height	80mm	80mm
Max. fork height	195mm	195mm
Fork length	1150/1220mm	1150/1220mm
Overall Width	540/680mm	550/685mm
Fork width	160mm	160mm
Fork inner width	220/360mm	230/365mm
Big wheel diameter	ø180*50mm	ø180*50mm
Small wheel diameter	ø70*70mm	ø70*70mm
Power supply	Build in rechargeable battery	dry battery
Min. measuring unit	0.5kg	0.5kg
Weighing precision	±1%	±1%
