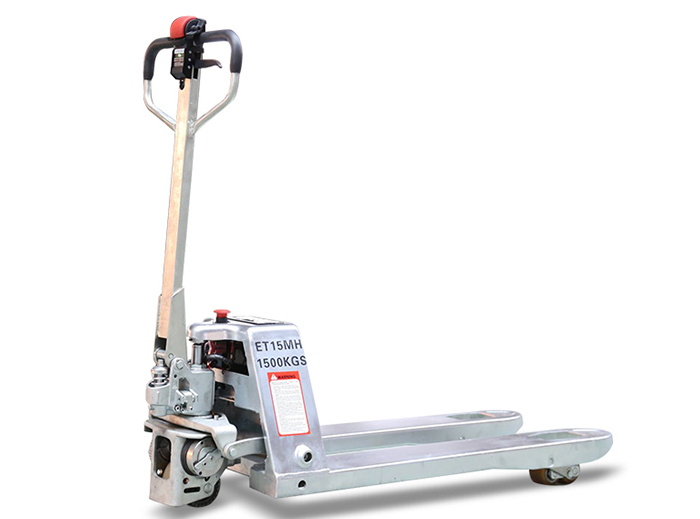

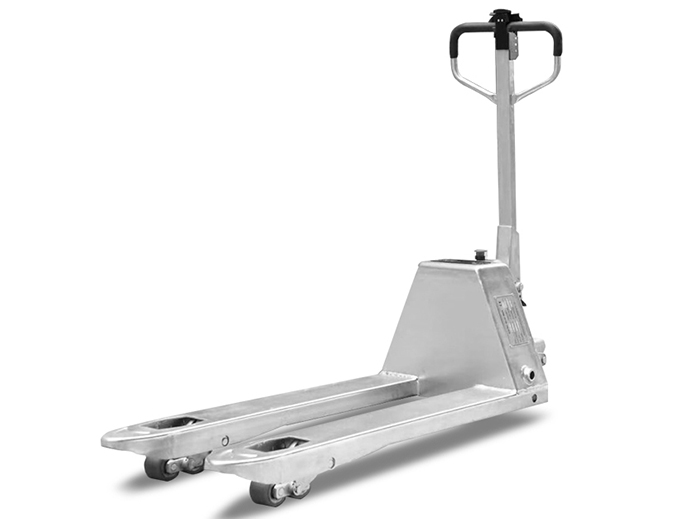

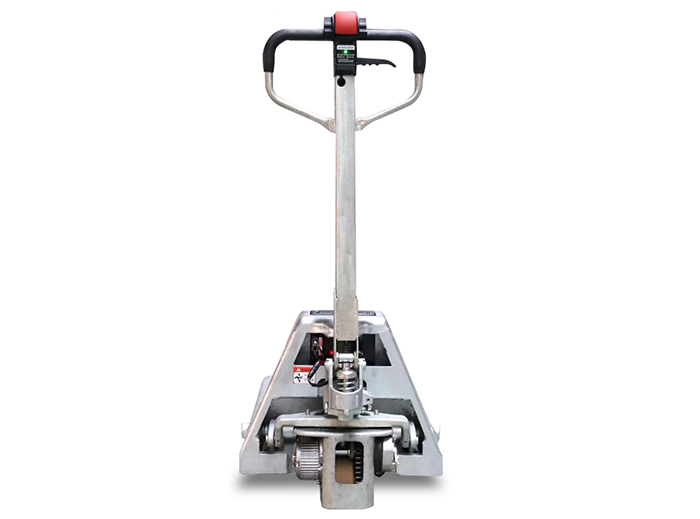

Name:ET15MH-F Stainless Steel Hybrid Pallet Truck
Model:ET15MH-F
Product Introduction:The new ET15MH-F electric pallet truck is suitable for carrying out the practical and safe handling of pallets with a maximum weight of 1500 kg in warehouses, depots and logistics centers. It is simple and practical to use also thanks to its compact size and low weight. The total width of the pallet truck is in fact 540/680 mm equal to the width of the forks. This together with the turning radius of only 1320/1390 mm, allows you to work comfortably even in confined spaces.

Features of the ET15MH-F Semi-Electric Li-Battery Power Stainless Steel Pallet Truck

High-performance permanent magnet DC motor simulates the soft process of manual pallet truck acceleration to ensure the safety of workers

Unique patented technology gravity control handle, in line with CE, GB, ANSI operating standards, safe and efficient operation.

Compact and quick-change lithium battery, no maintenance, no need to add acid and liquid, up to 2 years warranty.

Walking upright black technology allows workers to operate vehicles safely and effectively in containers or narrow passages.

Product Code

ET15MH-F

Unit of measurement

Metric System

Imperial

Capacity

kg

1500

lbs

3000

Lowered fork height         H2

mm

85

inch

3.3"

Steering wheel  *1             A

mm

Ø180x65

inch

Ø7"X2.6"

Fork wheel tandem           B

mm

Ø78x70

inch

Ø3"x2.75"

Max. lift height                  H1

mm

200

inch

8"

Total height                      H

mm

1250

inch

49"

Overall length                  L2

mm

1540/1610

inch

60.6"x63.4"

Fork length *1                  L1

mm

1150/1220

inch

45"/48"

Width overall forks         W1

mm

540/680

inch

21"/27"

Single fork width            W2

mm

165

inch

6.5"

Travel Speed(Load/unload)

4/4.5kmh

2.5/2.8mph

Load center

mm

600

inch

24"

Battery Voltage/Capacity

V/Ah

24V/20Ah Li-Battery

V/Ah

24V/20Ah Li-Battery

Turning Radius

mm

1320/1390mm

lbs

52"/55"

Service weight

kg

125

lbs

275
