Home >> Products >> ET15MH-S Scale Hybrid Pallet Truck

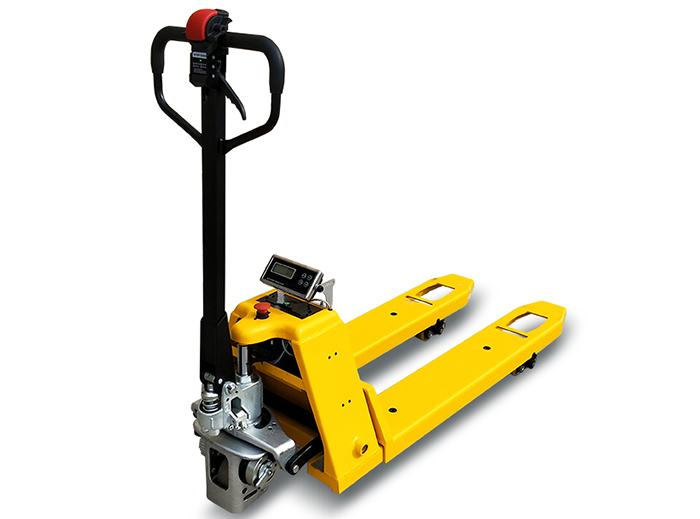

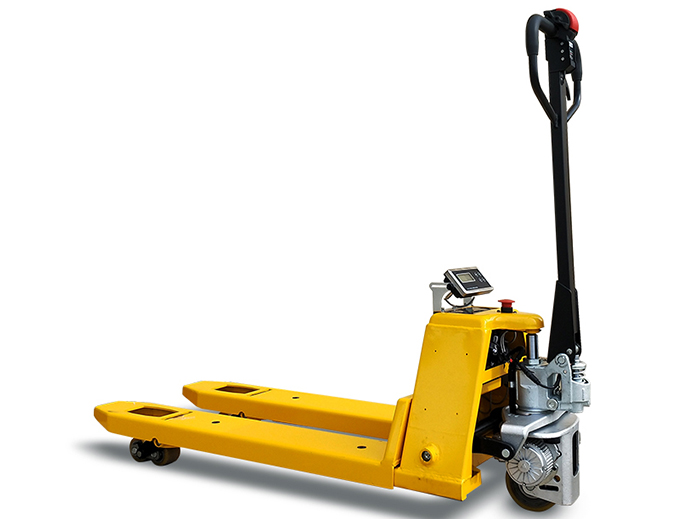

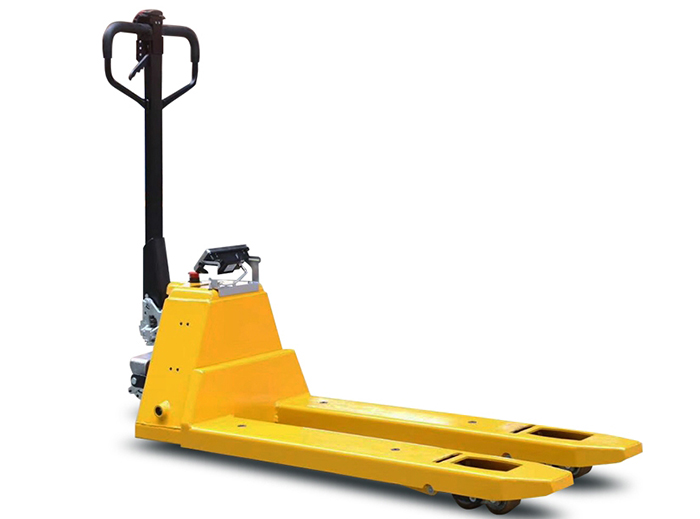

Name：ET15MH-S Scale Hybrid Pallet Truck
Model：ET15MH-S

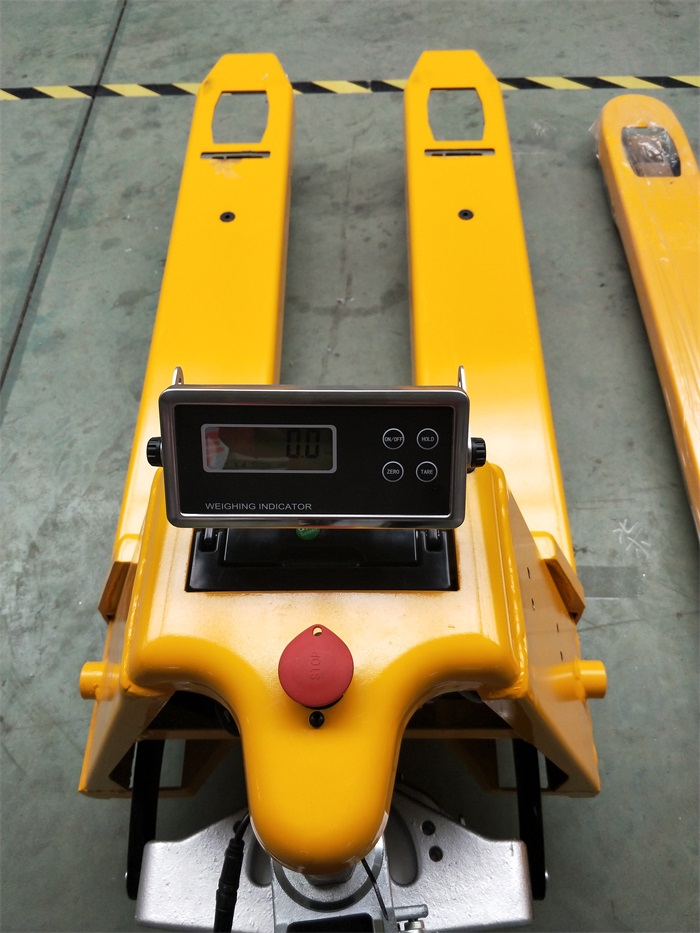

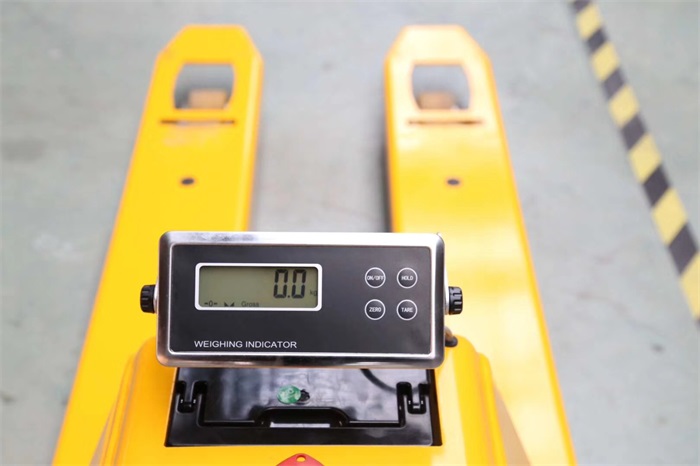

Product Introduction：1.Features of the ET15MH-S Semi-Electric Li-Battery POWER PALLET TRUCK ♦ The Hybrid Pallet Truck with a precise Scale indicator can make your weighing Job easier ♦ Easier entrance/exit design for pallet ♦ Update Li-battery design with 2 years warranty ♦Quick charging, 3KG weight only 2-5 hours

Compact Body

A) Dimensions similar to hand pallet truck;
B) Module design;
C) Weight of only less than 125kg.

Hybrid Drive
A) Normally used with lithium power;
B) Power off or malfunctions, release brake and pull/push by manual.

VNA Application
Very Narrow Aisle, within lorry, supermarket, truck, container, logistic transportation, etc.

Product Code	ET15MH-S
Unit of measurement	Metric System		Imperial
Capacity	kg	1500	lbs	3000
Lowered fork height H2	mm	85	inch	3.3"
Steering wheel *1 A	mm	Ø180x65	inch	Ø7"X2.6"
Fork wheel tandem B	mm	Ø78x70	inch	Ø3"x2.75"
Max. lift height H1	mm	200	inch	8"
Total height H	mm	1250	inch	49"
Overall length L2	mm	1540/1610	inch	60.6"x63.4"
Fork length *1 L1	mm	1150/1220	inch	45"/48"
Width overall forks W1	mm	540/680	inch	21"/27"
Single fork width W2	mm	165	inch	6.5"
Travel Speed(Load/unload)		4/4.5kmh		2.5/2.8mph
Load center	mm	600	inch	24"
Battery Voltage/Capacity	V/Ah	24V/20Ah Li-Battery	V/Ah	24V/20Ah Li-Battery
Turning Radius	mm	1320/1390mm	lbs	52"/55"
Service weight	kg	125	lbs	275
