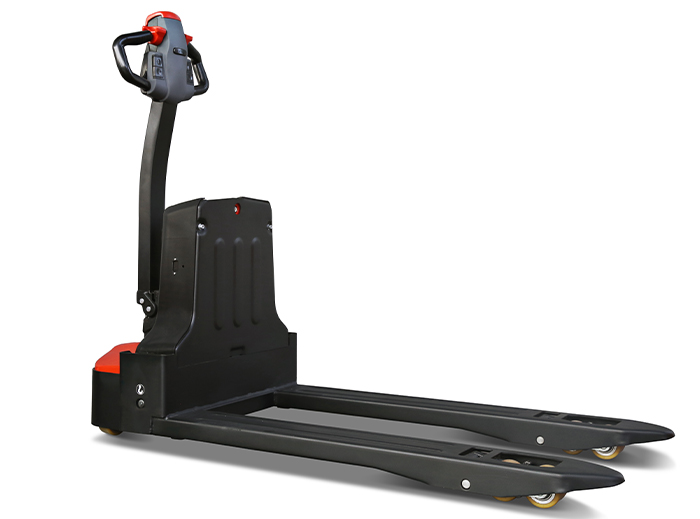

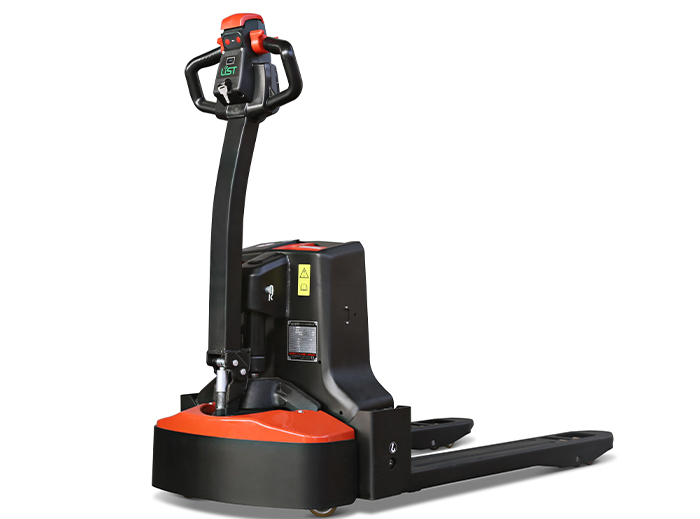

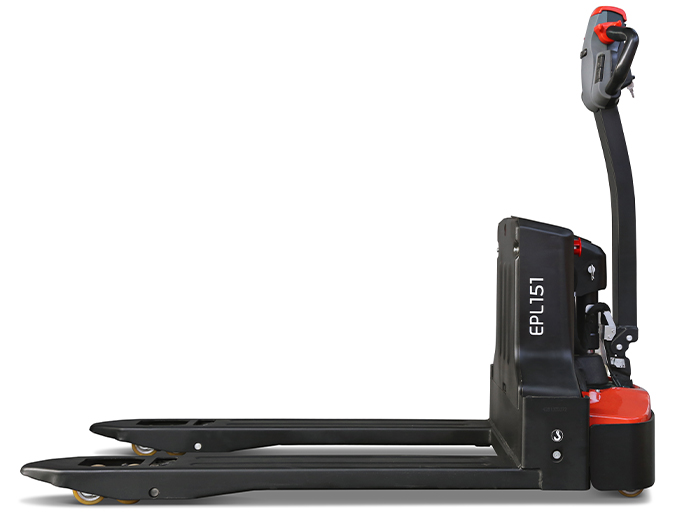

Name：EPL151Z Lithium Battery Operated Pallet Jack
Model：EPL151Z
Product Introduction：The EPL151 full electric pallet truck plays out its strength in normal duty application in the warehouse, on the lorry and in production facilities. With a capacity of 1500kg and a Plug&Play Li-Ion battery, it can be opportunity charged and will be available when needed. Due to its compact size, it fits perfect into the transport industry to be used on taillifts with limited capacity.

The EPL 151 can easily be called the next generation pallet truck. Based on the success of previous entry level electric pallet trucks, EP developed the EPL 151 based on the demands of thousands of customers around the world. The main charecteristics of the trucks: Plug&Play Li-Ion Battery, full steel chassis, support wheels for higher stability and the smallest chassis of a 1.5to full electric pallet truck. Find out more about the next generation pallet truck from EP Equipment.

Manufacturer			EP
Model designation			EPL151
Drive unit			Battery
Operator type			pedestrian
rated capacity	Q	kg	1500
Load center distance c mm			600
Load distance	x	mm	883/946
Wheelbase y mm			1105/1168
Service weight （include battery）		kg	165
Axle loading, laden driving side/loading side kg			574/1091
Axle loading, unladen driving side/loading side		kg	130/35
Tyre type driving wheels/loading wheels			PU/ PU
Tyre size, driving wheels（diameter×width） mm			Ф210x70
Tyre size, loading wheels（diameter×width）		mm	2x Ф78x60(Ф78x88）
Tyre size, caster wheels（diameter×width） mm			Ф74x48
Wheels, number driving，caster/loading (x=drive wheels)		mm	1x 2/4（1x 2/2）
Track width, front,driving side b10 mm			438
Track width,rear,loading side	b11	mm	390
Lift height	h3	mm	115
Height drawbar in driving position min./max. h14 mm			700/1170
Lowered height	h13	mm	80
Overall length l1 mm			1523
Length to face of forks	l2	mm	373
Overall width b1/ b2 mm			600
Fork dimensions	s/ e/ l	mm	50/150/1150
Outside width of the forks b5 mm			540
Ground clearance, center of wheelbase	m2	mm	30
Aisle width for pallets 1000 × 1200 crossways Ast mm			1584
Aisle width for pallets 800 × 1200 lengthways	Ast	mm	1784
Turning radius Wa mm			1330
Travel speed, laden/ unladen	km/ h	km/h	4/4.5
Lifting speed, laden/ unladen m/ s			0.017/0.022
Lowering speed, laden/ unladen		m/ s	0.044/0.021
Max. gradeability, laden/unladen %			5/16
Service brake type			Electromagnetic
Drive motor rating S2 60 min		kW	0.65
Lift motor rating at S3 15% kW			0.8
The maximum allowed size battery		mm	Li 175124407
Battery voltage/nominal capacity K20 V/ Ah			24V*1/40Ah
Battery weight		kg	13
Standard battery pack capacity V / AH			24V/40Ah
Chemical Material			LFP
Charger V / A			24V/20A
