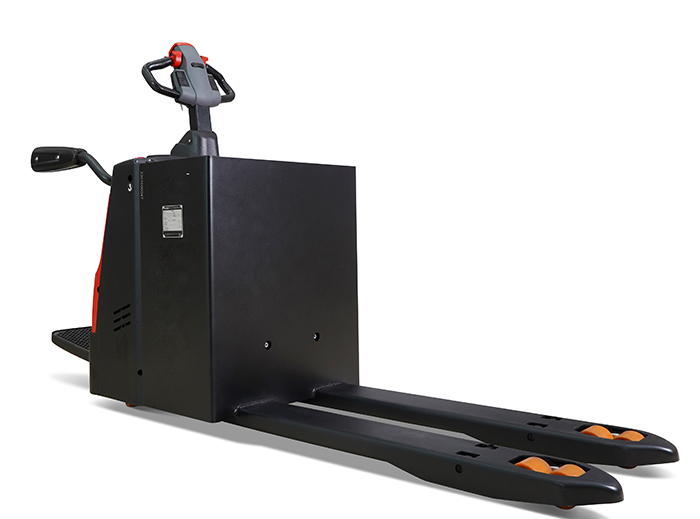

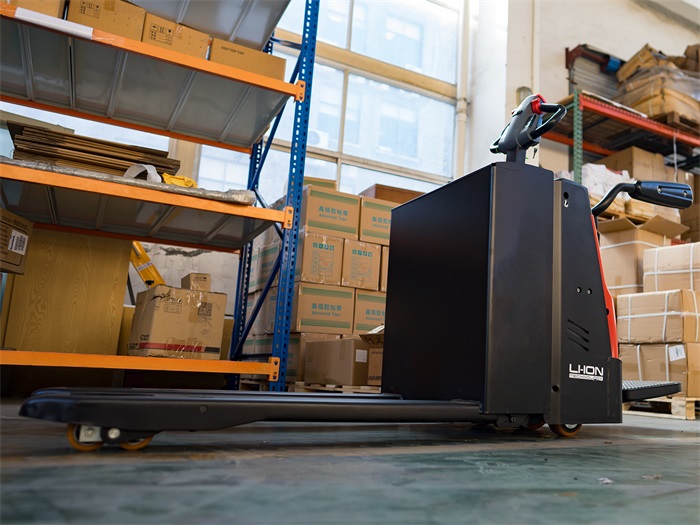

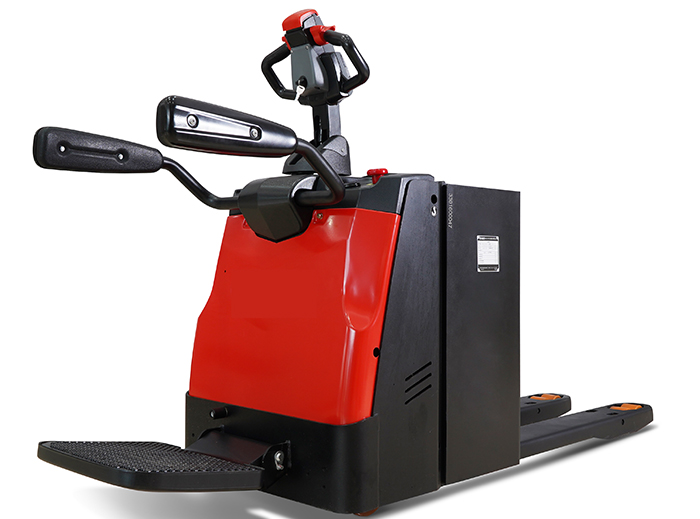

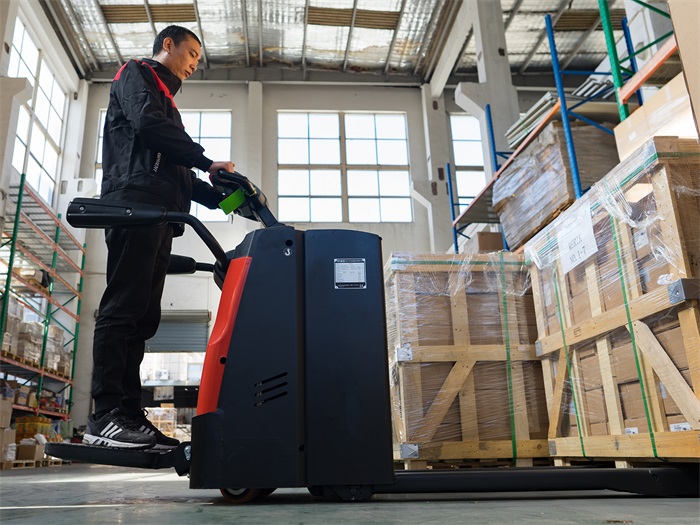

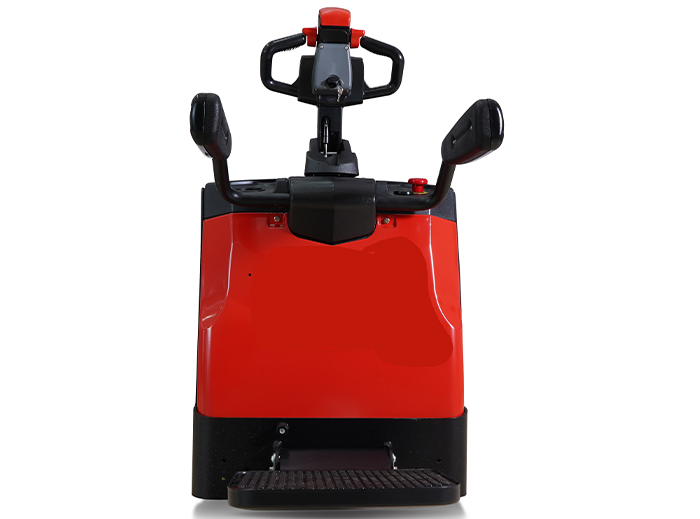

Name:RPL201Z Lithium Battery Operated Pallet Truck
Model:RPL201Z
Product Introduction:Robust safety arms; Lithium-ion technology; Increase lifetime of movable parts; More precise working mechanism ; Strengthened loading wheel assembly;

Lithium-ion technology

The RPL series is equipped with 24V/210Ah EP Lithium-ion battery that supports opportunity charging. Operators can charge the truck at preferable time during the day without disrupting working schedules.

Robust safety arms

The safety arms of the RPL series are produced from strengthened steel to ensure a long lifetime of the trucks structure.

More precise working mechanism

Using slider motion structure and one-time full-axis processing technology to ensure higher working accuracy.

Increase lifetime of movable parts

Adopting special pin material, heat treatment process and customized sleeve to make key movable parts more durable.

Strengthened loading wheel assembly

RPL251 and RPL301 come with strengthened frames and updated links of the loading wheels to improve wear resistance and meet heavy duty applications.

Manufacturer

SINOLIFT

SINOLIFT

Model designation

RPL201Z(Li)

RPL201Z(Li)

Drive

Electric

Electric

Operator type

Standing

Standing

Load capacity

Q

kg

2000

2000

Load center distance

c

mm

600

600

Load distancecentre of drive axle to fork

x

mm

980

1000

Wheelbase

y

mm

1531

1551

Service weight

kg

670

670

Axle loading, laden front/rear

kg

1060 / 1610

1060 / 1610

Axle loading, unladen front/rear

kg

540 / 130

540 / 130

Tyre type

Polyurethane

Polyurethane

Tyre size, front

mm

Ф230x75

Ф230x75

Tyre size, rear

mm

Ф85x70/Ф83x115

Ф85x70/Ф83x115

Additional wheels (castor wheels)

mm

Ф130x55

Ф130x55

Wheels, number front/rear (x=drive wheels)

mm

1x+2/4/1x+2/2

1x+2/4/1x+2/2

Tread width, front

b10

mm

510

510

Tread width, rear

b11

mm

370 / 515

370 / 515

Lift height

h3

mm

120

120

Height of tiller handle in drive position min./max.

h14

mm

1075 / 1288

1075 / 1288

Lowered height

h13

mm

85

85

Overall length

l1

mm

1954

2024

Length to face of forks

l2

mm

804

804

Overall width

b1/b2

mm

734

734

Fork dimensions

s/e/l

mm

55 x 170 x 1150

55 x 170 x 1220

Distance between fork-arms

b5

mm

540 / 685

540 / 685

Ground clearance, center of wheelbase

m2

mm

30

30

Aisle width for pallets 1000×1200 crossways

Ast

mm

2606

2606

Aisle width for pallets 800×1200 crossways

Ast

mm

2463

2463

Turning radius

Wa

mm

1806

1826

Travel speed, laden/unladen

km/ h

7.5 / 8

7.5 / 8

Lifting speed, laden/unladen

m/s

0.050 / 0.054

0.050 / 0.054

Lowering speed, laden/unladen

m/s

0.067 / 0.054

0.067 / 0.054

Max. gradeability, laden/unladen

%

8 / 16

8 / 16

Service brake

Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.6

1.6

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity

V/Ah

24 / 205AH

24 / 205AH

Battery weight

kg

62

62

Type of drive control

AC

AC

Steering design

Electronic

Electronic

Sound pressure level at the driver's ear

dB(A)

74

74
