Home >> Products >> WPL201Z Li-Ion electric pallet truck in narrow aisles

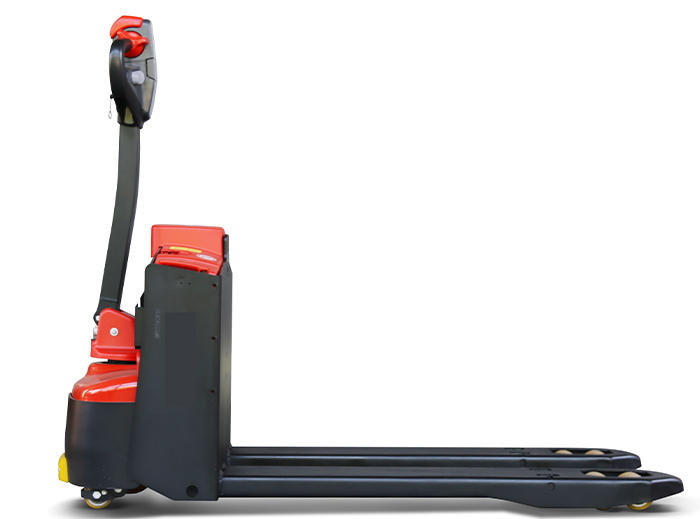

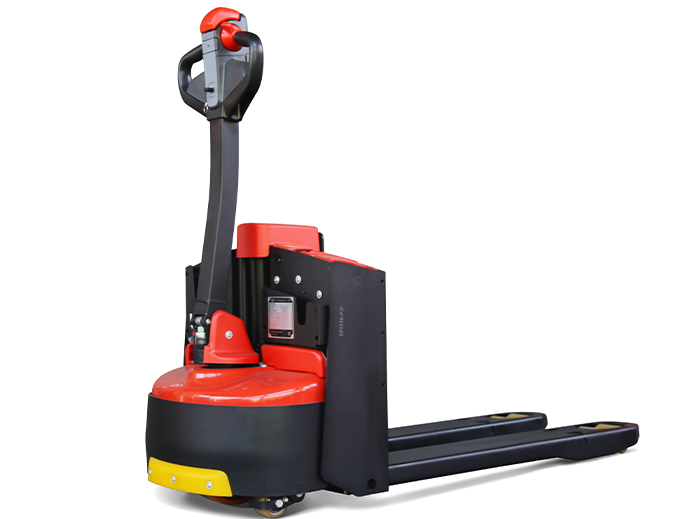

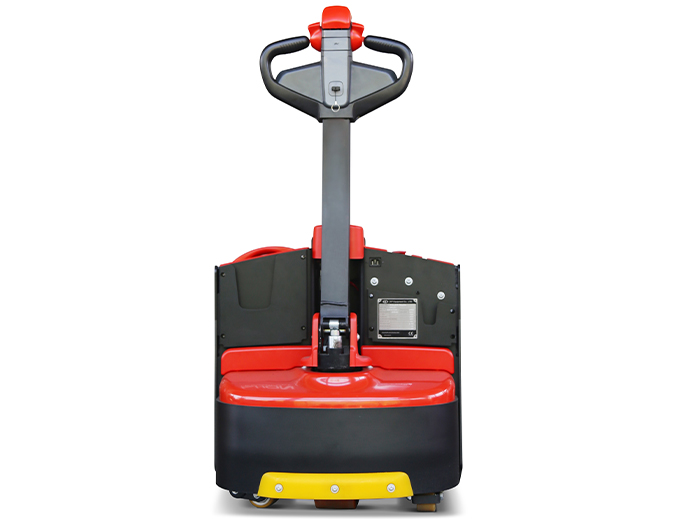

Name：WPL201Z Li-Ion electric pallet truck in narrow aisles
Model：WPL201Z
Product Introduction：The WPL 201 has many great features about it, but one feature stands out: Plug&Play components. To decrease the service cost at the truck, it is equipped with several Plug&Play components that can be exchanged without an expensive service call out. The Li-Ion Battery, the Controller unit as well as the tiller head can be exchanged single handed and reduce the TCO costs of the truck significantly.

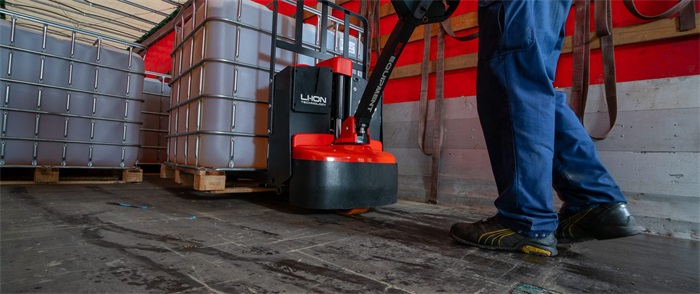

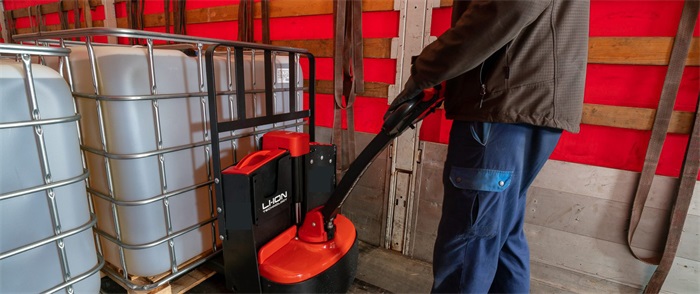

The WPL 201 Lithium Ion pallet truck is a high-performance electric pallet truck, designed around the needs of warehouses around the world. Due to its 48V brushless DC motor, it can be used in the delivery application, where gradeability, as well as ground clearance, is needed (without support wheels). At the same time it is the perfect truck for loading & unloading in distribution centers as well as warehouses. With the optional support wheels it can be equipped for maximum stability.

1.1	Manufacturer			SINOLIFT
1.2	Model designation			WPL201Z
1.3	Drive unit			Electrics
1.4	Operator type			Pedestrian
1.5	rated capacity	Q	kg	2000
1.6	Load center distance	c	mm	600
1.8	Load distance	x	mm	1000
1.9	Wheelbase	y	mm	1268
2.1	Service weight （include battery）		kg	250
2.2	Axle loading, laden driving side/loading side		kg	685/1565
2.3	Axle loading, unladen driving side/loading side		kg	185/65
3.1	Tyre type driving wheels/loading wheels			Polyurethane / Polyurethane
3.2	Tyre size, driving wheels（diameter×width）		mm	Ф245×94
3.3	Tyre size, loading wheels（diameter×width）		mm	2×Ф80x85/ Ф80×115
3.4	Tyre size, caster wheels（diameter×width）		mm	Ф74x48
3.5	Wheels, number driving，caster/loading (x=drive wheels)		mm	1× +2/4 / 1× +2/2
3.6	Track width, front,driving side	b10	mm	441
3.7	Track width,rear,loading side	b11	mm	370 / 515
4.4	Lift height	h3	mm	140
4.9	Height drawbar in driving position min./max.	h14	mm	716 / 1240
4.15	Lowered height	h13	mm	82.5
4.19	Overall length	l1	mm	1592
4.20	Length to face of forks	l2	mm	423
4.21	Overall width	b1/ b2	mm	645 / 625
4.22	Fork dimensions	s/ e/ l	mm	55×170×1170
4.25	Distance between fork-arms	b5	mm	540 / 685
4.32	Ground clearance, center of wheelbase	m2	mm	27
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	2228
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2076
4.35	Turning radius	Wa	mm	1428
5.1	Travel speed, laden/ unladen		km/h	5 / 5.5
5.2	Lifting speed, laden/ unladen		m/ s	0.028 / 0.04
5.3	Lowering speed, laden/ unladen		m/ s	0.04 / 0.022
5.4	Max. gradeability, laden/unladen		%	6 / 16
5.5	Service brake type			Electromagnetic
6.1	Drive motor rating S2 60 min		kW	0.9
6.2	Lift motor rating at S3 15%		kW	0.84
6.3	The maximum allowed size battery		mm	245×160×380
6.4	Battery voltage/nominal capacity K5		V/ Ah	48/30（Li-ion）
6.5	Battery weight		kg	14
8.1	Type of drive control			DC
10.5	Steering type			Mechanical
10.7	Sound pressure level at the driver’s ear		dB (A)	74
