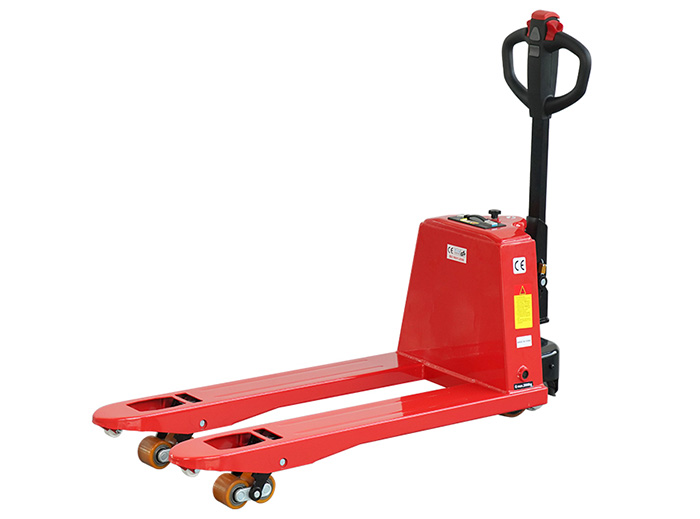

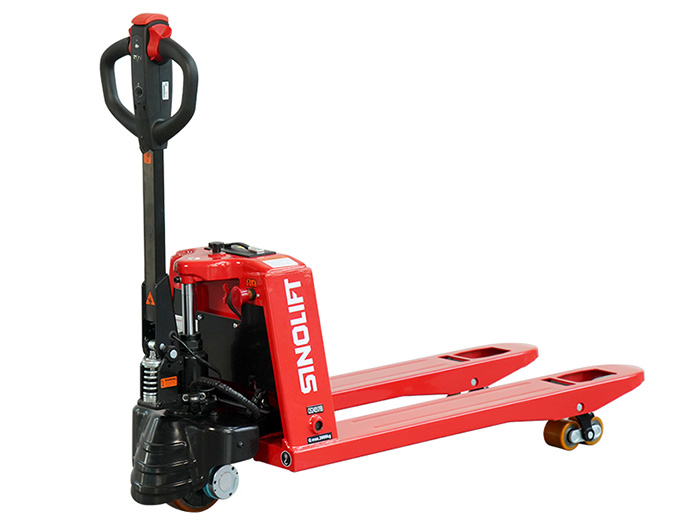

Name:EPT20E Full Electric 2ton Pallet Jack
Model:EPT20E
Product Introduction:EPT20E is a versatile full electric pallet truck using a 48V power plant to drive and lift loads of up to 2 tons. Using a traditional and proven triangular chassis, the EPT20E is a familiar look-alike of a manual hand pallet truck. The 15Ah lithium battery can be easily swapped out for another externally recharged battery to ensure continuous use. A full recharge requires just about 4 hours. Comes standard with a digital lock for added security. Included two batteries.

When we talk about electric pallet truck, there are few pros we can never ignore:

1.     Less possibility of a strain-related injury for your worker;

2.     Time-saving machine especially for a busy warehouse.

3.     Completely powered by electricity, easier to work for long-distance.

To meet this increasing need, we here recommend our EPT 20E full electric pallet truck for distribution and retail business.

We have 2 models for 1500kg and 2000kg pallets, but we here mainly suggest 2000kg for its high cost-competitive concern.

It has an intelligent handlebar, with a PIN code for the lock. You would never need to match your key for that pallet truck.

The LCD display will show you the battery capacity, mode situation, and fault code that you can easily know the pallet truck's condition.

Turtle mode: After pressing the button, the pallet truck could work when the handle is at its vertical position in a slow speed. This is designed for safety issues and convenience operation in narrow spaces.

Metal cover for driving wheels is designed to protect from and injury to your feet when you walk behind;

PU wheels are applied for this pallet jack which will reduce the noise and smooth moving.

Lithium batteries could be removed. For end-users, you can take out the lithium battery and replace it with a new one to make the pallet truck work again.

The battery here we use is 48V 15ah, normally working for 3.5hours around. Bring a spare battery for your backup would also be a good choice.

Manufacturer

SINOLIFT

Model

EPT20E

Power Type

Lithium Battery

Type of Operation

Pedestrian

Load capacity/Rated load

q

kg

2000

Load Center Distance

c

mm

600

Alex centre to Fork Face

x

mm

840(910)

Wheelbase

y

mm

1220(1295)

Total Weight (with battery

kg

140(145)

Tyre Type

Polyurethane

Tyre Size( Load Wheel)Tandem

mm

φ80x70(85mm)or φ74x70(75mm)

Tyre Size (Load Wheel) Single

φ80x93(85mm)or φ74x93(75mm)

Tyre Size (Drive Wheel)

mm

φ190x170

Wheels Quantity, front/rear (x=Driving Wheels

4/1x+2

Track Width,Front,Driving Side

mm

460

Track Width,Rear,Loading Side

mm

400(520)

Lifting Height

b10

mm

180(200)

Height of Tiller Arm in Driving Position, Min.-Max.

b11

mm

800-1240

Lowered Height

h3

mm

75(85)

Overall Length

h14

mm

1540(1610)

Length to Fork Face

h13

mm

390

Overall Width

l1

mm

560(680)

Fork Dimension

l2

mm

50x160x1150(1220)

Fork Spread Width

b1

mm

560/680

Ground Clearance at Center of WVheelbase (Min)

s/e/l

mm

30

Aisle Width for Pallets 1000x1200 Crossways

b5

mm

1790

Aisle Width for Pallets 800x1200 Crossways

m2

mm

1740

Turning Radius

Ast

mm

1350

Traveling Speed (Laden/Unladen)

Ast

km/h

4.5/4

Lifting Speed (Laden/Unladen)

Wa

mm/s

22/17

Lowering Speed (Laden/Unladen)

mm/s

26/30

Max.Gradient Performance (Laden/Unladen)

%

8/20

Service Brake Type

Electromagnetic

Driving Motor Rating (DC) S2 60min

kw

0.85

Lifting Motor Rating S3 15%

kw

0.6

Battery Type

Li-ion

Battery Voltage/Capacity K5

V/Ah

48/15

Battery Weight

kg

6.3

Charger

V/A

48/16

Controller Model

DC CURTIS

Steering Type

Mechanical

Sound level atdriver's ear according to EN 12 053

db(A)

70
