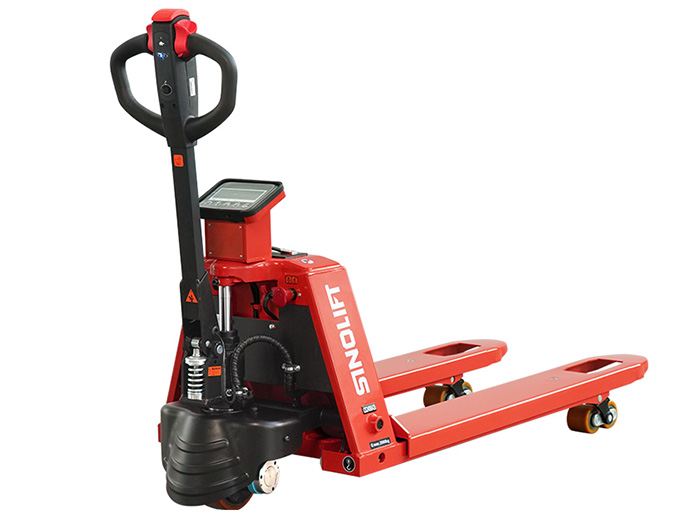

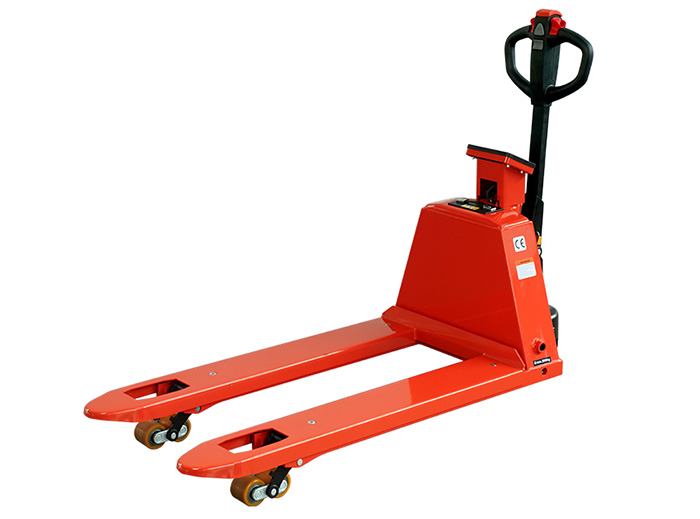

Name:EPT20ES Electric Pallet Jack with Scale
Model:EPT20ES
Product Introduction:·Lifetime maintenance free, lowest after-sale service needed; ·Module designed Lithium-Ion battery, 2.5 hrs fast charging. Fully charged during lunch break! ·Standard with 0.75kW super strong driving motor; ·Standard with balance wheels, makes the whole machine more stable;

An electric pallet jack with scale is a perfect choice for environments where pallets are weighed and transported frequently. SINOLIFT electric pallet jack features an in-build scale to help improve work efficiency.

We focus on performance and manufacture pallet jacks as both handling and weighing devices so you can have the maximum use of our products.

Our electric pallet jack with scale is perfect for complex environments because it provides resistance against moisture and dust.

SINOLIFT is an expert in manufacturing electric pallet jacks with scale most accurately and cost-effectively. Furthermore, that’s why our electric pallet jack with scale also costs less than other same-quality pallet trucks available in the market.

Most importantly, we also focus on the environments and conditions in which our pallet jack with scale is going to be used. That’s why we ensure that our electric pallet jacks are heavy-duty and robust. The wheel we select for the electric pallet jack is polyurethane and extremely convenient and flexible.

The EPT20ES, leader in the electric pallet market, evolves into a new version equipped with a weighing system

Two models are available: with a printer or without

The tolerance of the weighing system is ± 0,2 % of the nominal capacity of the device. On a 1500 kg load, the differential is; therefore, 3 kg

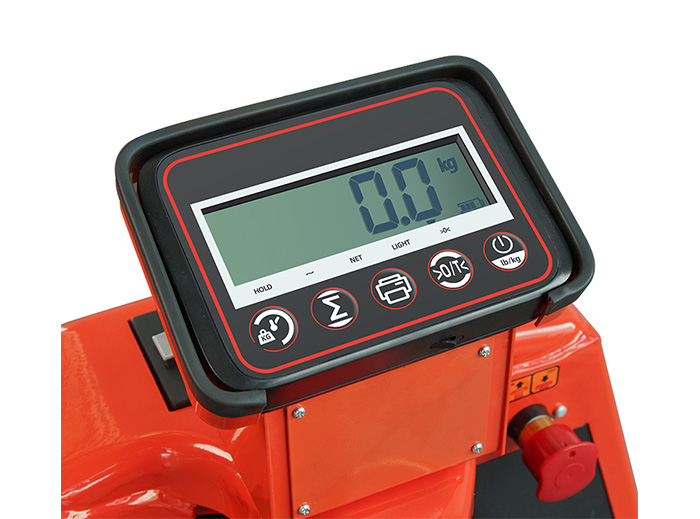

The scale has several options such as tare, gross/net weight, and also total weight.

Manufacturer

SINOLIFT

Model

EPT20ES (with scale)

Power Type

Lithium Battery

Type of Operation

Pedestrian

Load capacity/Rated load

q

kg

2000

Load Center Distance

c

mm

600

Alex centre to Fork Face

x

mm

840 (910)

Wheelbase

y

mm

1185 (1225)

Total Weight (with battery)

kg

168 (190)

Tyre Type

Polyurethane

Tyre Size (Load Wheel) Tandem

mm

φ80x70 (88mm)

Tyre Size (Load Wheel) Single

φ80x93 (88mm)

Tyre Size (Drive Wheel)

mm

φ190x170

Wheels Quantity, front/rear (x Driving Wheels)

4/1x+2

Track Width, Front, Driving Side

mm

460

Track Width, Rear, Loading Side

mm

400 (520)

Lifting Height

b10

mm

198

Height of Tiller Arm in Driving Position, Min.-Max.

b11

mm

800-1240

Lowered Height

h3

mm

88

Overall Length

h14

mm

1540 (1610)

Length to Fork Face

h13

mm

420

Overall Width

l1

mm

560 (690)

Fork Dimension

l2

mm

50x180x1150 (1220)

Fork Spread Width

b1

mm

560/680

Ground Clearance at Center of Wheelbase (Min)

s/e/l

mm

30

Aisle Width for Pallets 1000x1200 Crossways

b5

mm

1790

Aisle Width for Pallets 800x1200 Crossways

m2

mm

1740

Turning Radius

Ast

mm

1350

Traveling Speed (Laden/Unladen)

Ast

km/h

4.5/4

Lifting Speed (Laden/Unladen)

Wa

mm/s

22/17

Lowering Speed (Laden/Unladen)

mm/s

26/30

Max.Gradient Performance (Laden/Unladen)

%

5/7

Service Brake Type

Electromagnetic

Driving Motor Rating (DC) S2 60min

kw

0.75

Lifting Motor Rating S3 15%

kw

0.5

Battery Type

Li-ion

Battery Voltage/Capacity K5

V/Ah

24/25

Battery Weight

kg

6.3

Charger

V/A

48/16

Controller Model

DC CURTIS

Steering Type

Mechanical

Sound level at driver's ear according to EN 12 053

dB (A)

70
