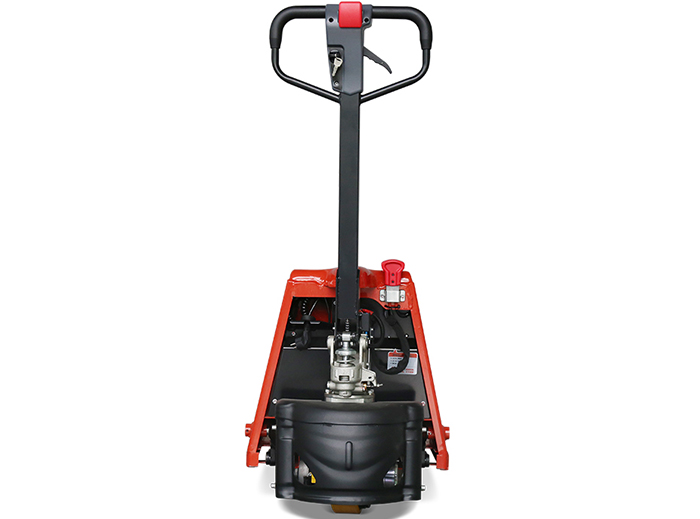

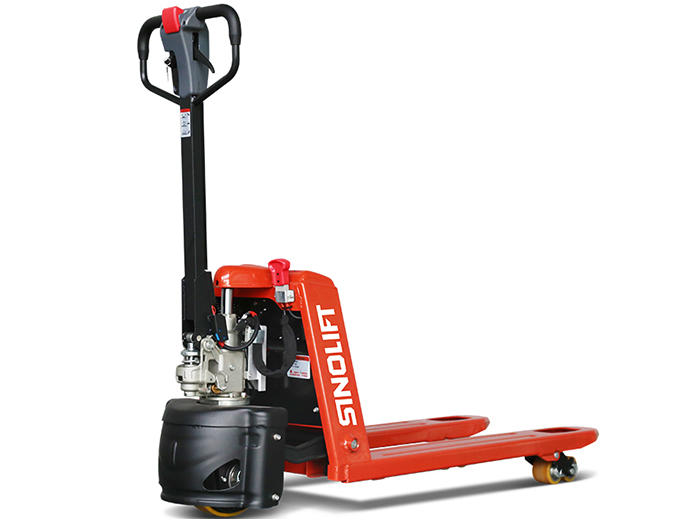

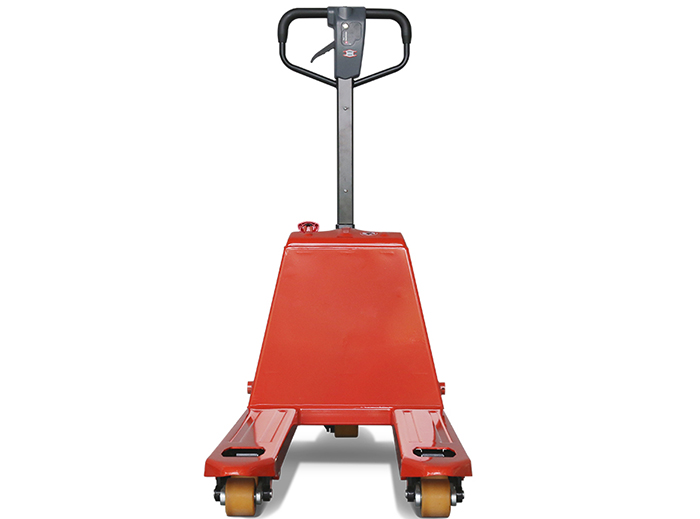

Name：EPT20-15EHJ Semi-Electric Pallet Jack
Model：EPT20-15EHJ
Product Introduction：Our EPT20-15EHJ semi-electric pallet truck can eliminate operator strain caused by pulling or pushing loads on a manual hand pallet jack. Single speed powered travel is provided for both forward and reverse, while lifting and lowering is accomplished with a standard manual pump.

FEATURES:

Light Weight, Great Capacity, Excellent Passing ability: 1500KG capacity, light weight and compact size equivalent to hand pallet truck.

New Design: New integrated Control Head Design, Easy & Comfortable Operation.

External Control System: New designed external control system not only protects controller in place but also provides easy access for maintenance.

Operation: Ergonomically-designed tiller head helps increase efficiency; Internal Charger for Easy Charging.

Safety: Handy Emergency Disconnect Button & Durable Driving Unit ensure safety under any situation.

Maintenance: Assembly Components, Easy for Diagnosis and Replacing.

Model designation			EPT20-15EHJ
Drive unit			Electrics
Operator type			pedestrian
rated capacity	Q	kg	1500
Load center distance	c	mm	600
Load distance	x	mm	883/946
Wheelbase	y	mm	1152/1215
Service weight(include battery)		kg	140
Axle loading, laden driving side/loading side		kg	540/1100
Axle loading, unladen driving side/loading side		kg	110/30
Tyre type driving wheels/loading wheels			PU/PU
*Tyre size, driving wheels(diameterwidth)**		mm	φ210*70
*Tyre size, loading wheels(diameterwidth)**		mm	2φ8060(φ74*88)
Wheels, number driving,caster/loading(x=drivie wheels)		mm	1x/4
Track width, rear, loading side	b11	mm	410(535)
Lift height	h3	mm	115
Height drawar in driving position min./max.	h14	mm	715/1280
Lowered height	h13	mm	85(75)
Overall length	l1	mm	1588
Length to face of forks	l2	mm	438
Overall width	b1/b2	mm	560(685)
Fork dimensions	s/e/l	mm	50/150/1150
Distance between fork-arms	b5	mm	560/685
Ground clearance, center of wheelbase	m2	mm	35
*Aisle width for pallets 10001200 crossways**	Ast	mm	1669
*Aisle width for pallets 8001200 lengthways**	Ast	mm	1869
Turning radius	Wa	mm	1415
Travel speed, laden/unladen	km/h	km/h	3.5/4
Lifting speed, laden/unladen		m/s	10mm/time
Lowering speed, laden/unladen		m/s	Controlable
Service brake type			Electromagnetic
Drive motor rating S2 60 min		kW	0.65
Lift motor rating at S3 15%		kW	Manual lifting
The maximum allowed size battery		mm	185/125/190
Battery voltage/nominal capacity K20			24/30
Battery weight		kg	9.5*2
Type of drive control			DC
Steering type			Mechanical
Sound pressure level at the driver's ear			74
