Name：EPT20-20ET 2ton Full Electric Pallet Truck
Model：EPT20-20ET

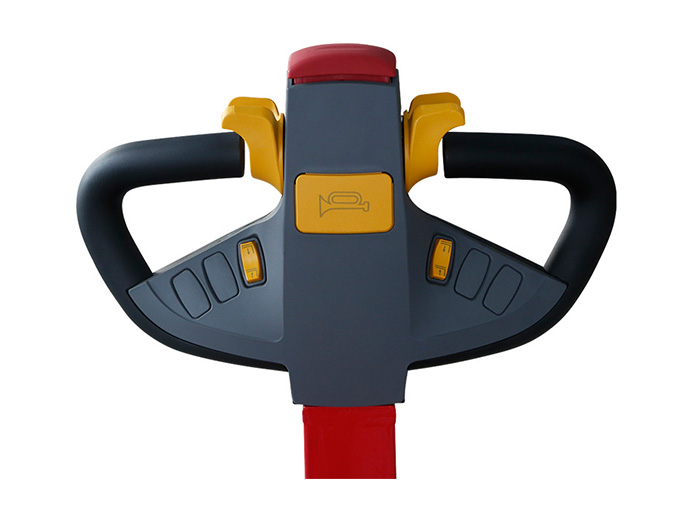

Product Introduction：The EPT20-20ET Truck, electric pallet jack has a 2,000 kg capacity and is fully electric reducing operator strain and greater productivity. The electric pallet jack has a 5 hour run-time per charge and has a rechargeable battery pack with a 48v charger. The ergonomic handle has a horn, reverse switch, and thumb control for accurate operation..

Creep Speed

The SINOLIFT Creep speed feature allows the truck to manoeuvre in confined areas with the tiller in an upright position, normally one of the braking zones. By activating the Creep speed button, easily accessible by either hand, a top speed of 1.5 km/h is set for the truck. The operator can then freely operate and easily manoeuvre the truck on a tail-lift while loading or unloading.

Power and Performance

Curtis solid state controllers provide smooth acceleration and seamless directional control. It’s Regenerative Braking feature adds energy back to the battery to improve efficiency.

With AC Power, you will benefit from faster acceleration, more torque, higher efficiency, and lower maintenance costs due to the brush-less design.

Characteristics
Manufacturer		SINOLIFT
Model designation		EPT20-20ET
Drive Unit		Battery
Operator Type		pedestrian
Load capacity	Q (kg)	2000
Load center	c (mm)	600
Load distance	x	883/946
Wheelbase	y	1202/1261
Weight
Service weight (Incl. battery)	kg	200
Axle loading, laden driving side/loading side	kg	536/1128
Axle loading, unladen driving side/loading side	kg	124/40
Wheels,Chassis
Tyre type, operator side/ load side		PU/PU
Tyre size,driving wheels (Diameter x width)	mm	Ф210x75
Tyre size,loading wheels (diameter x width)	mm	2 X Ф80x60
Tyre size,caster wheels (diameter x width)	mm	//
Wheels, number operator/load side (x=drive wheels)	mm	1 x/4(1x/2)
Track width, front,driving side	b10 (mm)	448
Track width, rear,Ioading size	b11 (mm)	410(535)
Dimensions
Lift height	h3 (mm)	115
Height drawbar in driving postion Min./Max.	h14(mm)	750/1170
Fork height, lowered	h13 (mm)	80
Overall length	11 (mm)	1638
Length to face of forks	12(mm)	488
Overall width	b1/ b2 (mm)	560(685)
Fork dimensions	s/ e/ I (mm)	50/150/1150
Fork spread, min/ max	b5 (mm)	560(685)
Ground cIearance,center of wheelbase	m2(mm)	30
Aisle width, 1000•1200 pallet crossways	Ast (mm)	1739
Aisle width, 800•1200 pallet crossways	Ast (mm)	1939
Outer turning radius	Wa (mm)	1485
Performance
Travel speed, laden/ unladen	km/ h	4/4.5
Lifting speed, laden/ unladen	ml s	0.027/0.038
Lowering speed, laden/ unladen	mlS	0.059/0.039
Maximum gradeability, laden/ unladen S2 5 min.	%	5/16
Service brake		Electromagnetic
Drive
Drive motor rating S2 60 min.	kW	0.75
Lift motor rating at S3 15%	kW	0.84
The maximum allowed size battery	mm	265185215
Battery voltage/ rated capacity (5h)	V/ Ah	4x12/30
Battery weight	kg	4x14
Others
Type of drive control		DC
Steering type		Mechanical
Sound level at operators ear	dB (A)	70
