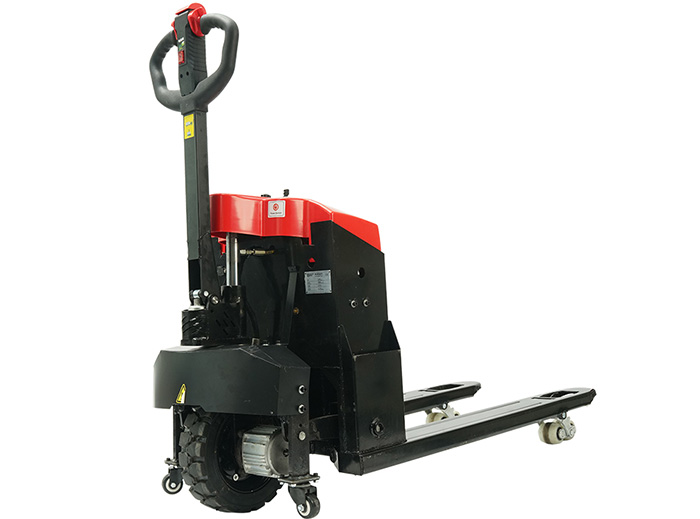

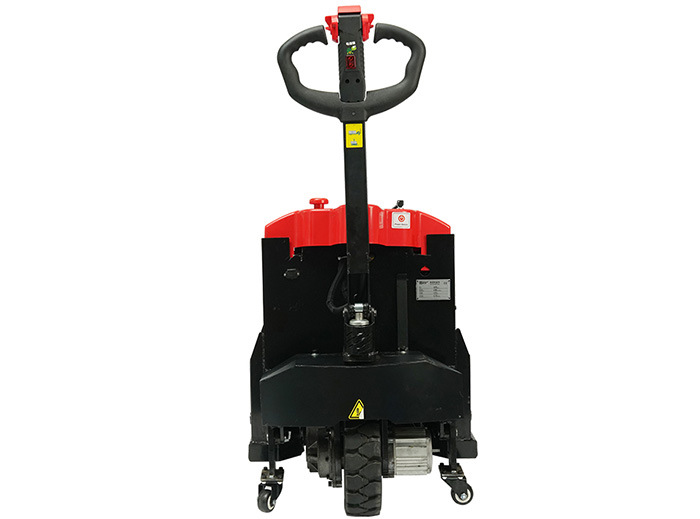

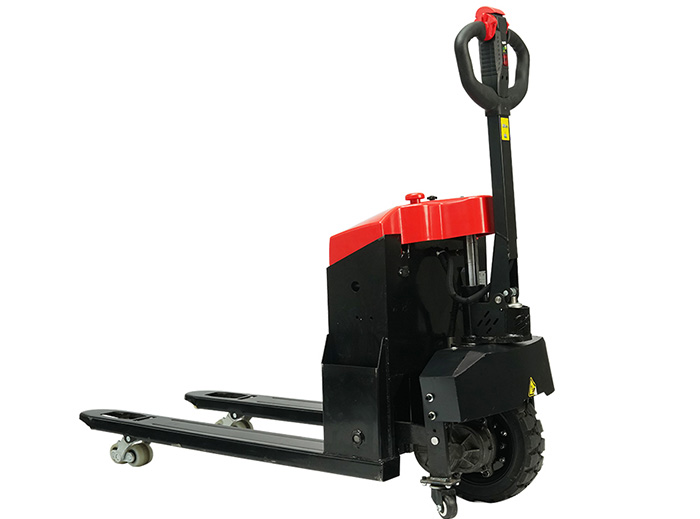

Name：EPT20RT Rough Terrain Electric Pallet Jack
Model：EPT20RT

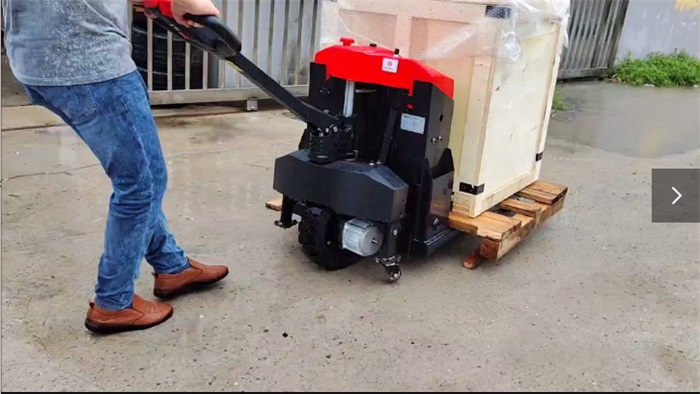

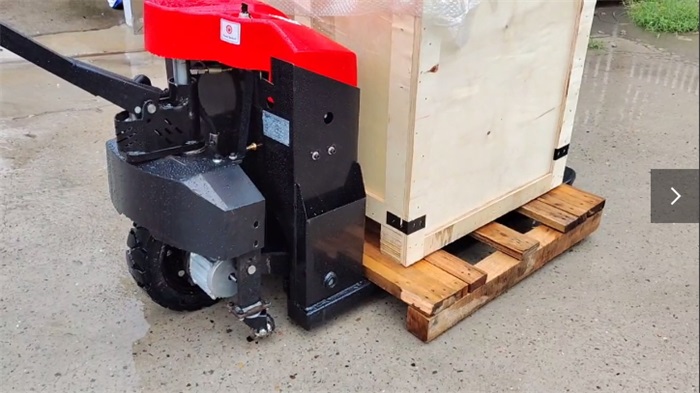

Product Introduction：The SINOLIFT rough terrain electric pallet truck EPT20RT is designed to move pallets in irregular areas especially in the building sector. It is appropriately homologated, meets the requirements and rule of the EC.

1. Electrical movement (forward – backward) and lifting

2. To protect from damage and impacts from the construction works, batteries and engines are sheltered in metallic boxes and cables, in sheltered tubes.

3. Connection with security key

4. Absence of contamination, as well as environmental acoustics; no sounds, no smoke.

5. Security brake (according to standards) to avoid entrapment or accidents.

6. Easy maintenance. Just connect the batteries at night to the electricity network and the charge it will be more than enough for whole day working at its full capacity. We supplied with batteries charger.

7. Fast return: bricks distribution time slashed. The speed and easy operation turn it to almost essential.

Model		EPT20RT
Rated load	kg	2000
Load center	mm	600
Minimum height of fork H	mm	85
Maximum height of fork H1	mm	180
Steering wheel	mm	Φ350x100
Load-bearing wheel single wheel	mm	Φ82x93
Load-bearing wheel with two wheels	mm	Φ80x70
Cargo fork size e*s	mm	160x70
Total width of fork B	mm	550/685
The fork length is L	mm	1100/1200
Total length of L1	mm	1650/1750
High total H1	mm	1430
Drive motor permanent magnet brushless	kw	1.5
Speed	km/h	4-4.5
Lifting motor	kw	0.8
Hoisting speed	cm/s	2.2-3.3
Weight	kg	72-79
