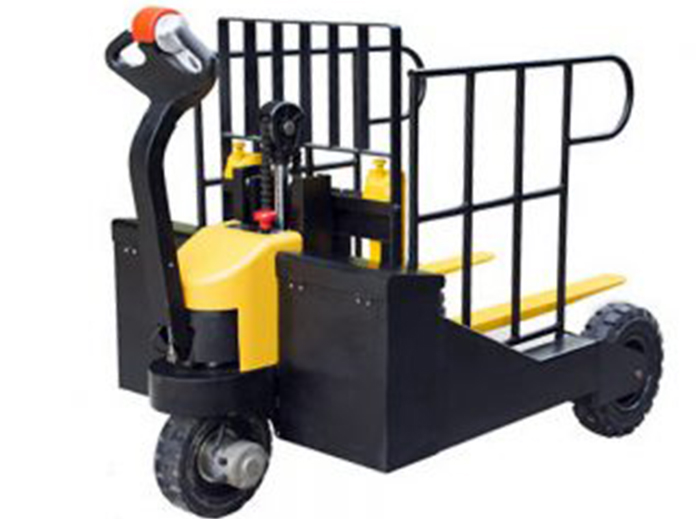

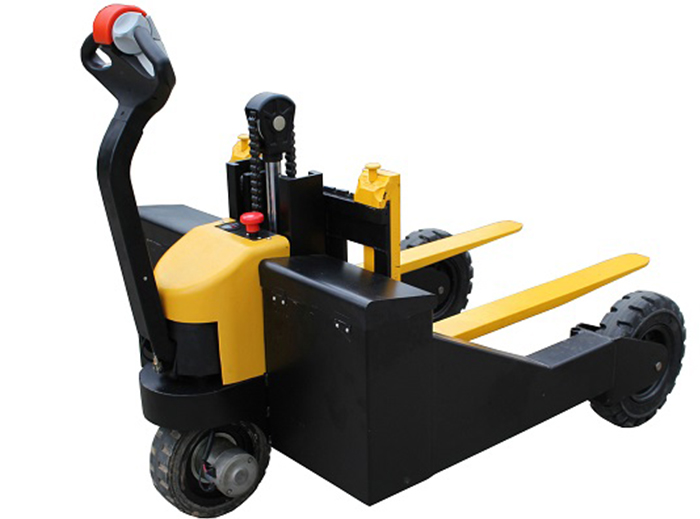

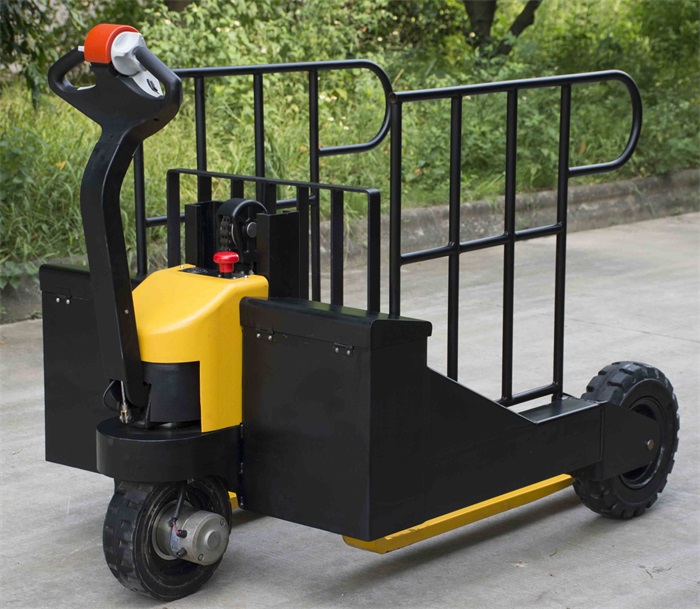

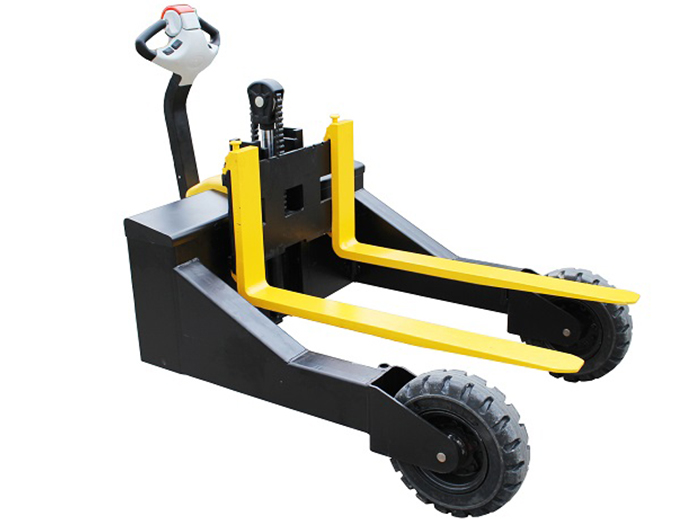

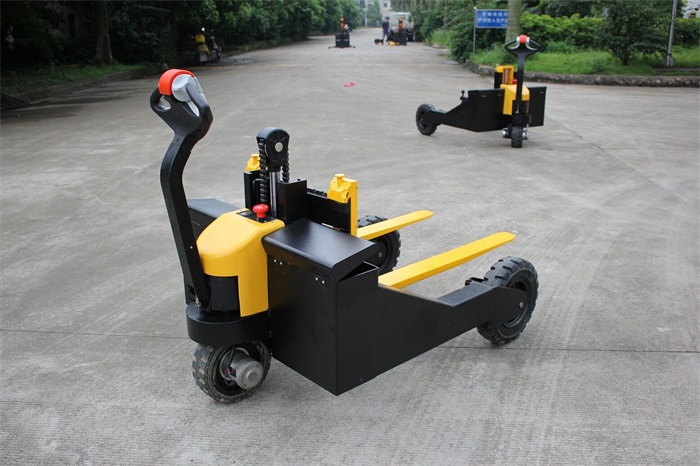

Name：WP-150-3.0RTM Electric Rough Terrain Pallet Truck
Model：WP-150-3.0RTM
Product Introduction：The Record WP heavy duty, electric rough terrain pallet truck goes where ordinary pallet trucks can’t. Its large, pneumatic tyres allow the WP to move over rough ground found at builder’s merchants, farms, garden centres and construction sites.

Ideal for moving heavy objects over uneven surfaces.

Available from light-duty models to those able to handle up to 1,500 kilogrammes, encountering the correct capacity has never been easier.

Boasting increased stability and a reinforced frame, these are all must-have units when safety and reliability are major concerns.

Most common applications are: Construction sites, earthworks and even residential gardens etc.

For more information on Rough Terrain pallet trucks please contact us.

Model		WP-150-3.0RTM
Drive		electric
Load capacity	kg	1500
Load center distance	mm	600
Self weight	mm	560
Tyre size,driving wheels (Diameter x width)	mm	Ф300 x 125
Tyre size,loading wheels (Diameter x width)	mm	2 x Ф 406 x 110
Overall height	mm	1235
Lift height	mm	330
Min. Fork Height (mm)	mm	50
Height of tiller handle in drive position	mm	1235
Overall length	mm	1700
Overall width	mm	1375
Fork length	mm	1070
Fork width	mm	685
Ground clearance	mm	100
Turning radius	mm	1590
Travel speed,full load /no load	km/h	3.5/4.5
Lifting speed,full load /no load	mm/s	13/25
Maximum gradeability,full load /no load	%	5/10
Drive motor rating	kw	AC1.5
Lift motor rating	kw	0.8
Battery	V/Ah	24/100
Charger	V/A	24/15
Sound pressure level at the driver's ear	dB	<70
