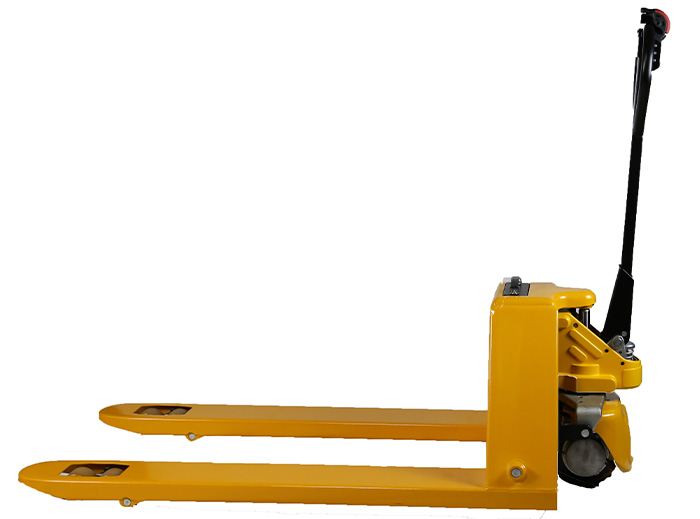

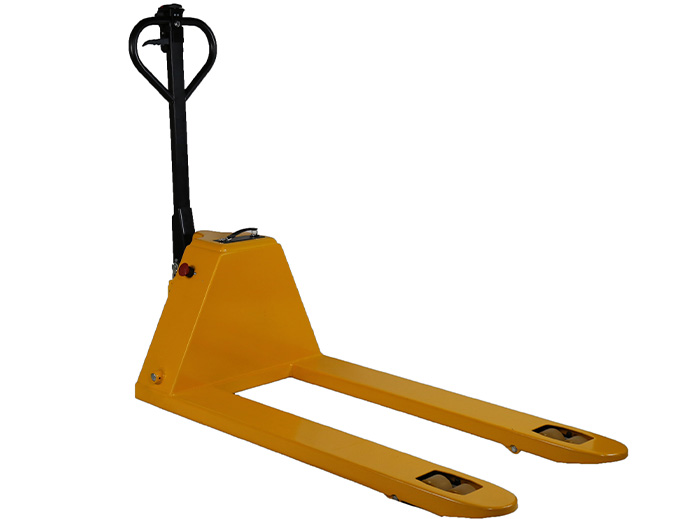

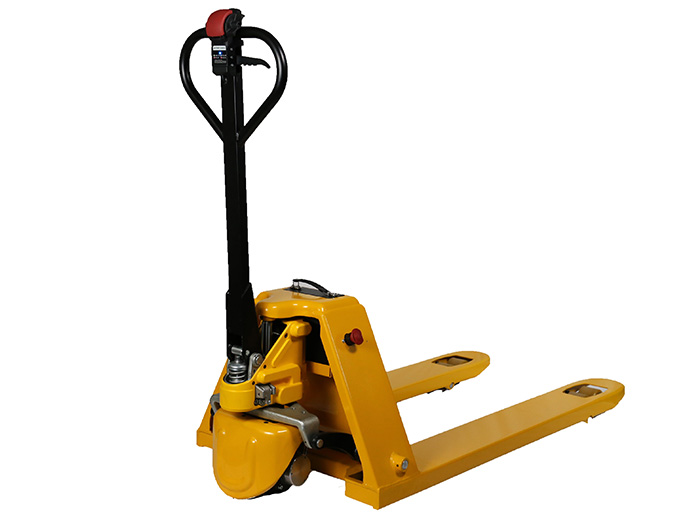

Name:ET15MH-P Full Electric Hybrid Pallet Truck
Model:ET15MH-P
Product Introduction:This is the best-powered pallet Jack you may need to move the palletized cargo. It is a powered drive pallet, but if the battery runs out of power, you can still use it as a regular manual pump jack. And you can push and pull it if needed. When you need to charge it, you don’t need the whole machine to charge it up, just take the battery out and charge it up.

They are self-propelled and self-lifting as well. >>>It is truly UNIQUE! >>> The new style HYBRID POWER PALLET TRUCKS are available now. This will work as a power pallet truck, and enable the operator to move palletized cargo quickly with this small, easily maneuverable machine. They are the same size as the popular manual type pallet trucks used now. This is a fully electric pallet truck but it also has a brake release, so you can move it even if the battery is discharged. It is so light and easy to move around, a child virtually can operate it easily. (NOT recommended).

This is a 3000lb capacity machine. The forks are 48” x 27” wide. It will raise up to 9” with power. It comes with a 110v charger and draws a very small amount of power using a 110 volt plug. You can simply change out the battery and continue working with the easily replaceable lithium battery. You will get up to 4 hours operating time per charge, depending on the type work you do.

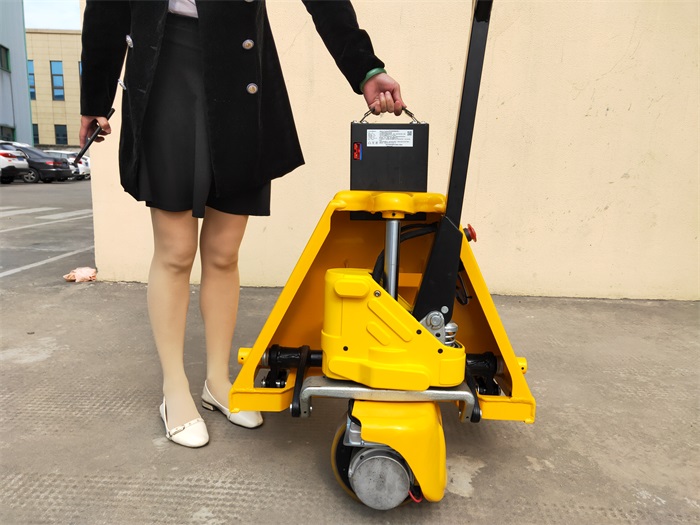

If you are delivering product in a small delivery truck, this is a perfect alternative to the old style hand-operated pallet truck, or the conventional power pallet trucks that are currently available, and it is much smaller. Another bonus is that it is much lighter, so you will have more weight capacity for cargo. ~ Also, you do not need to remove this machine it to charge it up. Just take the battery inside and charge it up…It is ready for work the next day. The battery only weighs 5 lb, so anyone can carry it.

Another nice feature is that you can operate this pallet truck with the tiller arm in the upright position if you are operating inside a very small space, like the inside of a straight truck, and need to turn around with a pallet on it. You just turn it off, put the accelerator handle in the forward position, and turn it back on. You can then operate it with the handle in the upright position.

Manufacturer

SINOLIFT

Model

ET15MH-P

Operator Type

Walkie

Load Capacity

1500kg/3300lbs

Load Center

600mm/24"

Wheelbase

Y

1250mm/1320mm (49.2"/52")

Service Weight

120kg/125kg (264lbs/275lbs)

Overall Height

H1

1280mm (50.4")

Lift Height

H2

200mm/8"

Fork Height (Lowerd)

H3

85mm/3.3"

Overall Length

L1

1620mm/1690mm (63.7"/66.5")

Overall Width

B

540/680mm/ (21"/27")

Fork Size

L2

540x1150mm/680x1220mm (21"x45"/27"x48")

Min. Ground Clearance

H4

23mm (0.9")

Travel Speed (Laden/Unladen)

4/4.5 (2.5/2.8)

Max. Gradeability (Laden/Unladen)

%

8%/20%

Turning Radius

R

1352mm/1422mm (53.2"/56")

Battery Voltage/Capacity

V/Ah

24V/20Ah Li-Ion Battery

Controller

PG
