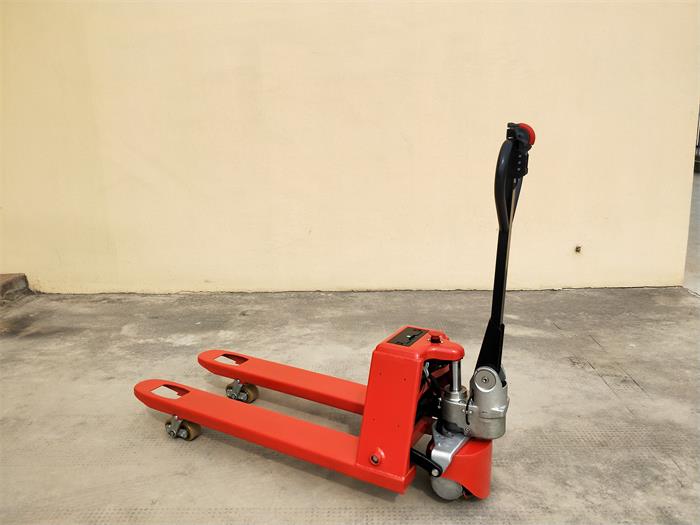

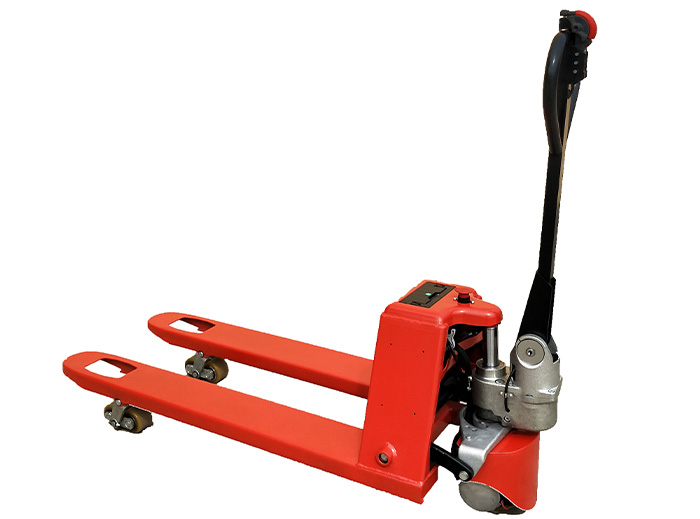

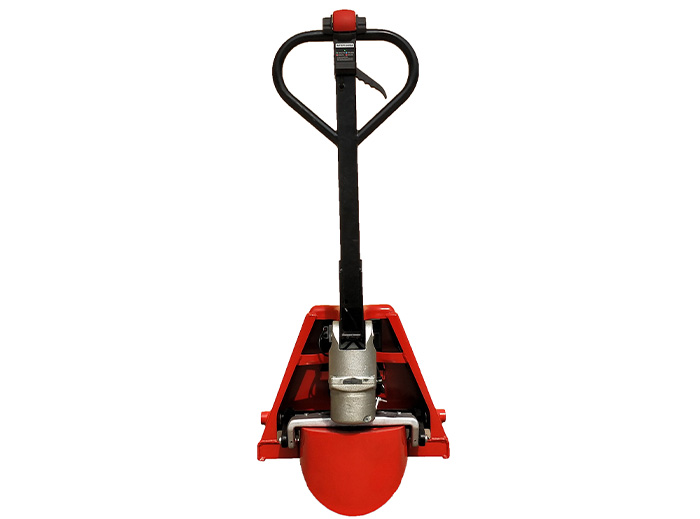

Name:ET20MH-P Full Electric Hybrid Pallet Truck
Model:ET20MH-P
Product Introduction:Can be operated with the tiller arm in the upright position if you are operating inside a very small space, like the inside of a straight truck, and need to turn around with a pallet on it. You just turn it off, put the accelerator handle in the forward position, and turn it back on. You can then operate it with the handle in the upright position. battery and a smaller digital 110 volt fully automatic input charger are included the motor is fully guarded, so you don’t have to worry about any damage that may happen to it during the work.

Innovative and unique multi-function hybrid pallet truck with lift button, optional brake release, electric drive/manual drive and lift button.

Equipped with lithium battery, permanent magnet motor ,gyro-tech adopting handle, quick changing and quick charging, with unique upright moving function, operating in extremely limited space (eg, container, truck etc.);

Gyroscope accelerator (with angle sensor inside), to make the operation more flexible and precise, and ensure the safety and stability greatly.

With the lift button, you don't need to lift the forks by hand, the only thing you need to do is just press the button!

Due to the strong chassis and the well-proven components, this hybrid pallet truck has shown strong performance in all kinds of industries. Whether it is retail, manufacturing or distribution, the ET20MH-P will help reduce strain and pain while increasing efficiency.

Manufacturer

SINOLIFT

Model

ET20MH-P

Operator type

Walkie

Load Capacity (kg)

Q

2000

Load Center (mm)

C

600

Wheelbase (mm)

Y

1202/1272

Service Weight (kg)

125/130

Overall Height (mm)

H1

1280

Lift Height (mm)

H2

195

Fork Height (Lowered) (mm)

H3

85

Overall Length (mm)

L1

1555/1625

Overall Width (mm)

B

540/680

Fork Size (mm)

L2

540x1150/680x1220

Travel Motor

750w

Travel Speed (laden/unladen)

km/h

4/4.5

Max.Gradeability (laden/unladen)

%

5%/20%

Battery Voltage/ Capacity (V/Ah)

V/Ah

24V/20Ah Li-Battery

Turning Radius (mm)

R

1352/1422

Lift Motor

500w
