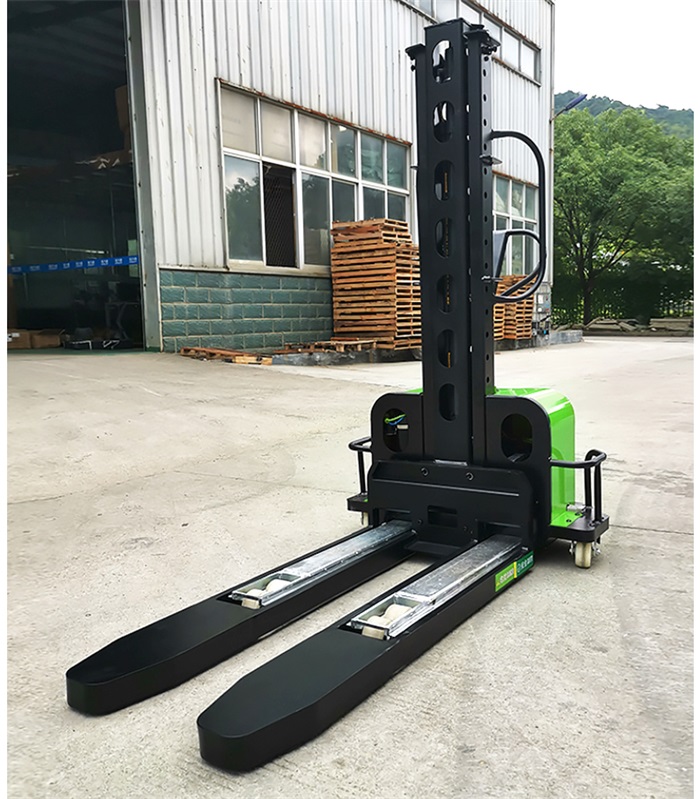

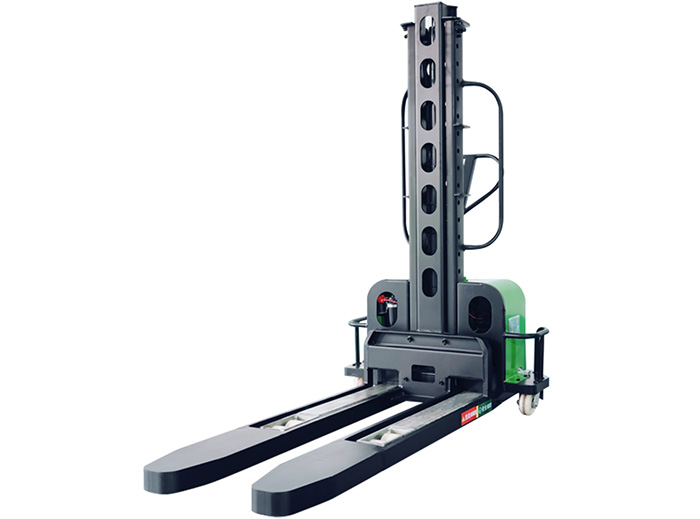

Name：BSL Semi-electric Self Loading Stacker
Model：BSL

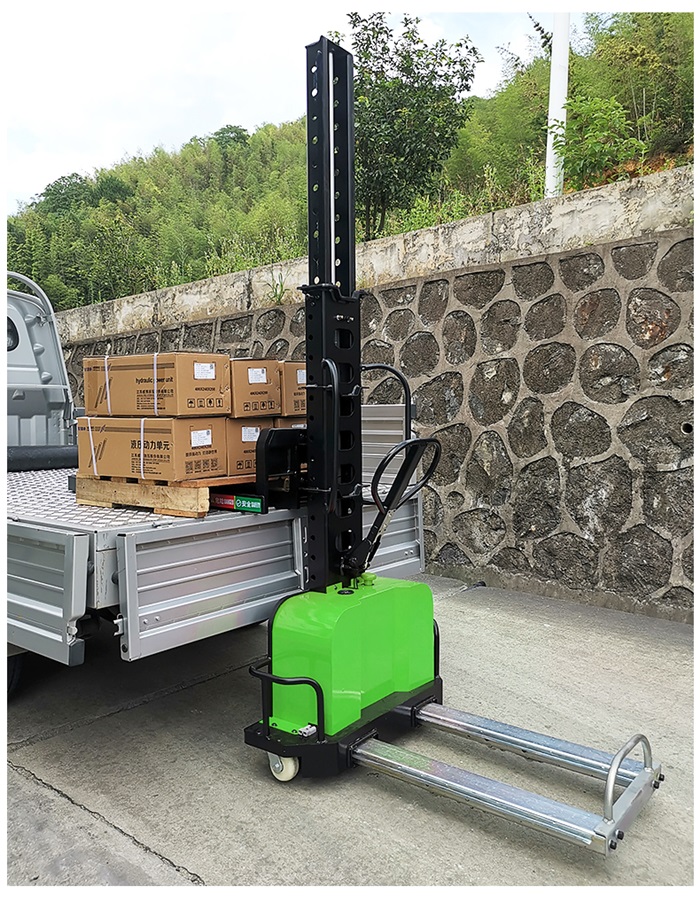

Product Introduction：The BSL Self Loading Stacker has been designed, developed, and built to give outstanding long service with minimum maintenance required within industry and commerce.

· 1. Loading capacity: 500kg,700kg and 1000kg for option, Lifting height is 800mm-1600mm for option.

· 2. The loading is no reduced at max. lifting height,

· 3. The lifting and lowering speed is adjustable.

· 4. Steering chain auxiliary device.

· 5. Over discharge protection, extending battery life.

· 6. Maintenance free battery, safe operation and no pollution.

· 7. Explosion-proof valve make the lowering more stable and reliable

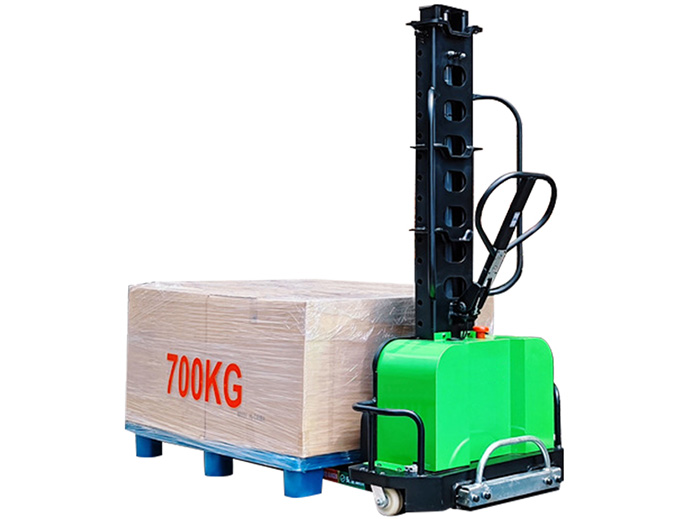

· 8. 700kg stacker adds the armrest to facilitate the lifting of the cargo.

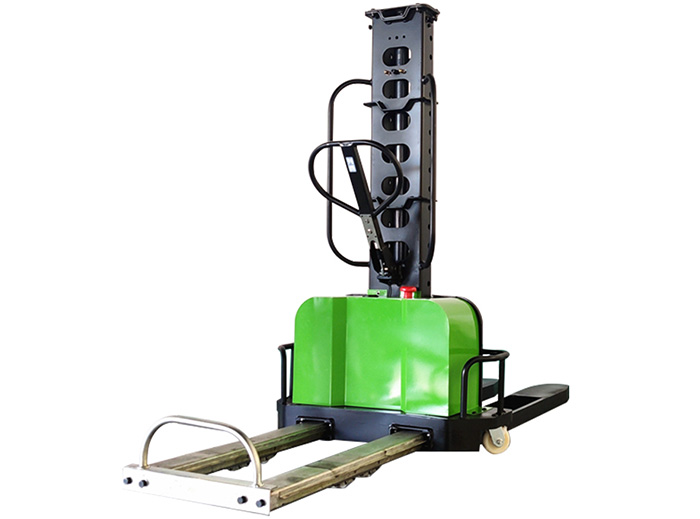

· 9. Add the design of the guide rail, makes pushing and pulling the goods more labor-saving and convenient.

	Model		BSL-05/BSL-07		BSL-10
Performance	Maximum load capacity	kg	500/700	500/700	1000	1000
	Load center	mm	450	450	450	450
	Weight （with battery）	kg	276/286	290/302	337	372
	Maximum lifting height	mm	800	1300	900	1600
	Lifting speed (without load)	mm/s	140	140	65	65
	Lifting speed (with load)	mm/s	135	135	35	35
	Lowered speed (without load)	mm/s	140	140	65	65
	Lowered speed (with load)	mm/s	145	145	35	35
Dimensions	Overall length of frame	mm	1578	1578	1560	1560
	Overall width of frame	mm	885	885	913	913
	Mast lowered height	mm	1495	1595	1750	1950
	Max height(mast lifted with backrest	mm	2760	2860	2985	3185
	Wheelbase	mm	832	832	845
	Fork length	mm	1180	1180	1180	1180
	Fork outside width	mm	565	565	580/626	580/626
	Fork inside width	mm	195	195	236	236
	Fork thickness	mm	60	60	70	70
	width of theoretical minimum aisle for right-angle stacking （1200x1000）	mm	1200	1200	1200	1200
	Min frounf height	mm	20	20	32	32
	Fork lowered height	mm	90	90	90	90
	Minimum turning radius	mm	1000	1000	1000	1000
Tire	Front wheel	mm	80*50	80*50	80*50	80*51
Battery	Hoist motor type		DC
	Rated output	kw	0.8	0.8	1.2	1.2
	Battery Type		Maintenance-free battery
	Voltage	V	12	12	12	12
	Capacity	AH	45	45	45	45
