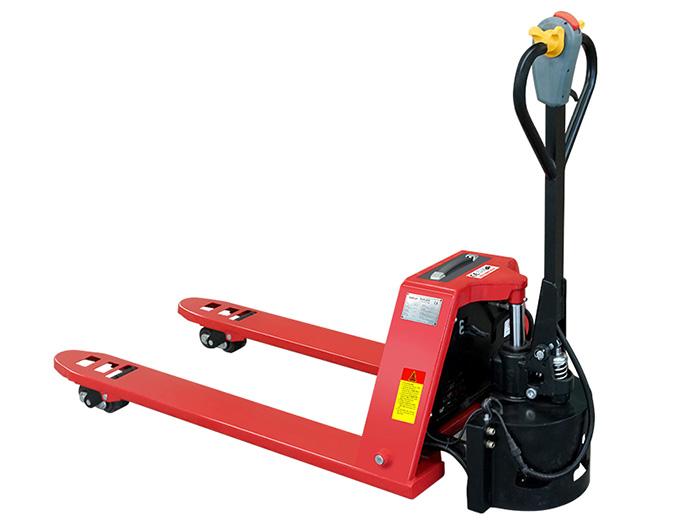

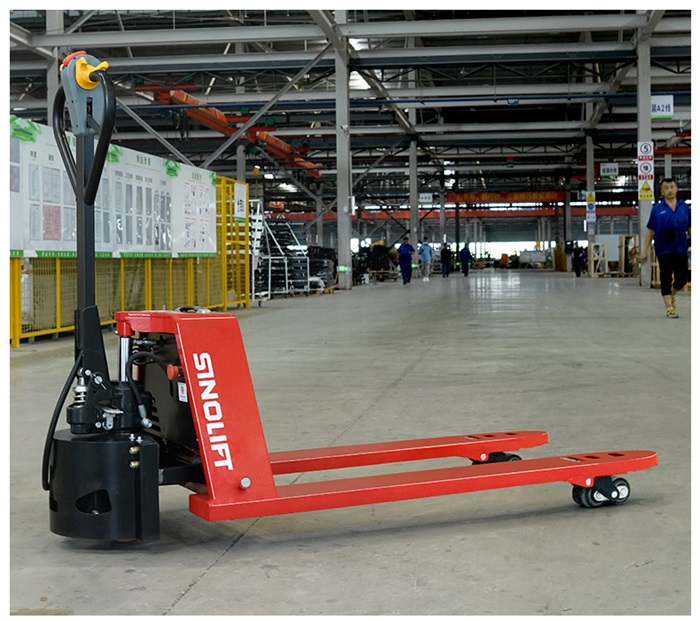

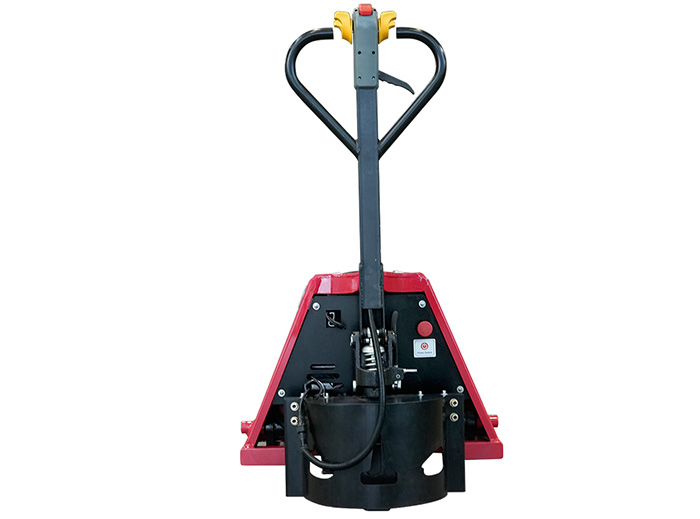

Name：CBD20Li 2T lithium-ion battery pallet jack
Model：CBD20Li
Product Introduction：The CBD20Li is an electric pallet truck with a lithium-ion battery. It is ideal for transporting all kinds of goods over short distances. In contrast to conventional hand pallet trucks, the CBD20Li lifts and moves goods using electrical power. The length to face of forks makes the CBD20Li extremely compact and ideal for use in confined spaces, e.g. in stores and business centers.

Anyone who has used a manual hand pallet jack to move a load over one ton in weight will know that it requires a large amount of pushing or pulling force to start moving the load.

The amount of force needed to manoeuvre loads significantly heavier than the operator can lead to a heightened potential for operators to injure themselves.

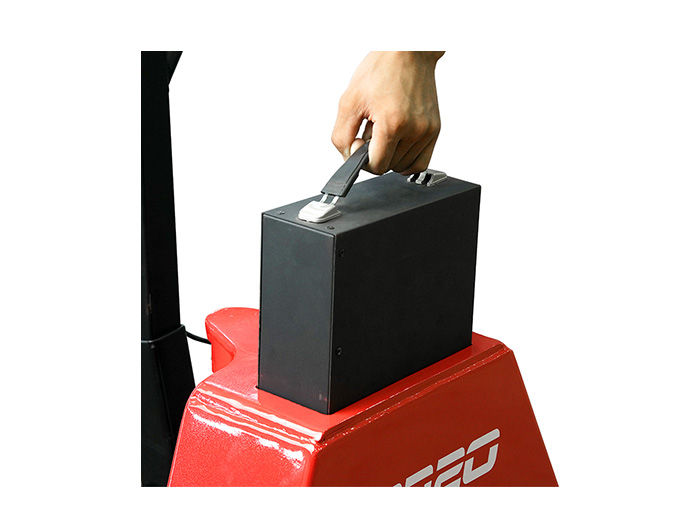

Powered by a rechargeable 48V lithium-ion battery the CBD20Li has a 3.2 hour runtime on a fully charged battery (may differ based on application).

Fully loaded with a 2T payload the unit can travel at speeds up to 4.3 km/h

The SINOLIFT CBD20Li reduces the risk of operator injury by allowing loads to be moved efficiently and safely compared to a manual hand pallet jack.

Manufacturer Brand			SINOLIFT	SINOLIFT
Model			CBD20Li-712	CBD20Li-511
Power Type			Electric	Electric
Type of Operation			Walkie	Walkie
Steering Mode			Mechanical	Mechanical
Load Capacity / Rated Load	Q	kg	2000	2000
Load Center Distance	C	mm	600	600
Wheel Base	y	mm	1318	1248
Total Weight (Include Battery)		kg	135	130
Overall Length	L1	mm	1686	1616
Overall Width	W1	mm	685	550
Fork Dimension	I/e/s	mm	1220 ^x150^x45	1150^x150^x45
Width of Fork	b2	mm	685	550
Min. Fork Height	h3	mm	80	80
Lift Height	h2	mm	195	195
Ground Clearance at Center of Wheelbase	m1	mm	35	35
Height of Operating Handlebar (Max.)	h14	mm	1245	1245
Turning Radius	Wa	mm	1575	1520
Aisle Width for Lengthways (Pallet Size1000*1200)	Ast	mm	2375	2312
Aisle Width for Lengthways (Pallet Size 800*1200)	Ast	mm	2205	2181
Tyre Type			Polyurethane	Polyurethane
Tyre Size (Front)		mm	p 78^x70	p 78 ^x70
Tyre Size (Driving Wheel)		mm	p 160^x50	p 160^x50
Wheels Quantity, Front/Rear(x=Driving Wheel)			2/1x	2/1x
Drive Damping Method			/	/
Traveling Speed (laden/unladen)		Km/h	4.3/4.8	4.3/4.8
Lifting Speed (laden/unladen)		mm/s	20/25	20/25
Lowering Speed (laden/unladen)			?>1s	?>1s
Max.Gradient Performance (laden/unladen)		%	5/10	5/10
Service Brake Type			Electromagnetic	Electromagnetic
Parking Brake Type			Electromagnetic	Electromagnetic
Drive Motor (DC)		Kw	0.8	0.8
Lifting Motor (DC)		Kw	0.8	0.8
Battery Voltage/Capacity K5		V/Ah	48/16	48/16
Battery Weight		kg	6.6	6.6
