Name:Safe Greenhouse harvest trolley with Pipe Rail
Model:GSJT
Product Introduction:Recently, SINOLIFT released GSJT, a new elevation type crop tending trolley. GSJT is electric driving and can achieve hydraulic lifting from platform. It is most suitable for horticulture operation such as pruning and artificial pollination towards high plants like tomato, cucumber and pepper. Comparing with manual operation, it can increase efficiency about 10 times.

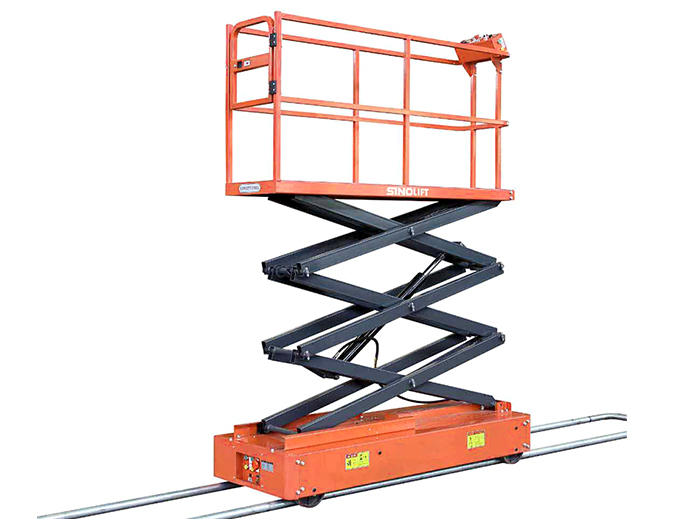

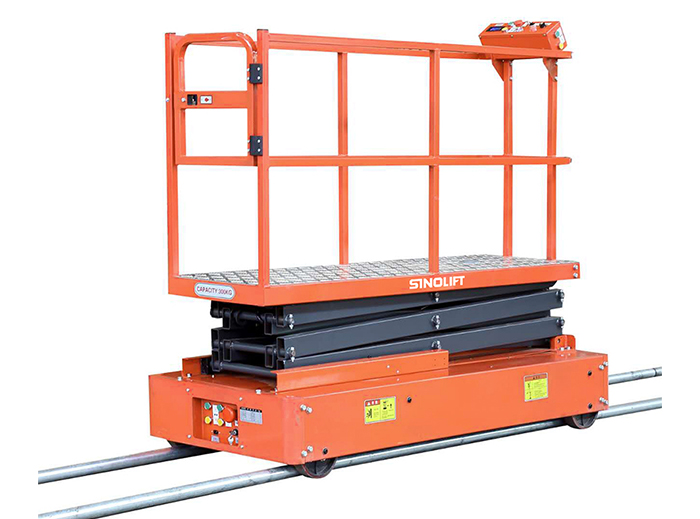

The (electric) pipe rail trolleys are invaluable to the horticultural industry. All machines can thus be moved easily and in a stable manner, which is how the transport mechanism got the name ‘pipe rail trolley’.

The greenhouse picking up machine is powered by traction batteries, can be charged easily with a high-frequency battery charger.

Model Number

GSJT0.2-3

GSJT0.2-4

GSJT0.2-3W

GSJT0.2-4W

Lifting capacity

kg

200

150

200

150

Maximum working height

mm

5000

6000

5000

6000

Maximum platform height

mm

3000

4000

3000

4000

Minimum platform height

mm

600

705

600

705

Whole length

mm

1935

Whole width

mm

770

1020

Whole height

mm

1655

1760

1655

1760

Platform size

mm

1910x510

1910x650

Minimum ground clearance

mm

70

Distance between track centrelines

mm

550

800

Diameter / thickness of track

mm

48/2.5~4.0

Driving Motor

v/kw

24/0.5

Lifting Motor

v/kw

24/2.2

Running speed

km/h

0~3.5

Rising/falling speed

sec

12/14

18/20

12/14

18/20

Battery

V/Ah

2×12/80

2×12/108

Charger

V/A

24/15

Wheel

mm

φ200x50

Overall Net Weight

kg

520

590

590

660

The factory reserves the amending right for the materials And technical specifications.
