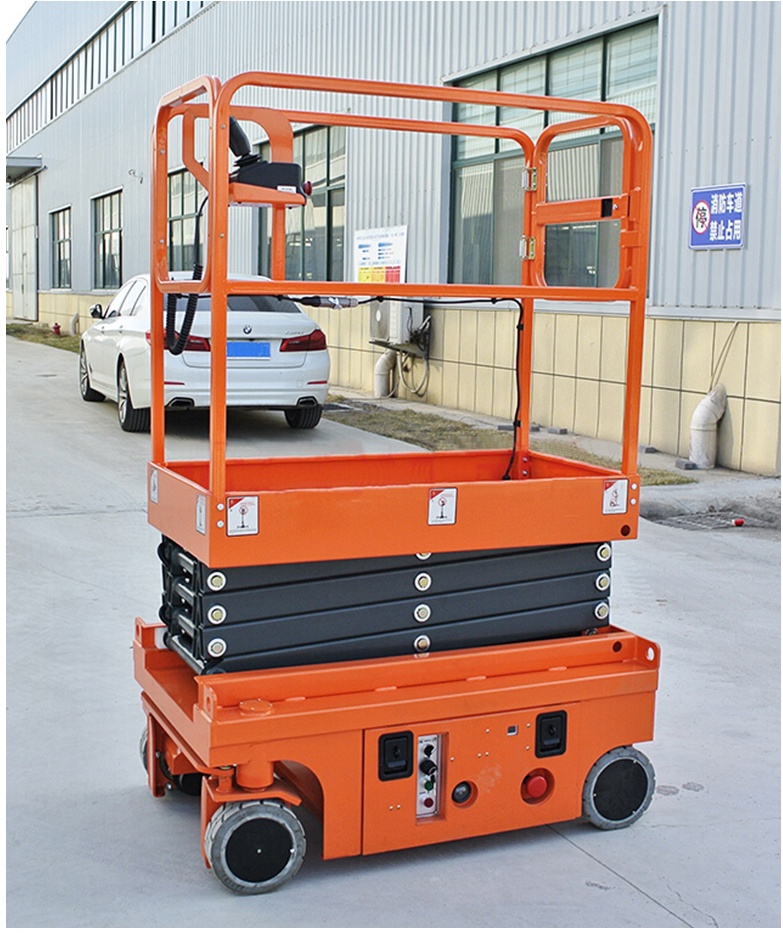

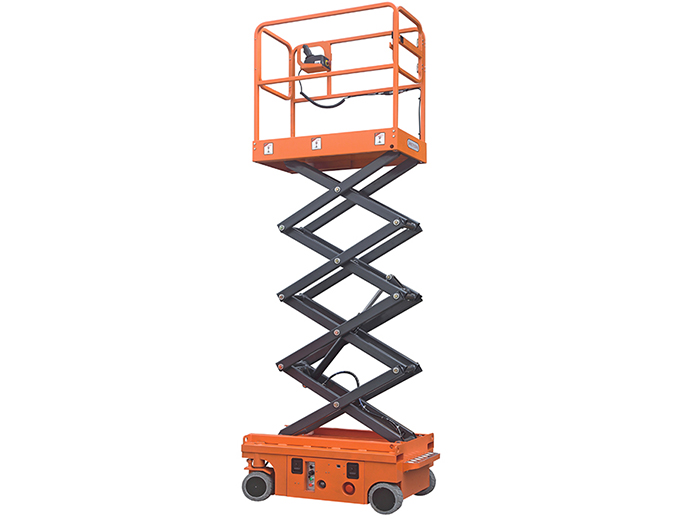

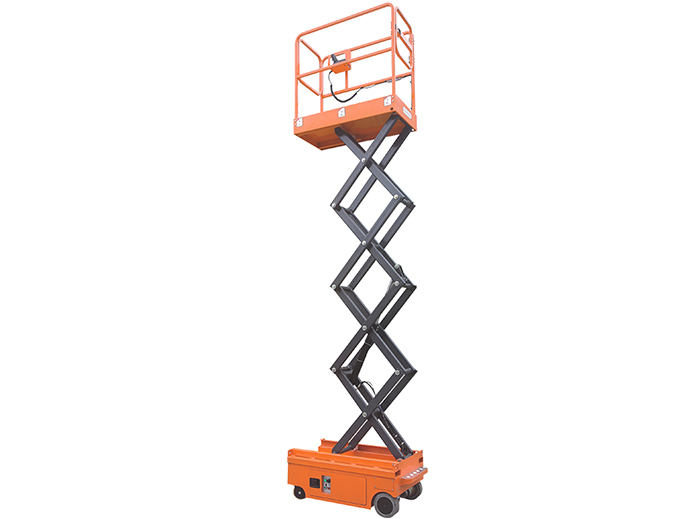

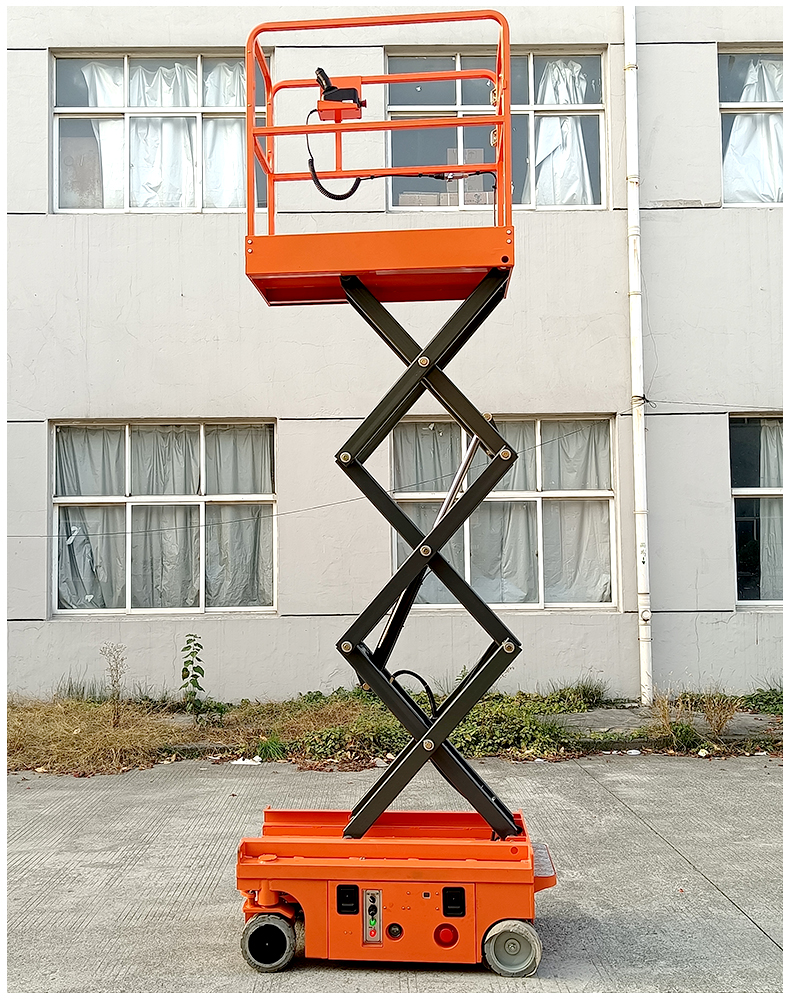

Name：FSJY-YZ Mobile Aerial Work Platform with Hydraulic Steering
Model：FSJY-YZ
Product Introduction：A mobile aerial work platform is an essential piece of equipment when working at height in environments where health and safety are paramount, such as a schools and shopping centres. As well as improving safety, the stability they provide improves efficiency. We supply access work platforms with a lift of up to 3 metres, offering a working height of up to 5 metres.

Main Feature

1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4. The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.

Safety Precautions

1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Hose burst valve safety

5. Rain-proof design electric cabinet

6. Fence on the platform

Model		FSJY3-YZ	FSJY3.9-YZ	FSJY4.8-YZ
Lift Rated Capacity	kg	300	300	300
Maximum working height	mm	5000	5900	6800
Maximum platform height	mm	3000	3900	4800
Overall length(with ladder/without ladder)	mm	1340 / 1250	1340 / 1250	1340 / 1250
Overall width	mm	760	760	760
Overall height	mm	1830	1930	1990
Platform size	mm	1170 x 600	1170 x 600	1170 x 600
Ground clearance	mm	60	60	60
Wheel base	mm	1010	1010	1010
Minimum turn radius	mm	1400	1400	1400
Driving Motor	V/kw	2 x 24/0.4	2 x 24/0.4	2 x 24/0. 4
Lifting Motor	V/kw	24/1.2	24/1.2	24/1.2
Running Speed(platform stowed)	km/h	4	4	4
Running Speed(platform elevated)	km/h	0.8	0.8	0.8
Rising/falling speed	sec	20/30	20/30	20/30
Battery	V/Ah	2 x 12/60	2 x 12/60	2 x 12/60
Charger	V/A	24/10	24/10	24/10
Maximum climbing ability	%	10-15	10-15	10-15
Maximum working allowable angle	/	2°	2°	2°
Driving wheel	mm	φ 230 x 80	φ230 x 80	φ230 x 80
Front wheel	mm	φ230 x 80	φ230 x 80	φ230 x 80
Overall net weight	kg	650	700	930
