Home >> Products >> DYT series Semi-Electric Order Picker

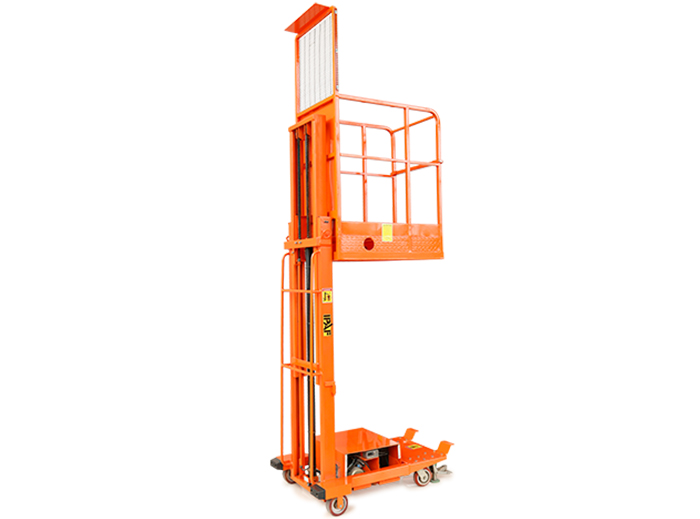

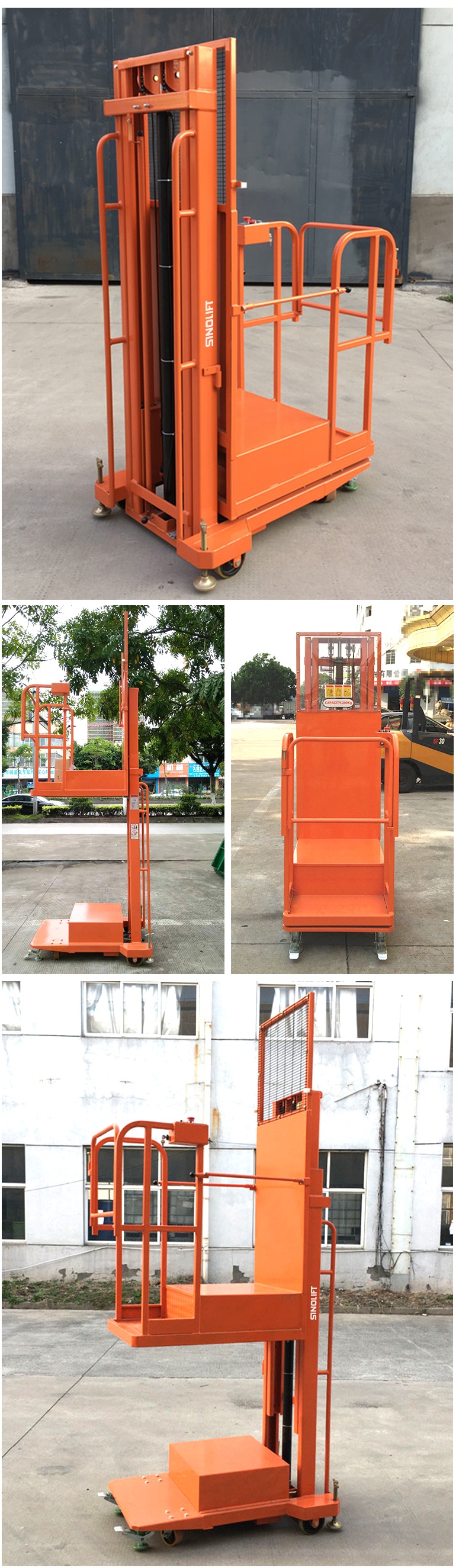

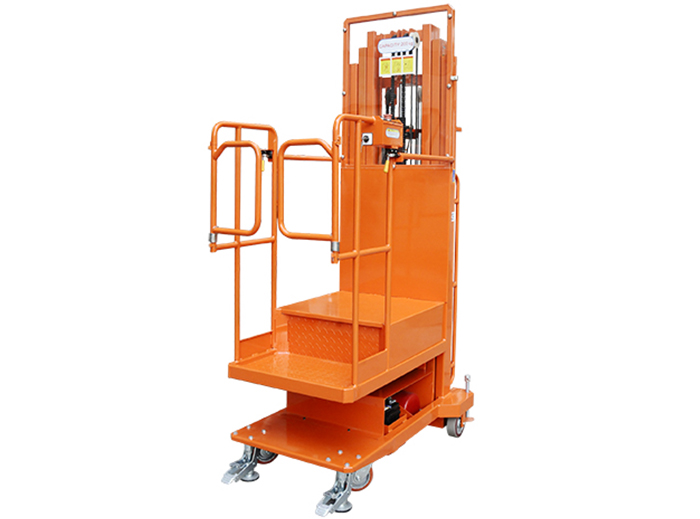

Name：DYT series Semi-Electric Order Picker
Model：DYT

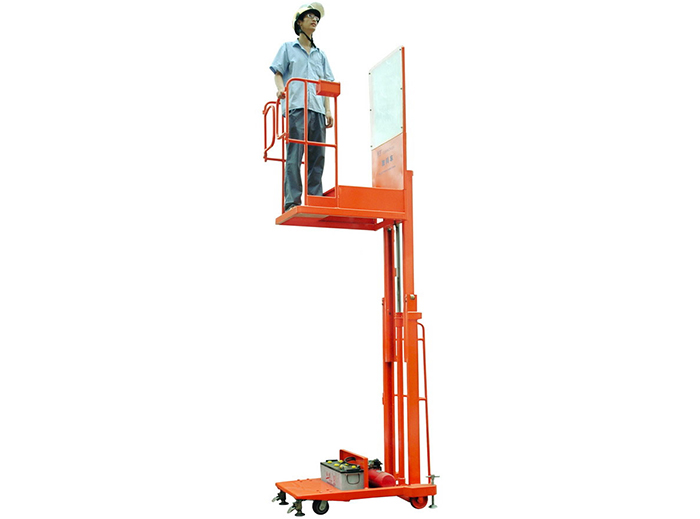

Product Introduction：This Aerial Order Picker has been introduced as a lighter version of battery/electric operated lifting platform with the features that the operator will stand over the rising platform under full protection of railings and go UP by pushing the UP button & come down by pushing DOWN button. The platform can accommodate one person with small packages, tools etc.

This Aerial Order Picker has been introduced as a lighter version of battery/electric operated lifting platform with the features that the operator will stand over the rising platform under full protection of railings and go UP by pushing the UP button & come down by pushing DOWN button. The platform can accommodate one person with small packages, tools etc.

It can also travel short distance manually in shop or warehouse and is very light machine. This is also most conveniently used for working on machines, which are quite high and require handling at heights or more than 2 meters. Moreover, certain operations have to be carried out vertically up and down, for which this is an ideal machine.

Standard Configuration
-Emergency stop button
-Charge lamp
-Double brakes
-Voltage display
-Strut bar for safe overhaul
-Emergency descending button
-Overload limit

Model		DYT200-3.5	DYT200-4.0	DYT200-4.5
Rated capacity	kg	200
Max working height	mm	5500	6000	6500
Max platform height	mm	3500	4000	4500
Overall length	mm	1300
Overall width	mm	840
Overall height	mm	1660	1830	1990
Platform size	mm	900X600
Ground clearance	mm	30
Wheelbase	mm	770
Lift motor		12VDC/1.5kw
Raising/Falling speed	sec	15/17	18/20	21/23
Battery		12V/120Ah
Charger		12A/15A
Rear wheel	mm	150×40
Front wheel	in	5
Overall weight	kg	265	315	365
