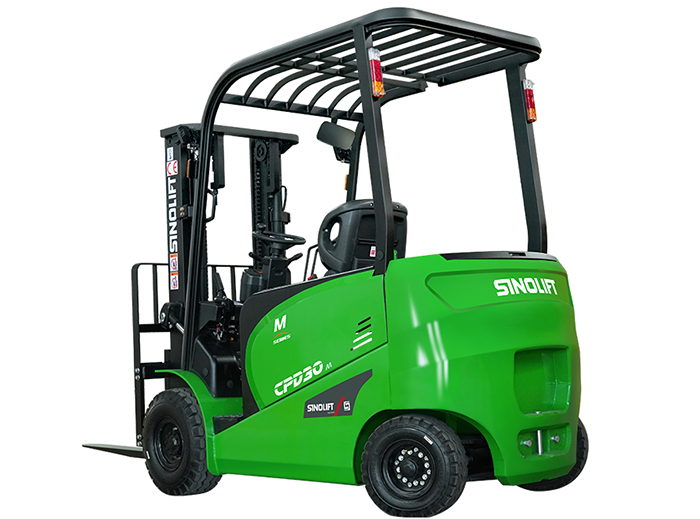

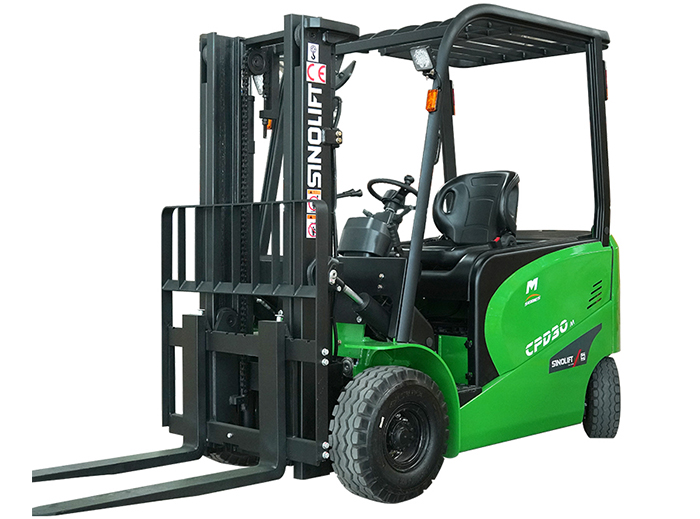

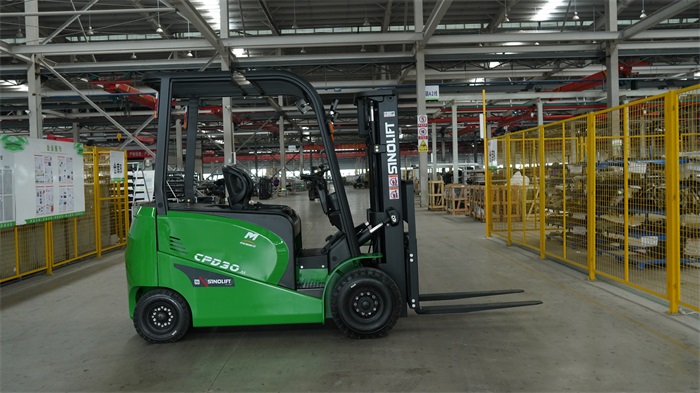

Name:CPD30M CPD35M Electric Forklift Truck Integrated lithium Battery
Model:CPD30M CPD35M
Product Introduction:The CPD30M CPD35M is engineered around a fully integrated, space-saving, lithium-ion battery. This approach frees space in the operator compartment and equips operations with the full advantages of lithium-ion power, including no emissions, no maintenance, full power until depletion and simple, fast charging.

Parameters

  • Characteristics
  • SINOLIFT 3T electric counterbalance forklift trucks have gained ISO9000 certification and CE certification.

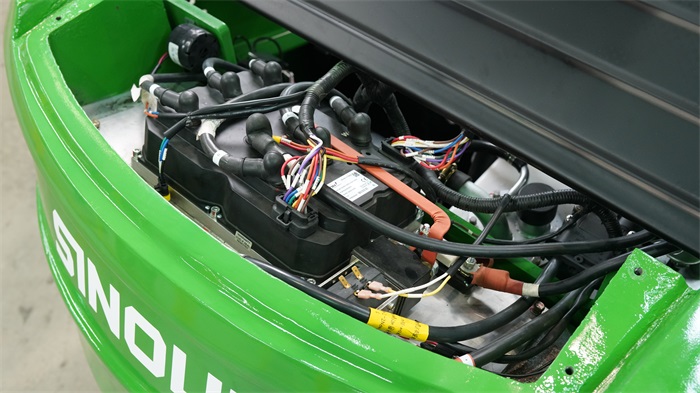

  • This forklift is installed with AC walking controller and AC motor that own good performance. It adopts domestic famous high performance AC motor and imported US CURTIS AC controller that are of high quality, reliability and durability.
  • Our 3 ton electric forklifts generate almost no noise while operation. Low-noise gear oil pump, hoisting noise and traveling noise is ultimately reduced. They are more eco-friendly.
  • SINOLIFT electric counterbalance forklift truck is of high reaction sensitivity. Accelerator is adopted for highly efficient working.
  • Our company owns a technical development team who pursuits the best cost-effective products and provides high quality and timely service.
  • 3 ton electric forklift possesses compact body structure. It is simple and convenient to operate.
  • The getting-on pedal and suspending seat can reduce drivers' fatigue and make them feel more comfortable.
  • Our company provides 24 hours after-sales service and a full range of accessories for electric counterbalance forklift trucks.

Main Components
3 ton electric forklift mainly consists of power unit, transmission, steering device, working device, hydraulic system and brake device.

  • Attentions
  • 3T electric counterbalance forklift truck is suitable for indoor logistics transport.
  • Only drivers who have been trained and have got driving licenses can drive this forklift.
  • Check each control and alarm device before driving it. If there is damage or defect, it must be operated after repair.
  • When the 3 ton electric forklift loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.
  • Stable starting, steering, driving, braking and stopping are quite necessary. When we drive this electric counterbalance forklift truck on wet or slippery road, we need to slow down while steering.
  • Material handling should not exceed the specified load. The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.

Packaging and Transportation
Shipping By Container.

Manufacturer Brand

SINOLIFT

Model

CPD30-MA1

CPD30-MA1S

CPD35-MA1Li

CPD35-MA1LiS

Power Type

Electric

Electric

Electric

Electric

Operation Type

Seated

Seated

Seated

Seated

Rated Capacity

Q

kg

3000

3000

3500

3500

Load Centre

c

mm

500

500

500

500

Front Overhang

L2

mm

480

480

485

485

Wheelbase

L1

mm

1685

1685

1685

1685

Mast Tilt Angle

α/β

°

6/10

6/10

6/10

6/10

Mast Lowered Height

H1

mm

2080

2080

2080

2080

Free Lift Height

H3

mm

150

150

150

150

Standard Mast Lift Height

H

mm

3000

3000

3000

3000

Mast Extended Height

H2

mm

4251

4251

4251

4251

Overhead Guard Height

H4

mm

2125

2125

2125

2125

Distance from Botoom to Seat

mm

1070

1070

1070

1070

Traction Bolt Height

mm

303

303

303

303

Overall Length (include forks)

L

mm

3645

3645

3650

3650

Length to Face of Fork

L'

mm

2575

2575

2580

2580

Overall Width

W1

mm

1265

1265

1360

1360

Fork Size

TxWxL4

mm

40/125/1070

40/125/1070

45/125/1070

45/125/1070

Fork Type

ISO2328 3A

ISO2328 3A

ISO2328 3A

ISO2328 3A

Fork Carriage Outline Width

mm

1100

1100

1100

1100

Fork carriage Spread Width

W5

mm

250-1050

250-1050

250-1050

250-1050

Ground Clearance Under Mast Laden

H5

mm

115

115

115

115

Ground Clearance at Center of the Wheelbase

H6

mm

120

120

120

120

Min. Right Angle Stacking Aisle Width (Pallet 1000x1000)

Ast

mm

3855

3855

3855

3855

Min. Right Angle Stacking Aisle Width (Pallet 1200x1200)

Ast

mm

4055

4055

4055

4055

Turing Radius

r

mm

2230

2230

2230

2230

Service Weight

kg

4700

4760

5150

5220

Front Axle Rated Load Capacity with Laden

kg

6965

6990

7790

7810

Rear Axle Rated Load with Laden

kg

735

770

860

900

Rated Load Capacity with Unladen

kg

2220

2240

2245

2265

Rear Axle Rated Load with Unladen

kg

2480

2520

2905

2955

Tyre Type

Pneumatic

Pneumatic

Cushion

Cushion

Tyre Size (Front)

23×9-10-18PR

23×9-10-18PR

23x10-12

23x10-12

Tyre Size (Rear)

18x7-8-14PR

18x7-8-14PR

18x7-8

18x7-8

Wheel Number (x=Drive Wheel)

2x/2

2x/2

2x/2

2x/2

Front Tread

mm

1058

1058

1124

1124

Rear Thread

mm

955

955

955

955

Max. Travel Speed (Laden/Unladen)

km/h

13.5/14.5

13.5/14.5

13.5/14.5

13.5/14.5

Lifting Speed (Laden/Unladen)

mm/s

210/400

210/400

210/400

210/400

Lowering Speed (Laden/Unladen)

mm/s

350/350

350/350

350/350

350/350

Max. Gradeability (Laden/Unladen)

%

15/20

15/20

15/20

15/20

Service Brake Type

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Parking Brake Type

Mechanical

Mechanical

Mechanical

Mechanical

Drive Motor Rating S2 60min

kW

16.6

16.6

16.6

16.6

Lifting Motor Rating at S315%

kW

13/13.5

13/13.5

13/13.5

13/13.5

Battery Voltagl/Capacicty K5

V/Ah

80/500

80/500

83.2/405

83.2/405

(Max.600)

(Max.600)

Battery Weight

kg

1350

1350

280

280

1350-1550

1350-1550

280-350

280-350

Maximum Allowable Battery Size

mm

675x780x964

675x780x964

675x780x964

675x780x964

Controller Brand

CURTIS

CURTIS

CURTIS

CURTIS

Controller Model

1236SE+1234SE

1236SE+1234SE

1236SE+1234SE

1236SE+1234SE

Attachment Pressure

bar

140

140

140

140

Attachment Oil Volume

L/min

65

65

65

65

Hydraulic Oil Tank Volume

L

>=22

>=22

>=22

>=22

Sound Level at Driver's Ear According to EN 12 053

dB

72

72

72

72
