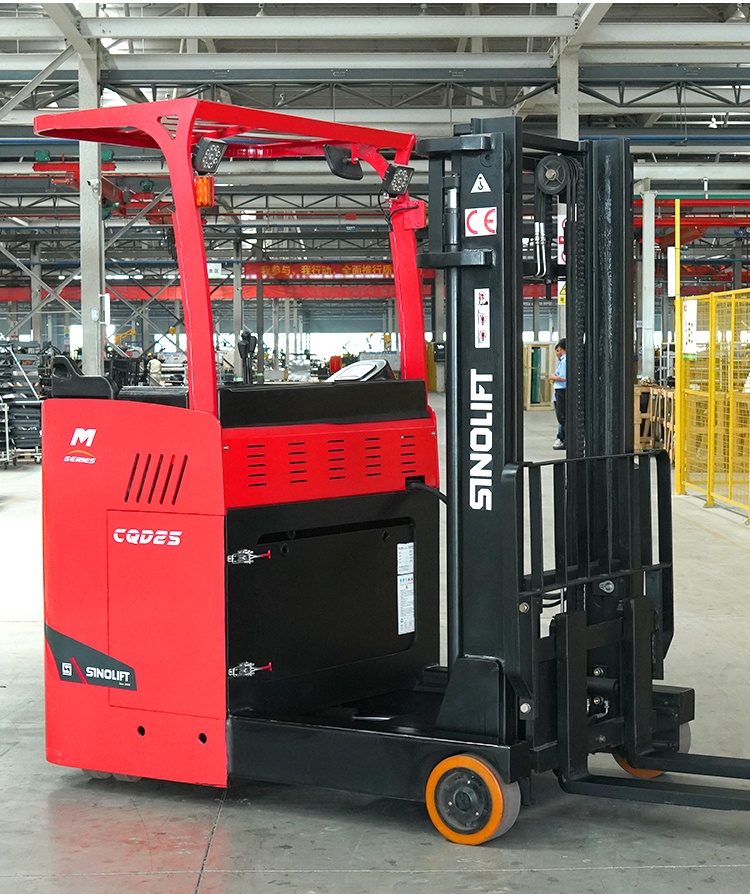

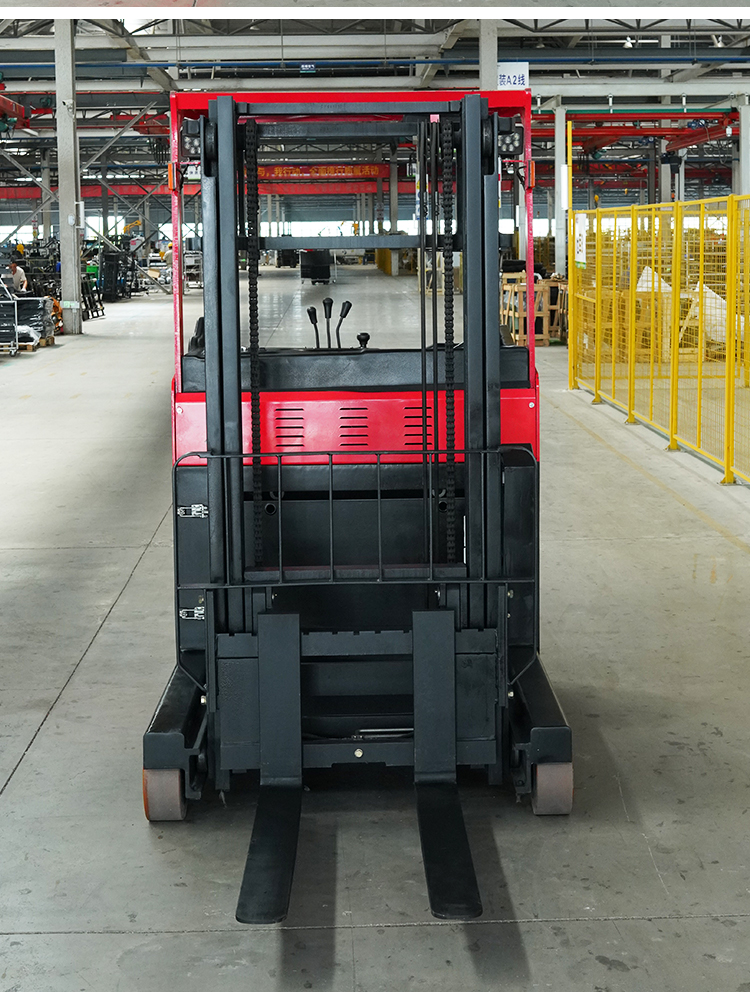

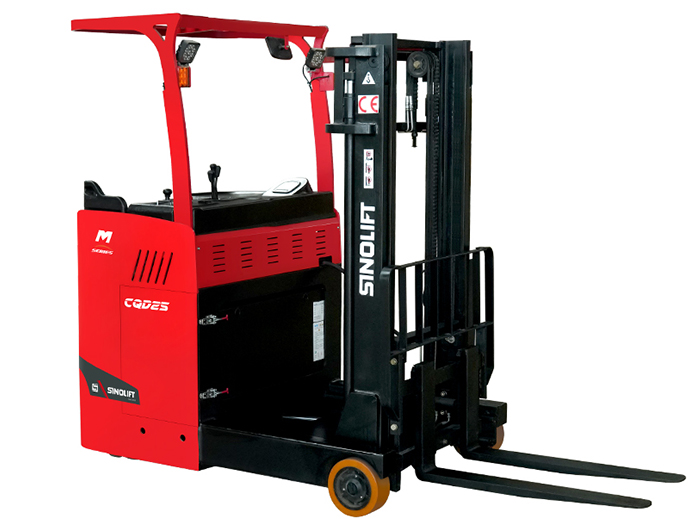

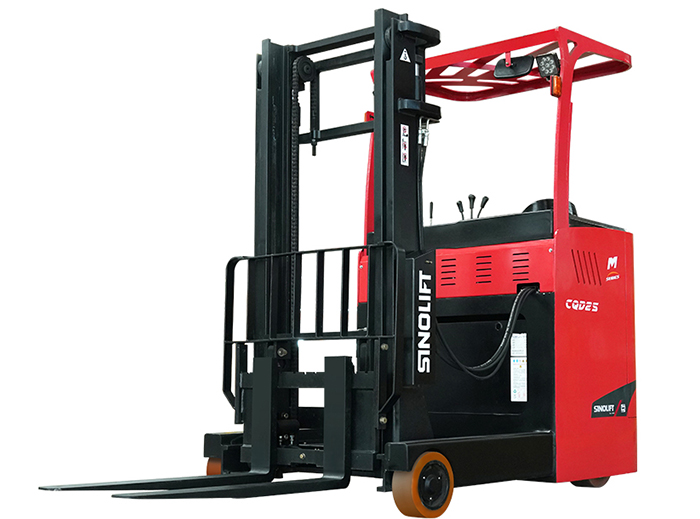

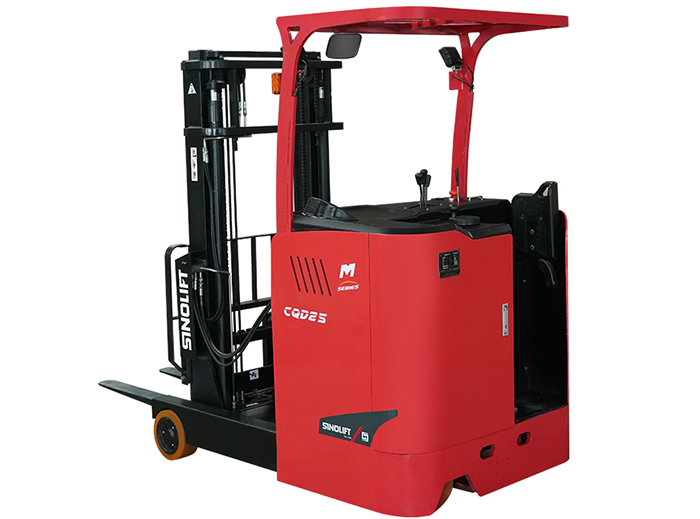

Name：Sinolift Narrow aisle CQD15B 20B Electric Reach stand Forklift Truck
Model：CQD15B 20B
Product Introduction：The industrial reach forklift truck is known for their maximum lift height capacity. They are called as such because among all the other forklifts, they are able to reach heights more than its legs and it can operate even in harsh work environments. In addition to this, they also have high maneuverability. Its design of having stabilizing legs and batteries does not make it need to have a counterweight.

The industrial reach forklift truck is known for their maximum lift height capacity. They are called as such because among all the other forklifts, they are able to reach heights more than its legs and it can operate even in harsh work environments. In addition to this, they also have high maneuverability. Its design of having stabilizing legs and batteries does not make it need to have a counterweight.

Some industrial reach forklift trucks have a mechanism allowing its cab to tilt, enabling the operator to have a more convenient position while viewing. Others have a camera in the cab that is equipped with an LCD screen, while some have an open overhead guard.

Stand-up trucks are the most common type. This type of forklift operates by having the two forks on the front of truck slide beneath the loads to carry and move. They are used in areas where there is only one load per bay. Double-deep trucks have longer forks than stand-up trucks, and they are ideal for warehouses where a lot of pallet loads are stored in each bay.

"Human sensible" we pursue a comfortable operation feel that goes one step further.

"Energy saving “we will offer our customers an eco-friendly materials handling environment.

"Smooth turn" we support our customers in greater efficiency of the logistics operations.

Manufacturer Brand	SINOLIFT
Model			CQD15B	CQD20B
Power Type			Electric	Electric
Type of Operation			Stand-on	Stand-on
Steering Mode			Electric Power Steering
Load Capacity/Rated Load	Q	kg	1500	2000
Load Center Distance	c	mm	500	500
Load Distance. center of drive axle to fork	x	mm	160	160
Wheelbase	y	mm	1375	1525
Total Weight (with Battery)		kg	2700	2900
Axle Load (laden):Drive side/Load-bearing Side		kg	/	/
Axle Load (unladen):Drive side/Load-bearing Side		kg	/	/
Overlength (Mast Reached/Mast Retracted)	L1/L2	mm	2820/2355	2970/2360
Frame Length (Without Fork)	L	mm	1760	1910
Overall Width	W1	mm	1270	1270
Height of Overhead Guard	h7	mm	2260	2260
Lift Height	h1	mm	3000	3000
Height with Mast Lowered	h2	mm	2100	2100
Height with Mast Extended	h4	mm	3900	3900
Free Lift Height	h5	mm	L	L
Fork Dimension	I/e/s	mm	1070/100/35	1070/122/40
Type of Fork Carriage A, B Class			2A	2A
Fork Spread Width	b2	mm	225-820	250-820
Fork Carriage Width		mm	868	868
Fork Tilt (Forward/Backward)	a/B	°	3/5	3/5
Distance of Straddle Leg	b3	mm	920	920
Reach Distance	L3	mm	465	610
Height of Straddle Leg	h6	mm	310	310
Ground Clearance at The Center of Wheelbase (Min)	m1	mm	80	80
Turning Radius	Wa	mm	1675	1820
Aisle Width for Pallets 1000 x 1200	Ast	mm	2860	2880
Aisle Width for Pallets 800 x 1200	Ast	mm	2810	2825
Tyre Type			Polyurethane	Polyurethane
Tyre Size (Front)		mm	Ø267X114	Ø267X114
Tyre Size (Auxiliary Wheel)		mm	Ø180X55	Ø180X55
Tyre Size (Driving Wheel)		mm	Ø343X135	Ø343X135
Wheels Quantity, front/rear (x=Diving Wheels)			2/1x+2	2/1x+2
Traveling Speed (laden/unladen)		Km/h	10/12	10/12
Llfting Speed (laden/unladen)		mm/s	270/375	270/375
Lowering Speed(aden/unladen)		mm/s	300/270	310/260
Max. Gradient Performance S2 5min (laden/unladen)		%	10/15	10/15
Service BrakeType			Electromagnetic	Electromagnetic
Parking Brake Type			Electromagnetic	Electromagnetic
Drive Motor Rating (AC) S2-60min		kW	6.5	6.5
Lift Motor Rating (AC)S3-15%		kw	12	12
Battery Voltage/Capacity K5		V/Ah	48/350	48/400
Battery Weight		kg	650	710
Controller Brand			CURTIS	CURTIS
Controller Model			2-1234SE+1222	2-1234SE+1222
Sound Level Driver's Ear According to EN 12053		dB	70	70
Battery Change			Side Roll Out	Side Roll Out
