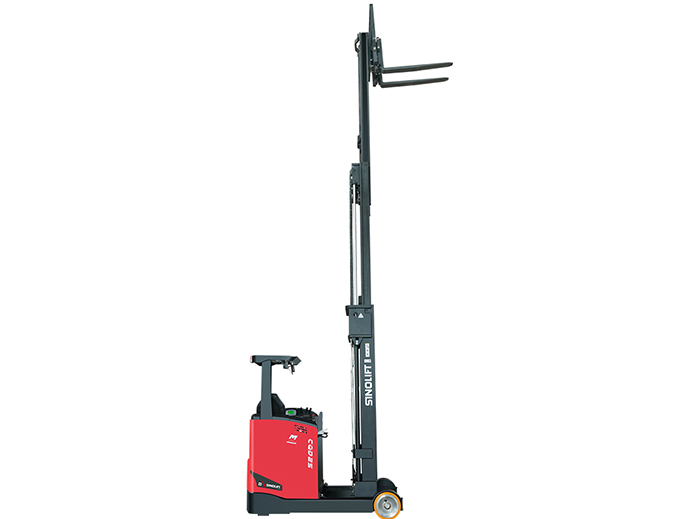

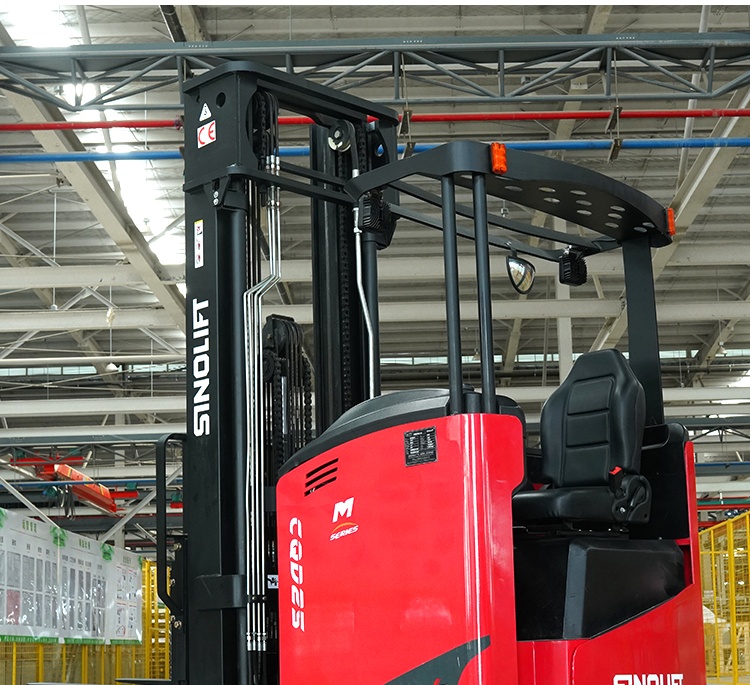

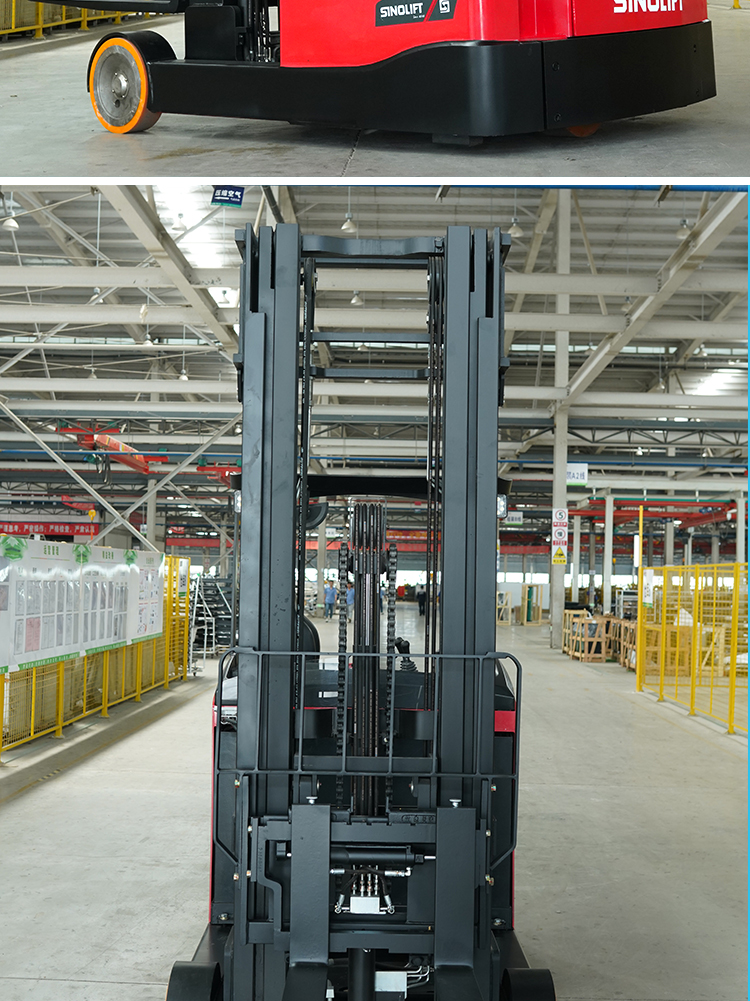

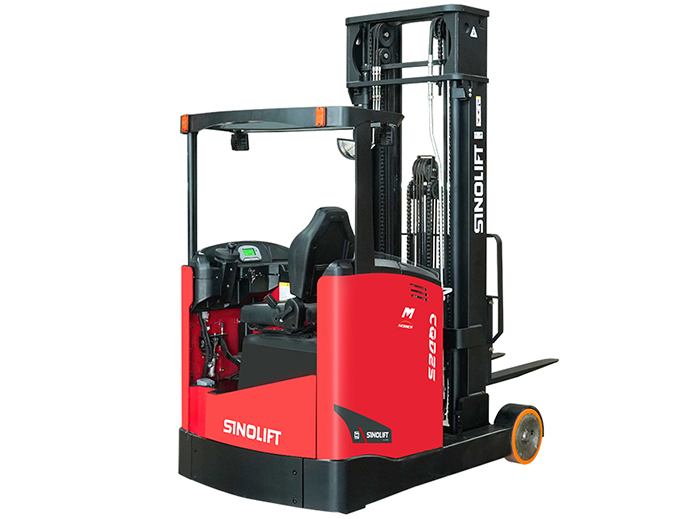

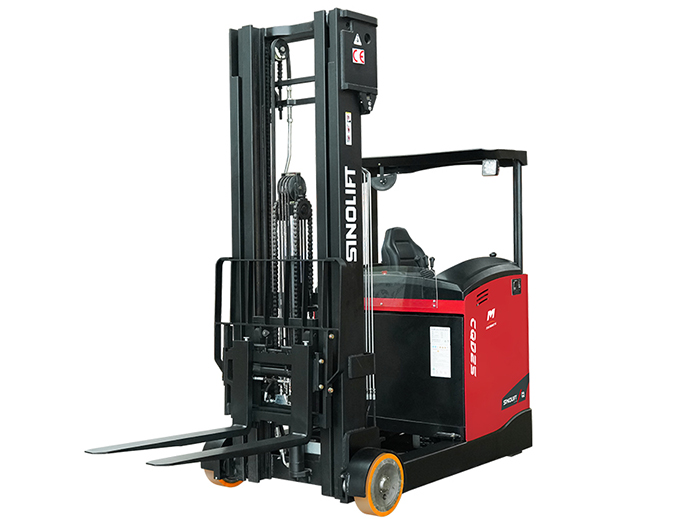

Name:CQD25A Movable Mast 2.5t Electric reach truck, Battery-powered reach truck
Model:CQD25A
Product Introduction:The CQD Series reach trucks offer a new dimension of efficiency, energy savings and performance.

The CQD Series reach trucks offer a new dimension of efficiency, energy savings and performance.

SINOLIFT's intelligent system for speed reduction in turns recognizes whether the operator is driving into or out of a curve, analyzing steer tire angle, driving direction and steering direction, and automatically adjusts speed and acceleration for maximum safety and performance.

Each reach forklift is configured to provide the optimum chassis/battery/mast combination according to the requirements of the application.

The CQD series has a number of standard configuration details enhancing safety and productivity when the equipment is in use:

No-wear support arm brake

Tilting Fork carriage

High travel speed (up to 10 km/h)

Electronic 180° or 360° steering

Support arm rollers with protective guards

Lateral battery removal via rollers

Battery feed for easy maintenance

1.1

Manufacturer Brand

                  SINOLIFT

1.2

Model

CQD25A

1.3

Power Type

Electric

1.4

Type of Operation

Seated

1.5

Steering Mode

Electric Power Steering

1.6

Load Capacity/Rated Load

Q

  kg

2500

1.7

Load Center Distance

c

mm

600

1.8

Load Distance. center of drive axle to fork

x

mm

160

1.9

Wheelbase

y

mm

1600

2.1

Total Weight (with Battery)

kg

3800

2.2

Axle Load (laden):Drive side/Load-bearing Side

kg

/

2.3

Axle Load (unladen):Drive side/Load-bearing Side

kg

/

3.1

Overlength (Mast Retracted)

L1

mm

2470

3.2

Frame Length (Without Fork)

L7

mm

2040

3.3

Overall Width

b2

mm

1270

3.4

Height of Overhead Guard

  h6

mm

2160

3.5

Lift Height

h3

mm

6500

3.6

Height with Mast Lowered

h1

mm

2856

3.7

Height with Mast Extended

h4

mm

7530

3.8

Free Lift Height

h5

mm

2260

3.9

Fork Dimension

I/e/s

mm

1070/122/40

3.1

Type of Fork Carriage A, B Class

2A

3.11

Fork Spread Width

mm

250

3.12

Fork Carriage Width

mm

820

3.13

Fork Tilt (Forward/Backward)

a/B

°

2/4

3.14

Distance of Straddle Leg

b3

mm

924

3.15

Reach Distance

L4

mm

650

3.16

Height of Straddle Leg

 h6

mm

310

3.17

Ground Clearance at The Center of Wheelbase (Min)

m1

mm

80

3.18

Turning Radius

Wa

mm

1915

3.19

Aisle Width for Pallets 1000 x 1200

Ast

mm

2952

3.20

Aisle Width for Pallets 800 x 1200

Ast

mm

2997

4.1

Tyre Type

Polyurethane

4.2

Tyre Size (Front)

mm

  Ø350X100

4.3

Tyre Size (Auxiliary Wheel)

mm

  Ø180X55

4.4

Tyre Size (Driving Wheel)

mm

Ø343X140

4.5

Wheels Quantity, front/rear (x=Diving Wheels)

  2/1x+2

5.1

Traveling Speed (laden/unladen)

Km/h

10/10.5

5.2

Llfting Speed (laden/unladen)

m/s

0.35/0.6

5.3

Lowering Speed(aden/unladen)

m/s

0.5/0.5

5.4

Max. Gradient Performance S2 5min (laden/unladen)

%

10/15

5.5

Service BrakeType

Hydraulic

5.6

Parking Brake Type

Electromagnetic

6.1

Drive Motor Rating (AC) S2-60min

kW

6.5

6.2

Lift Motor Rating (AC)S3-15%

kw

13

6.3

Battery Voltage/Capacity K5

V/Ah

  48/600

6.4

Battery Weight

kg

650

7.1

Controller Brand

CURTIS

7.2

Controller Model

2-1234SE+1222

7.3

Sound Level Driver's Ear According to EN 12053

  dB

70

7.4

Battery Change

Side Roll Out
