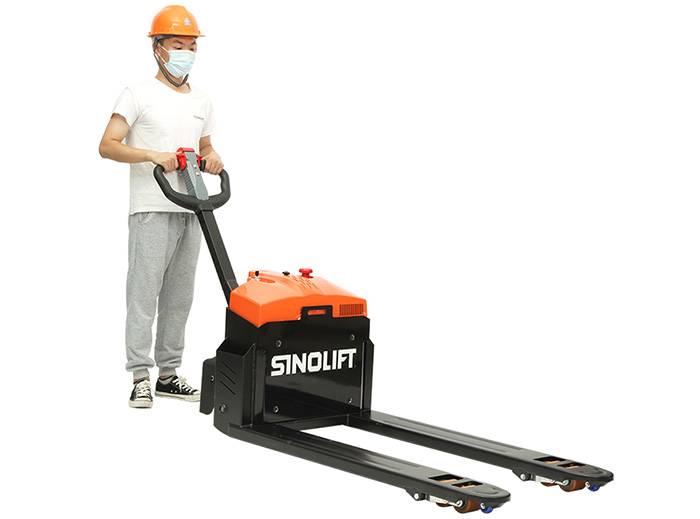

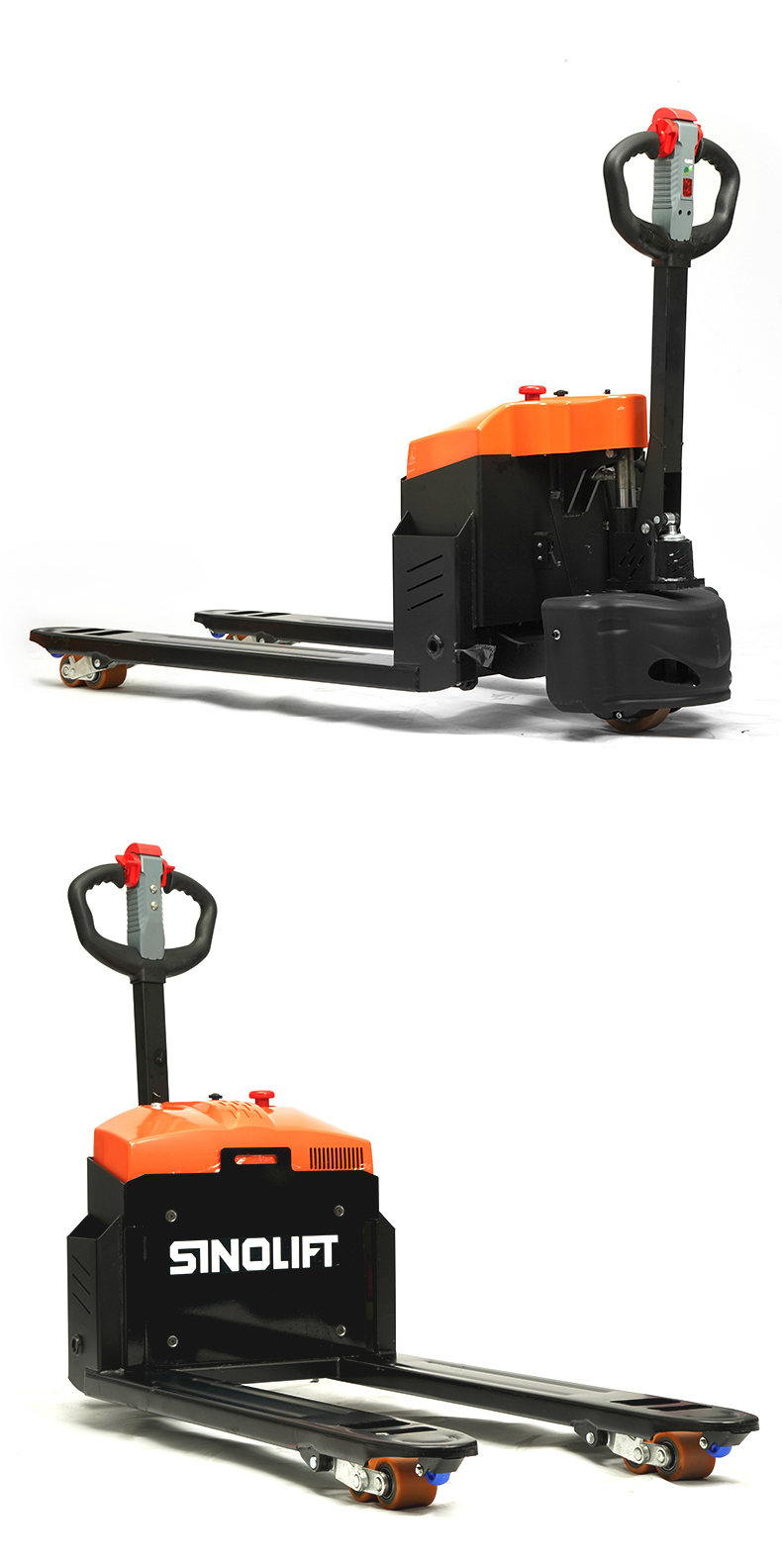

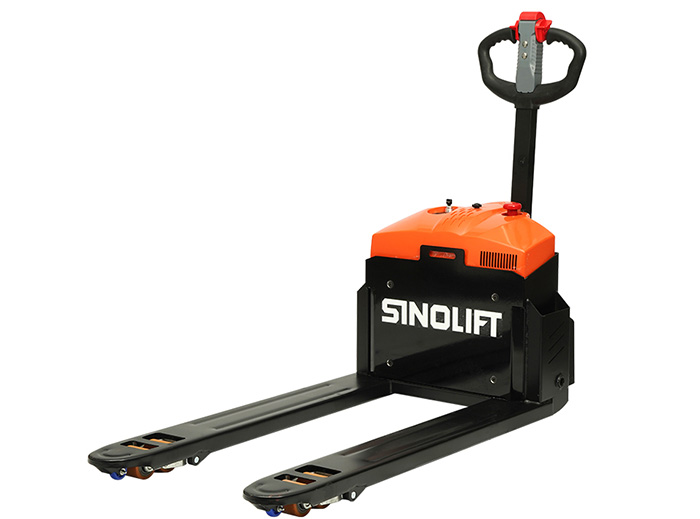

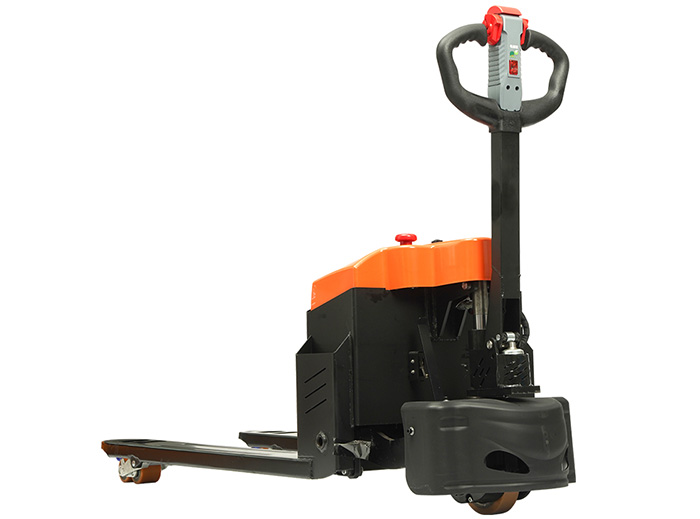

Name:EPT25V Electric Power Pallet Truck for Heavy-Duty Industrial
Model:EPT25V
Product Introduction:Self-Propelled Electric Pallet Jack Truck. Equipped with polyurethane drive and load wheels, this electric pallet jack rolls smoothly on surfaces in warehouses, grocery stores, material handling and distribution centers. With just the push of a button, the permanent-magnet pump motor and chrome plated lift cylinder provide smooth lifting and lowering of pallet loads of up to 2,500 kg.

Automatic Pallet Jack, EPT25V Electric Power Pallet Truck for Heavy-Duty Industrial

An ergonomic handle reduces worker strain and features dual butterfly thumb controls with infinite forward and reverse speeds, lift and lower controls, a safety belly reverse button, and a horn. The automatic dead-man emergency brake cuts power when the handle is released.

HEAVY DUTY INDUSTRY: This Electric Walkie Pallet Jack is designed for heavy-duty loads, such as lifting, moving, transporting pallets in warehouse. It features an electric lift pump, with built-in battery and charger along with Curtis controls.

STRONG AND POWERFUL: It features strong climbing ability with separate excitation motor; Electric power steering system makes operation easy and low noise; Electromagnetic, regenerative braking system ensures operation safe.

AUTOMATIC PROTECTION: Automatic lifting limit to extend motor and battery life; Controller with multiple automatic protection; Emergency reversing/emergency brake switch.

EASY AND FLEXIBLE: With its compact and single wheel design for small turning radius, it is flexible and convenient to maneuver; Step-less speed control system is very easy to use.

12 MONTH WARRANTY: 12-month warranty and life time technical support. Buy with confidence.

Model

EPT25V

Rated load capacity

2500Kg

Distance of load center

500

Minimum fork height

80

The front wheel

80*70

The rear wheel

170*60

Maximum height of lift

200mm

The overall length

1714mm

The goods fork length

1.2m

Pallet fork size

160mm

Overall fork width

685mm

Turning radius

1445/1515

Operating speed, load/no-load

5.3/5.8

Battery voltage, rated capacity

48V-

The battery weight

3.8/16Kg

Weight

95/130Kg

Double wheel motor power (double power)

800w

Single wheel motor power

1200w
