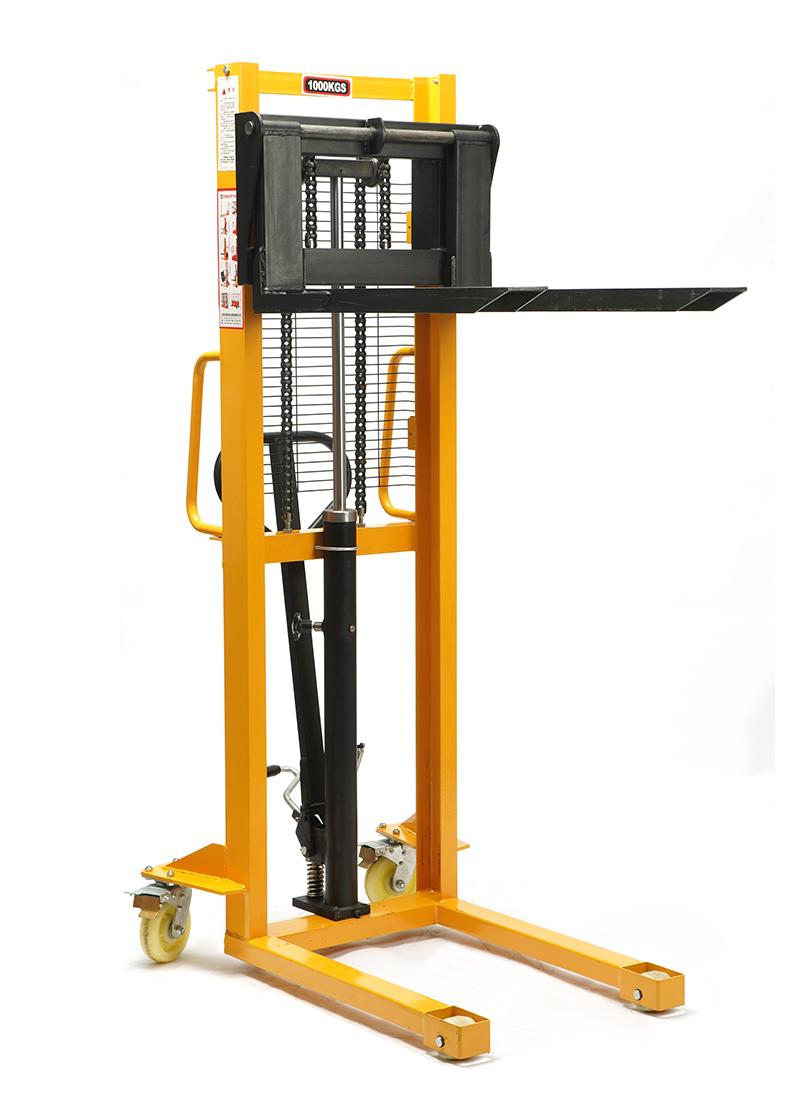

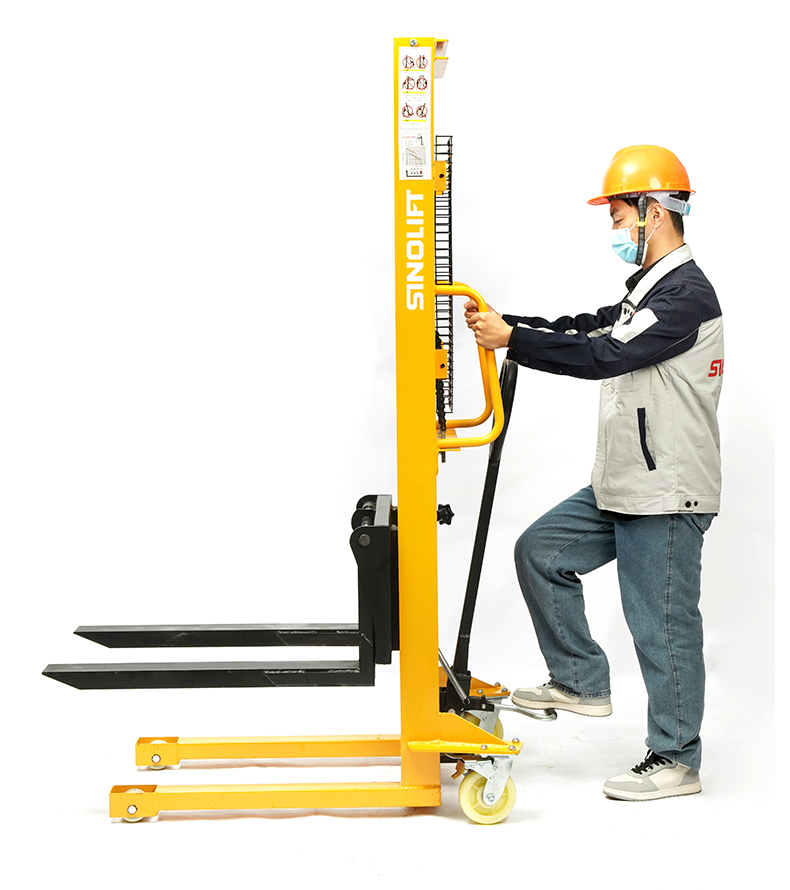

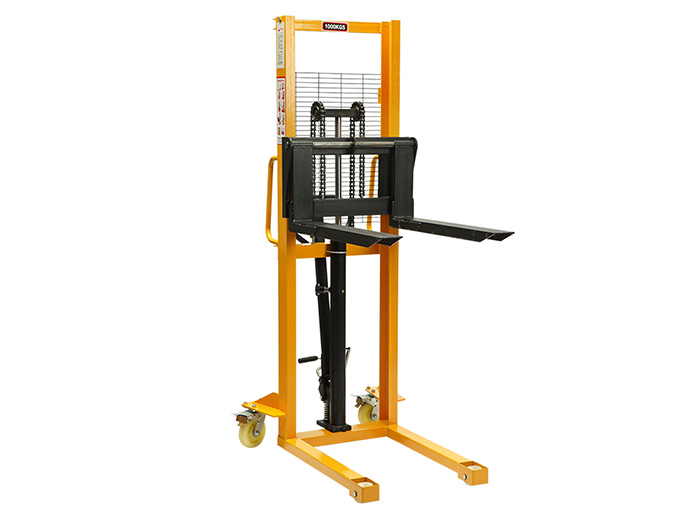

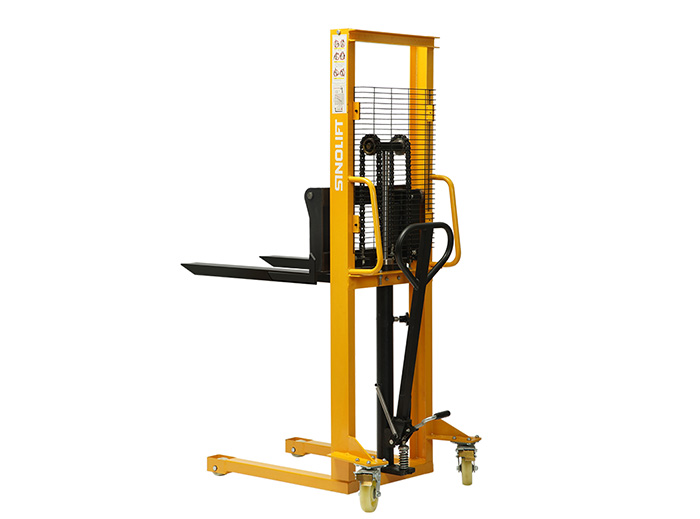

Name：DHC Manual Hydraulic Stacker
Model：DHC
Product Introduction：Equipped with a constantly velocity controlling value, variations of load will not affect forks lowering speed. Good quality hydraulic pump and cylinder. Compact design and strong steel construction.

The main features of SINOLIFT manual stacker as below：

- The manual stacker are using high quality C-shaped steel with excellent structure design, and the wheel frame protection devices to ensure the stable and safe in the lifting works.

- Ergonomic design with smart and portable structure ensure a small turning radius and comfortable in operation.

- The simplex mast manual stacker can unload the cargoes by both manual and pedal which is more flexible in operation.

- The wheel frame equipped with grease fitting for the routine maintenance of bearing.

- Various forks types for selection to meet your working condition, include fixed forks and adjusting forks for both European and American standard pallets and various load sizes.

Model		DHC 10/16	DHC 20/16
Load capacity	kg	1000	2000
Load center	mm	380	380
Min. height of fork	mm	90	95
Max. height of fork	mm	1600	1600
Fork length	mm	800	950
Adjustable width of fork	mm	240-620	280-660
Turning radius	mm	1250	1250
Overall length	mm	1300	1500
Overall width	mm	820	950
Overall height	mm	2000	2070
Self-weight	kg	150	230
