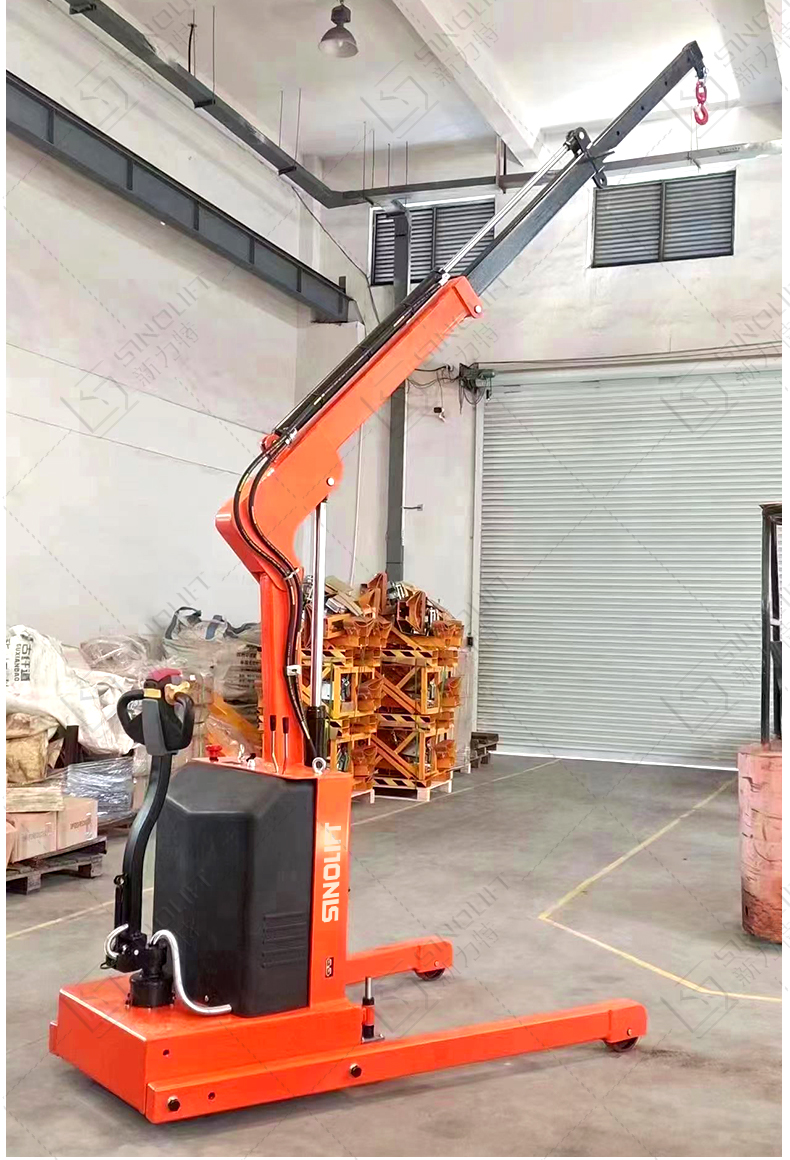

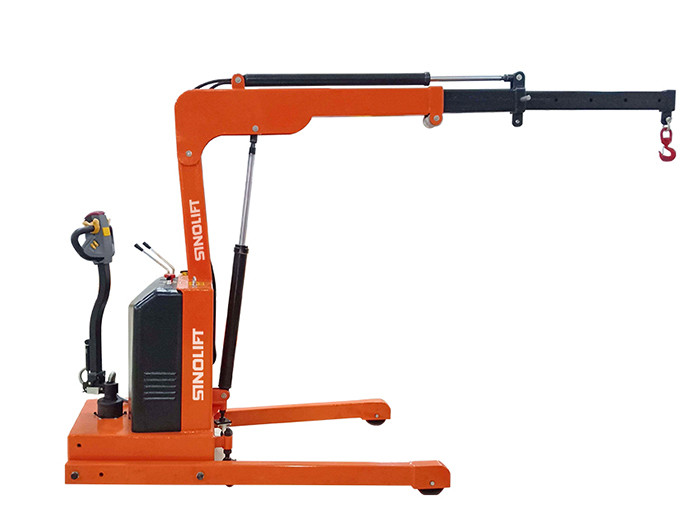

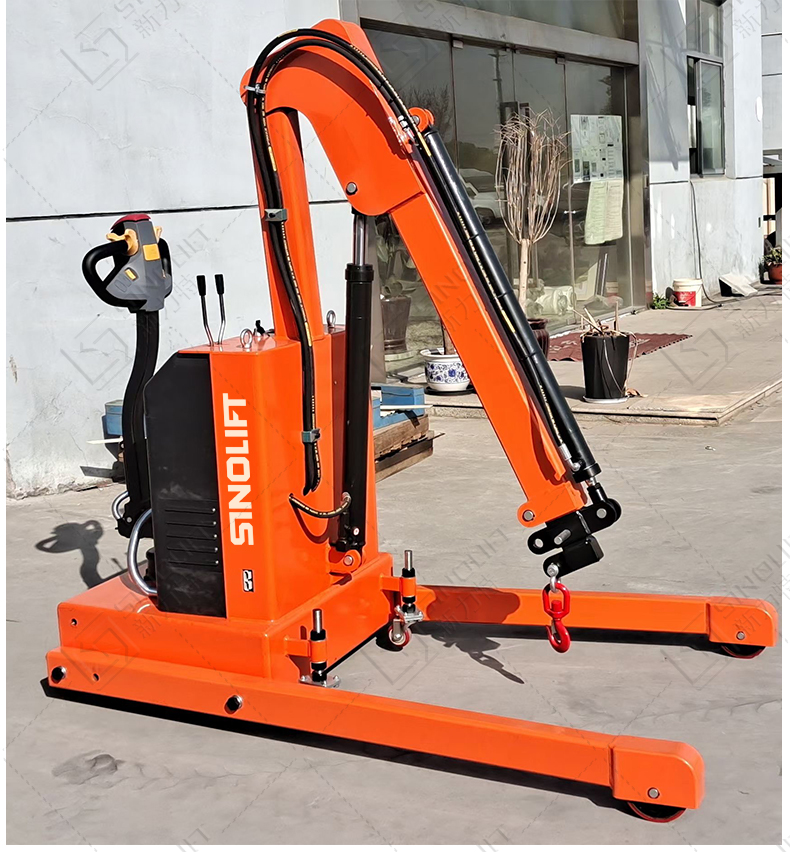

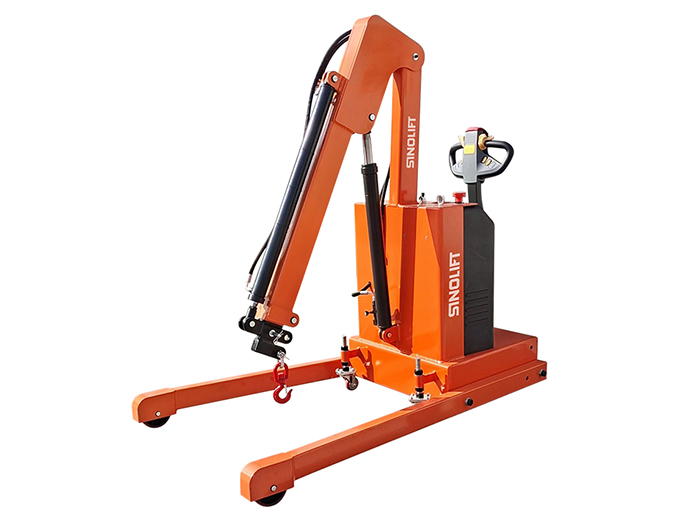

Name:YLE01 Self-Propelled Cranes
Model:YLE01
Product Introduction:Very compact size and low maintenance costs. For intensive and heavy use. Electrically driven, with two proportional speeds. Our self-propelled cranes are the most suitable solution for transferring, lifting and positioning loads with millimeter accuracy. As a mobile lifting device, our industrial floor cranes are more flexible than fixed lifting devices such as overhead cranes or industrial manipulators.

Very compact size and low maintenance costs. For intensive and heavy use. Electrically driven, with two proportional speeds. Our self-propelled cranes are the most suitable solution for transferring, lifting and positioning loads with millimeter accuracy. As a mobile lifting device, our industrial floor cranes are more flexible than fixed lifting devices such as overhead cranes or industrial manipulators.



Our fully electric cranes can more easily handle loads from 200 to 1000 kg. Portable electric counterbalance cranes are often the best type of equipment for pulling items from one place to another, especially materials that need to be placed in high or awkward areas. They improve workplace safety, eliminating manual handling of heavy loads and preventing possible injuries.

Model

YLE01

Boom length

mm

1440

2300

2500

2700

2900

3100

Load Capacity

kg

1000

342

290

250

220

200

Lift Motor

kw

2.2

Drive Motor

kw

0.75

Battery

/

12V/120Ah*2

Front Wheel

mm

150×50

Balance Wheel

mm

75×35

Rear Wheel

210×75

Retracted Size

mm

1100×800×1900

Net Weight

kg

570
