Home >> Products >> Mini Lightweight Hand Winch Work Positioner

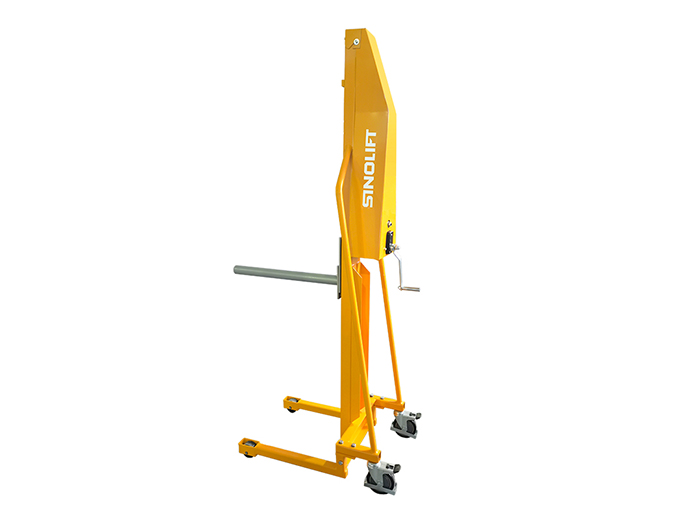

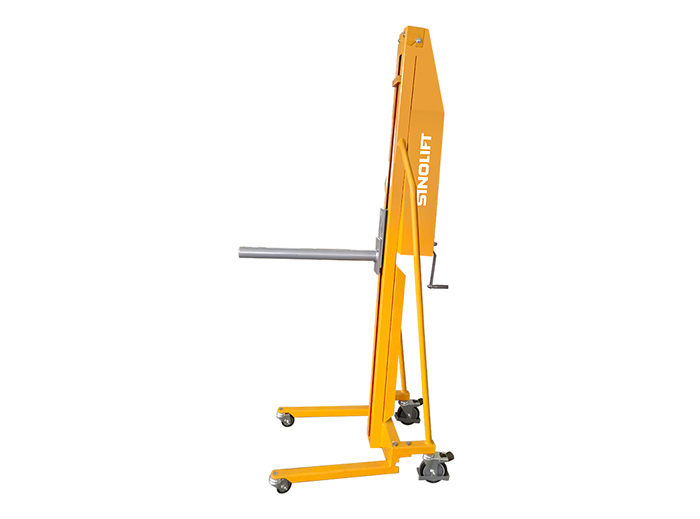

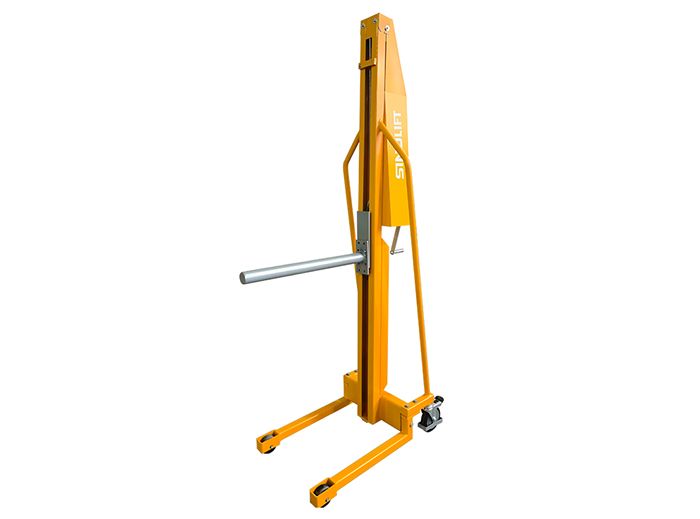

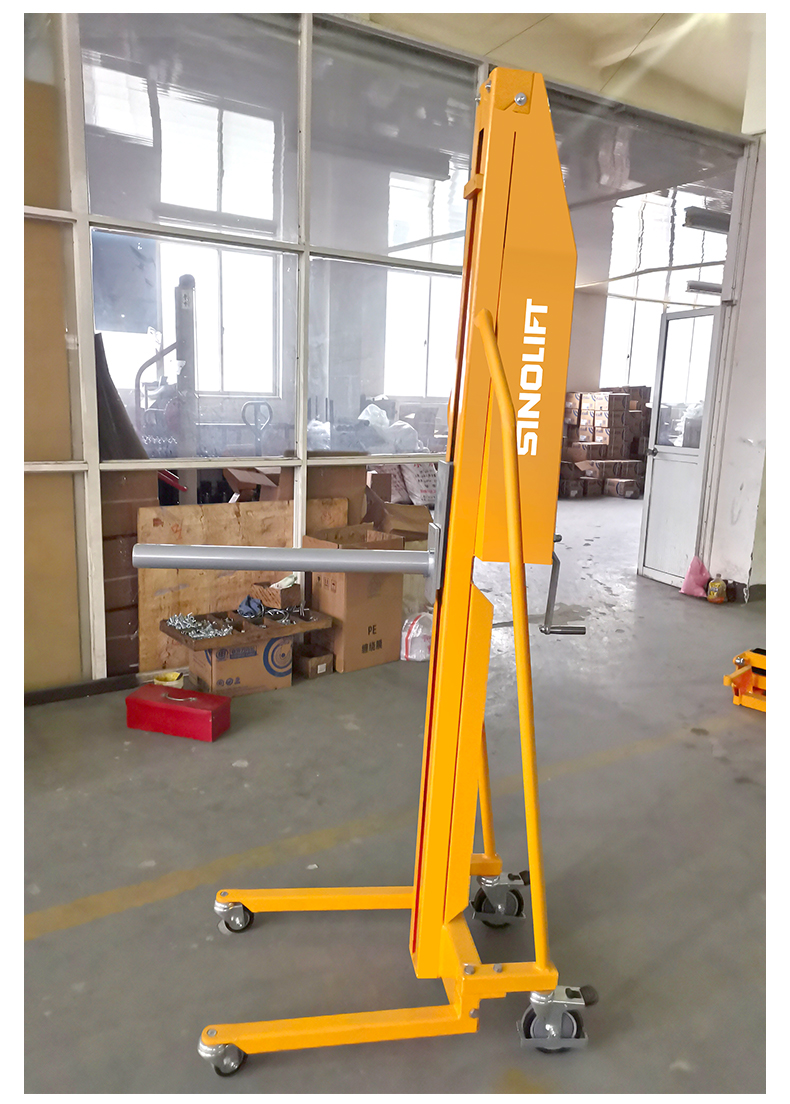

Name：Mini Lightweight Hand Winch Work Positioner
Model：M100
Product Introduction：The Platform Work Positioner is designed to be lightweight and compactable. Ideal for industrial or commercial jobs that require cleanliness. Robust design - 304 grade all stainless steel construction. Platform height is adjustable with a manual hand winch. An auto brake system allows for controlled lowering.

The Platform Work Positioner is designed to be lightweight and compactable. Ideal for industrial or commercial jobs that require cleanliness. Robust design - 304 grade all stainless steel construction. Platform height is adjustable with a manual hand winch. An auto brake system allows for controlled lowering.

Model		M100-15	M100L-15	M200-15	M200L-15
Capacity	(kg)	100	100	200	200
Max. Platform Height	(mm)	1500	1500	1500	1500
Min. Platform Height	(mm)	130 (PE) / 85 Steel		130 (PE) / 85 Steel
Support Leg Height	(mm)	110	80	110	80
Support Leg Inner Width		370(370~600)
Overall Dimensions	(mm)	840×600×1830	840×600×1830	870×600×1920	870×600×1920
Load Wheel	(mm)	ø75 Universal	ø75 Fixed	ø75 Universal	ø75 Fixed
Steeing Wheel	(mm)	ø125 (PU)	ø125 (PU)	ø125 (PU)	ø125 (PU)
Net Weight	(kg)	48	50	62	64
