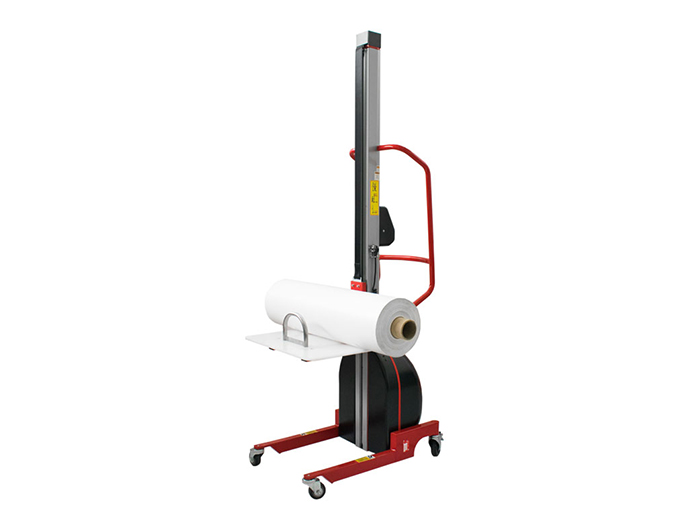

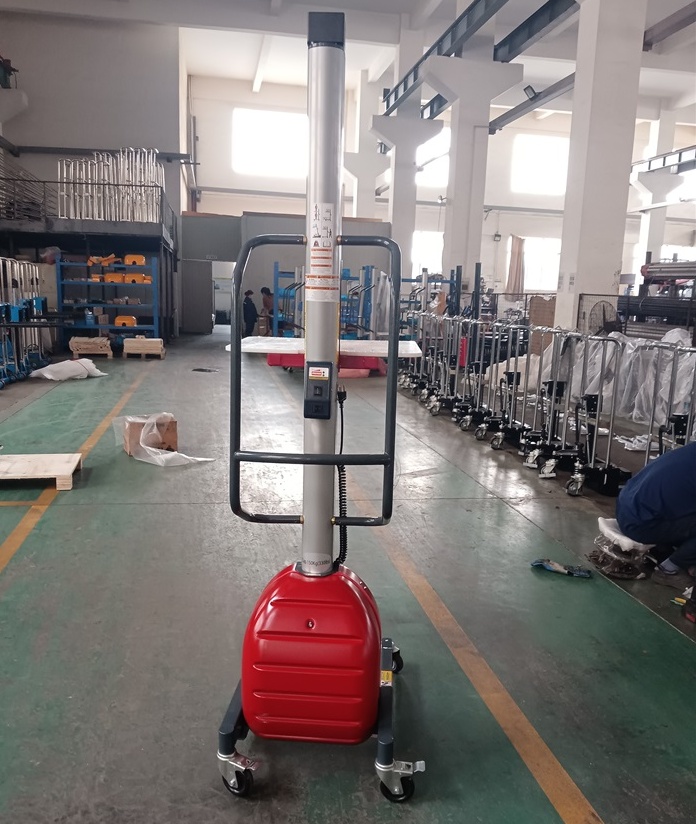

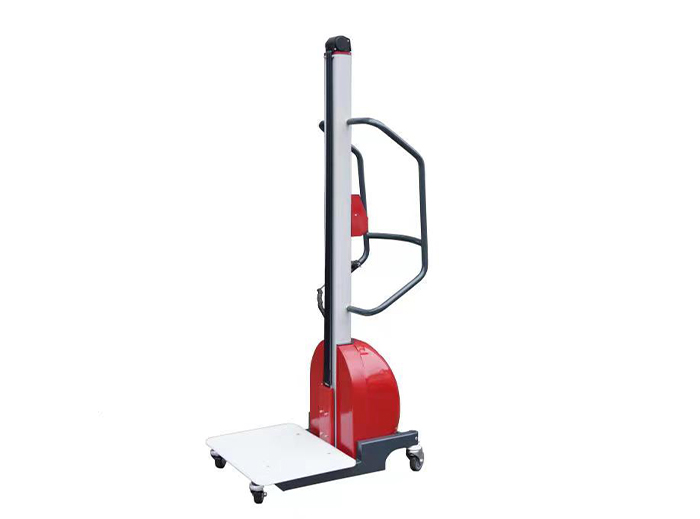

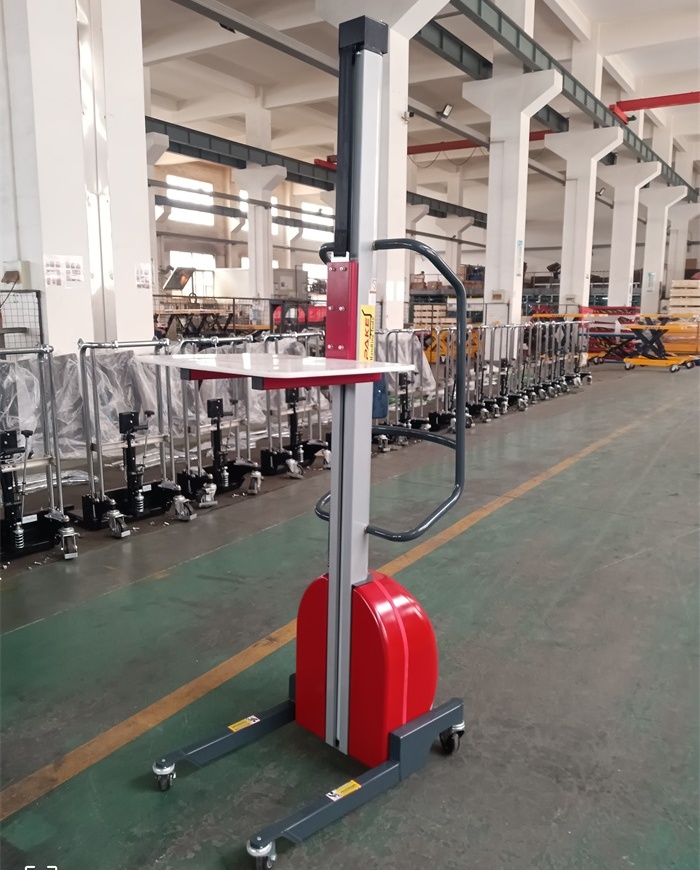

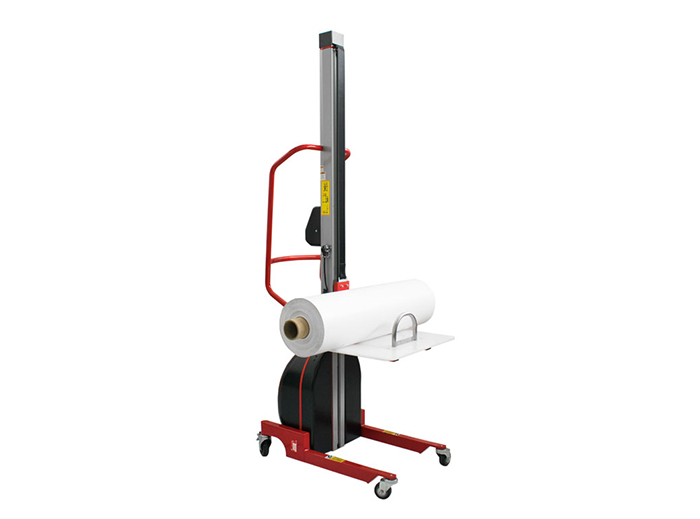

Name:YE Electric Work Positioner Lift Truck
Model:YE
Product Introduction:Designed to work in tight spaces with excellent maneuverability. Battery-operated media elevator. Avoid back injuries by using the Compact e-Lifter Lite to easily load individual media rolls into the printer.

Designed to work in tight spaces with excellent maneuverability. Battery-operated media elevator.

Avoid back injuries by using the Compact e-Lifter Lite to easily load individual media rolls into the printer.

This lifter works simply by pushing the up/down control buttons to easily lift media rolls into the printer or onto the finishing table.



- Battery powered.

- Adjustable paper roll diameter for safe transportation.

- Multi-directional wheels that fit through standard doors.

- Rear wheels have break points for easy media rolls up ramps.

- Built-in charger.

Model

YE100

YE150

YE180

YE200

Load Capacity

kg

100

150

180

200

Load Center

mm

235

235

200

200

Maximum Fork Height

mm

1700

1500

1700

1500

Option Fork Height

mm

130

130

130

130

Minimum Fork Height

mm

130

130

130

130

Platform Size

mm

PVC605*475

PVC605*475

PVC605*475

PVC605*475

Load Roller Dia.

mm

75*20

75*20

75*20

75*20

Lifting/Lowering speed

mm/s

55

55

55

55

Steering Wheel

mm

100*32

100*32

100*32

100*32

Battery

Ah

12*2-10Ah

12*2-10Ah

12*2-12Ah

12*2-12Ah

Charger

V-A

DC-24V-2A

DC-24V-2A

DC-24V-2A

DC-24V-2A

Overall Dimension

mm

855*605*2150

855*605*1950

855*605*2150

855*605*1950

Net Weight

kg

60

59

75

74
