Home >> Products >> ML-120RTN Electric Counter-Balanced Shop Crane

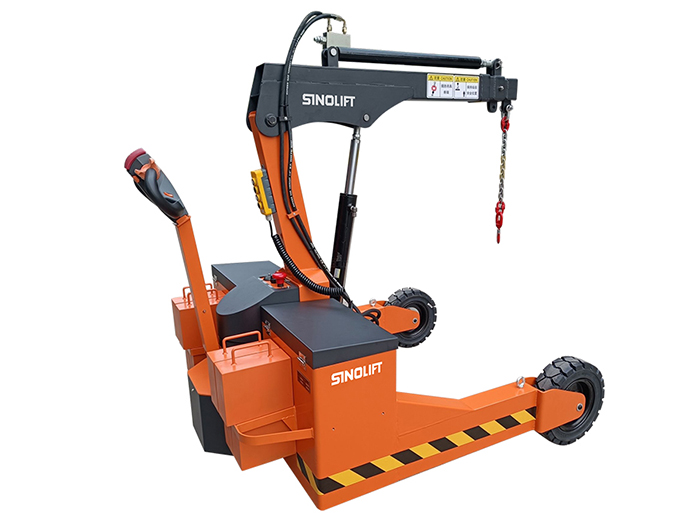

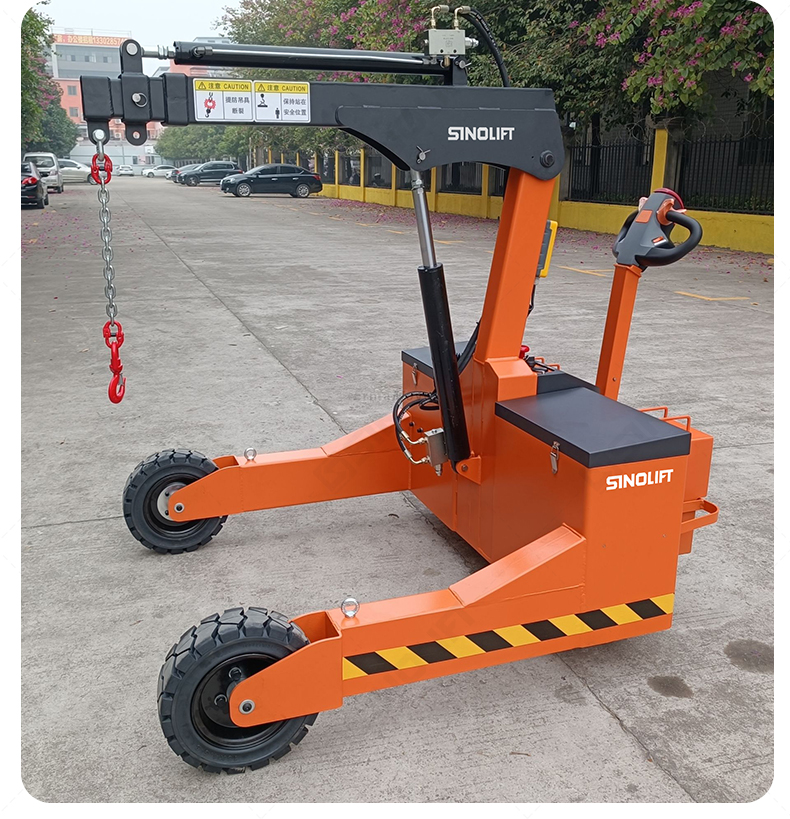

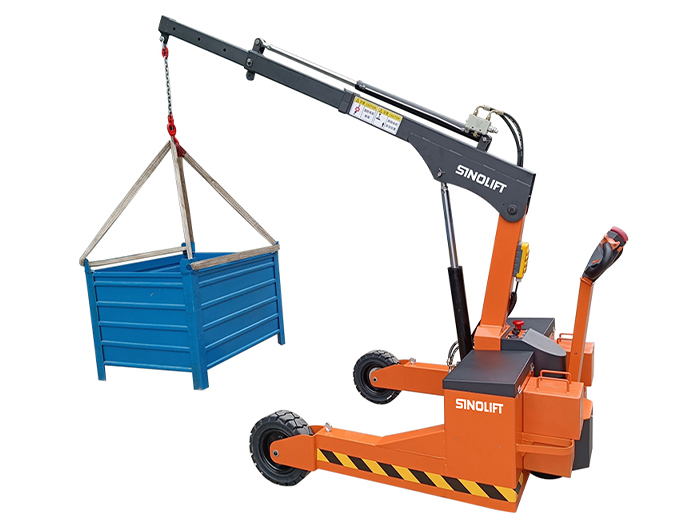

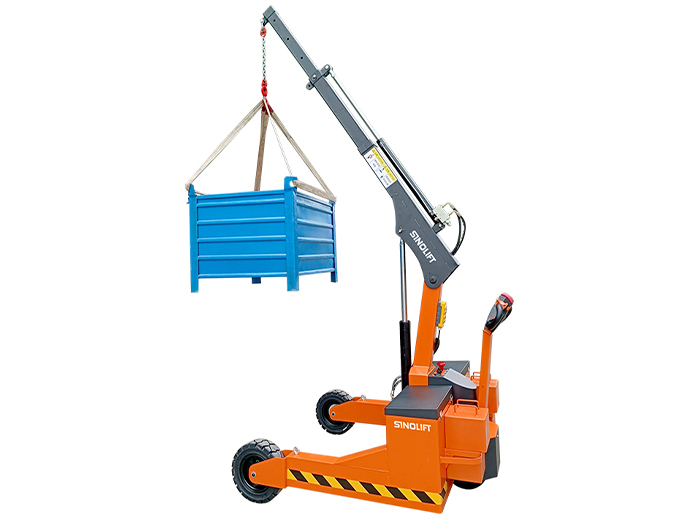

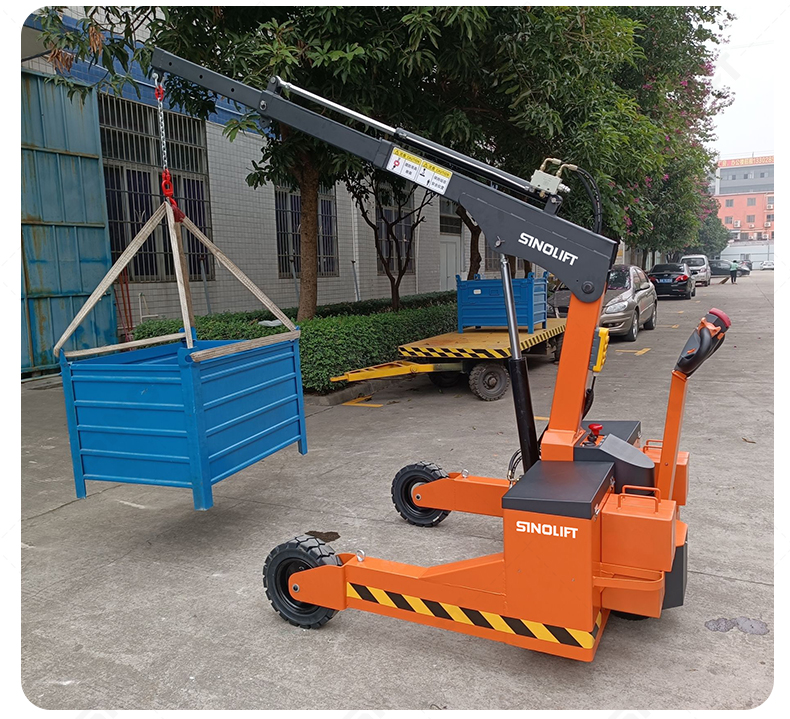

Name：ML-120RTN Electric Counter-Balanced Shop Crane
Model：ML-120RTN
Product Introduction：This crane’s narrow chassis and 360o swivel platform, together with the hook precise positioning system, will make the work easier.

This crane’s narrow chassis and 360o swivel platform, together with the hook precise positioning system, will make the work easier.

These counterweight cranes, originals by SINOLIFT, can be turned manually to left and right. Since the counterweight and jib turn together, the crane can directly face loads or machines at any angle, without losing load capacity.

Model		ML-120RTN
Capacity	kg	1200
Rated pulling force	N	300
Truck weight（with battery）	mm	690
Overall height	mm	1660
Height of tiller in drive position	mm	1010
Lifting height	mm	3200
Overall length	mm	1775
Overall width	mm	1335
Ground clearance	mm	135
Turning radius	mm	1790
Drive speed load/unload	km/h	3/5
Battery	V/Ah	2*12/120
