Home >> Products >> ML1500L ML2000L ML3000L Heavy Duty Tow Tractor

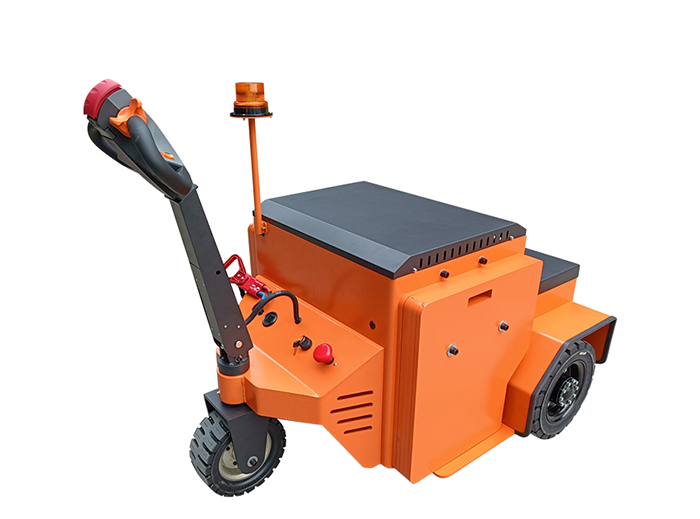

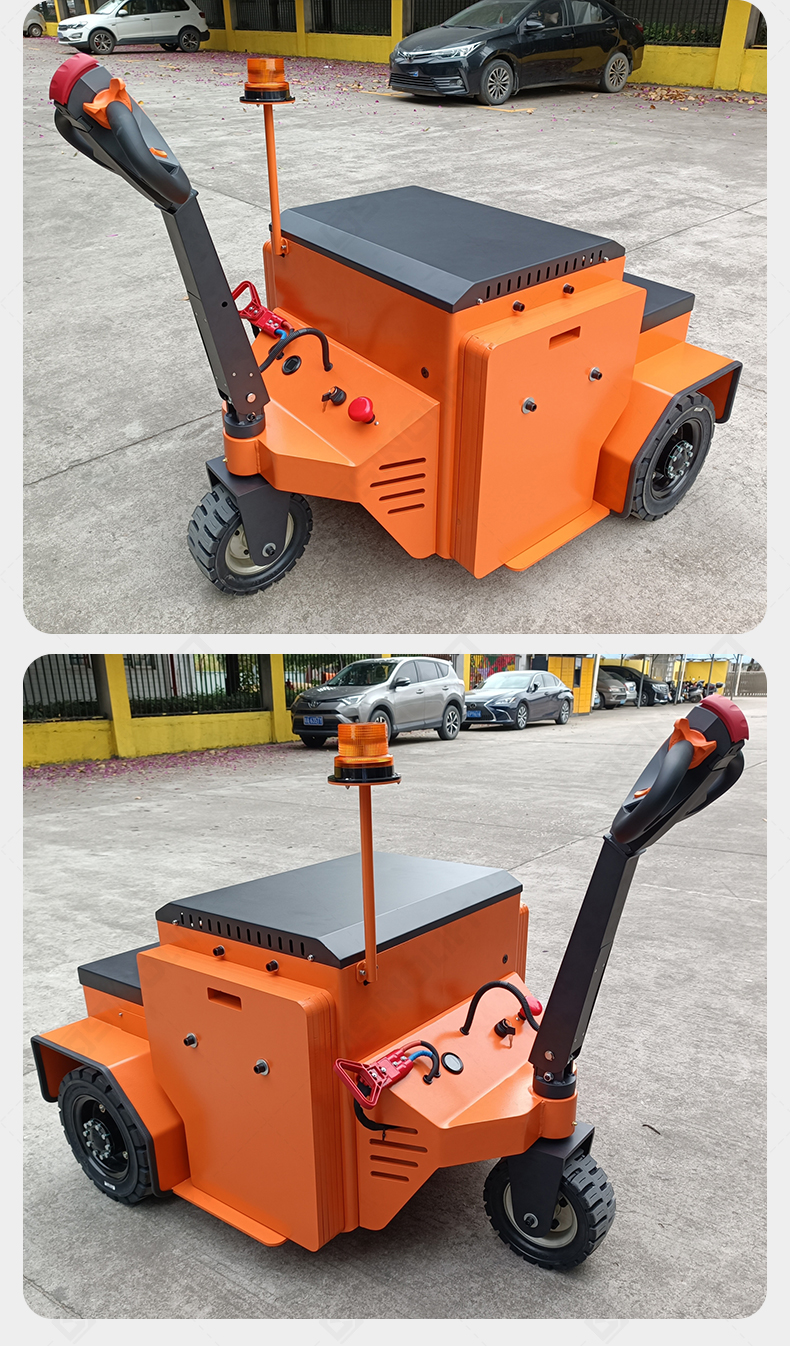

Name：ML1500L ML2000L ML3000L Heavy Duty Tow Tractor
Model：ML1500L ML2000L ML3000L
Product Introduction：The ML3000L TOW is simple and easy to use offering towing capabilities of up to 30,000 kg. A single operator can safely maneuver and connect securely to any load in seconds without the need for an operator license.

The ML3000L TOW is simple and easy to use offering towing capabilities of up to 30,000 kg. A single operator can safely maneuver and connect securely to any load in seconds without the need for an operator license.

Ergonomically designed, the ML3000L TOW improves both safety and efficiency across a number of working environments and terrains.

The ML3000L TOW is a versatile and compact electric tug, which can be fully customized and built to perform at its best in your workplace environment. Various couplings, additional safety features and machine options are also available.

Model		ML1500L	ML2000L	ML3000L
Rated Traction Load	kg	15000	20000	30000
Rated Traction Force	N	6000	7000	9000
Wheelbase	mm	980	980	980
Weight (including battery)	kg	1000	1200	1350
Battery Weight	kg	400	400	400
Drive Wheel Size (Diameter x Width)	mm	2XФ375X115	2XФ375X115	2XФ400X150
Load Wheel Size (Diameter x Width)	mm	Ф280X127	Ф280X127	Ф280X127
Number of Drive/Load Wheels (X = Drive Wheels)	mm	2X/1	2X/1	2X/1
Front Track, Drive End	mm	460	460	460
Overall Height	mm	1225	1225	1225
Handle Height at Operating Position	mm	950/1200	950/1200	950/1200
Coupler Height Range	mm	260/360/720	260/360/720	260/360/720
Overall Length	mm	1560	1560	1560
Overall Width	mm	1040	1040	1040
Minimum Ground Clearance	mm	100	100	100
Turning Radius	mm	1320	1320	1320
Travel Speed, Loaded/Unloaded	km/h	2~3	2~3	2~3
Maximum Traction Force	N	9000	10000	12000
Drive Motor Rated Power (5260 min)	V/kw	48/4.0	48/5.0	48/6.0
Charger (External)	V/A	48/30	48/30	48/30
Battery Voltage/Nominal Capacity (K20)	V/Ah	48/210	48/210	48/210
Battery Weight	kg	400	400	400
Drive Control Type		AC	AC	AC
Noise Level	dB(A)	<70	<70	<70
