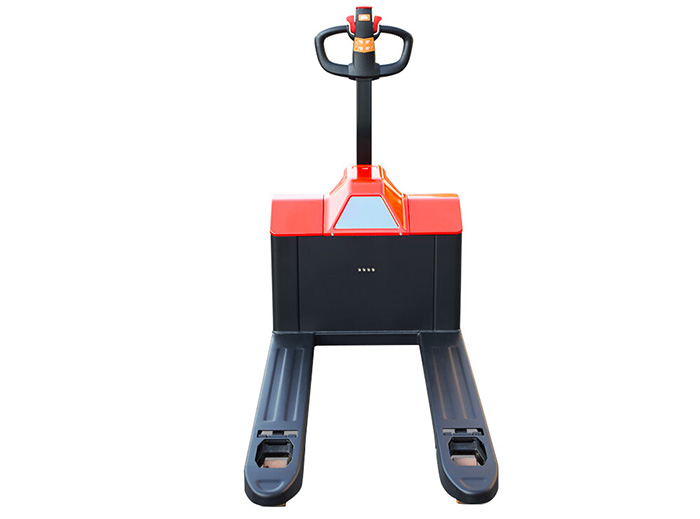

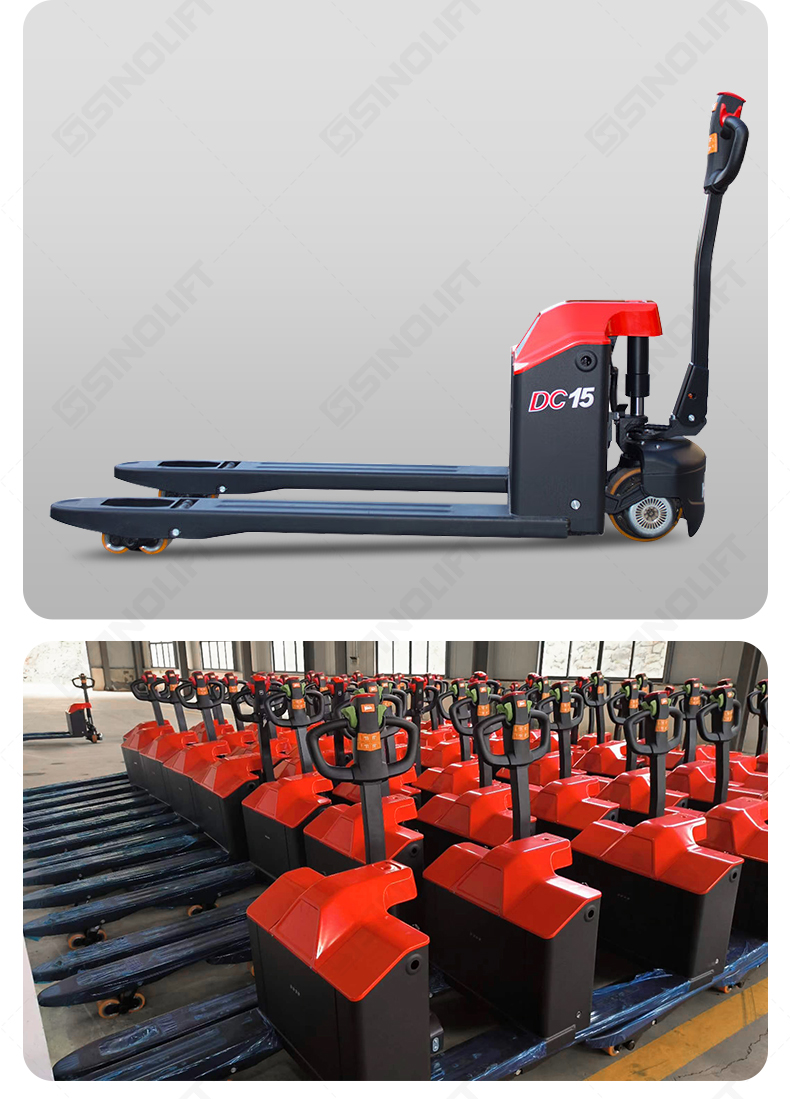

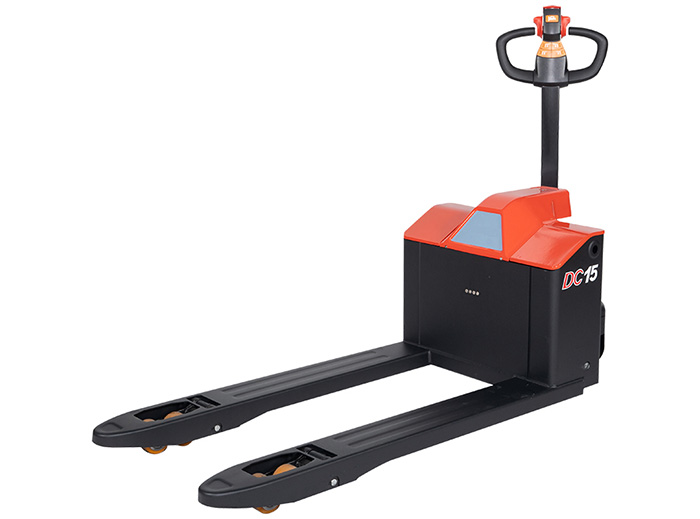

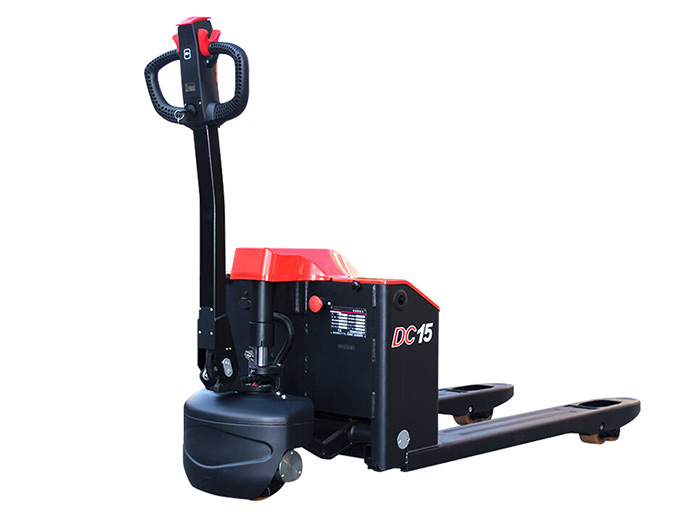

Product Introduction：The CBD-Y is a sleek, fully electric model that boasts a powerful, yet lightweight Lead-acid battery that can be quickly changed in seconds. With its innovative Smart Tiller Design and on-board diagnostic tool, users can easily identify any errors displayed on the screen.
The CBD-Y is a sleek, fully electric model that boasts a powerful, yet lightweight Lead-acid battery that can be quickly changed in seconds. With its innovative Smart Tiller Design and on-board diagnostic tool, users can easily identify any errors displayed on the screen.
Ideal for those on the go, the CBD-Y is battery powered, ensuring maximum efficiency and convenience. Its high handle promotes proper user posture, while its large capacity allows for optimal maneuvering of even heavy loads. Additionally, the model's long forks provide flexibility, accommodating a variety of pallet and product sizes.
MODEL
CBD15-Y
CBD20-Y
Drive
Electric
Electric
Operator
Pedestrian
Pedestrian
Load capacity/rated load
Qkg
1500
2000
Load center
Cmm
600
600
Height, fork lowered
h13mm
85±3
85±3
Wheelbase
ymm
1288
1288
Wheel
PU
PU
Wheel size, front
mm
210*70
210*70
Balance wheel size
mm
70*30(Optional)
70*30(Optional)
Wheel size, rear
mm
84*70
84*70
Wheels, number front/rear(x=drive wheels)
1x+2/4
1x+2/4
Lift
h3mm
120
120
Height of tiller in drive position,
min./max.
h14mm
615/1245
615/1245
Overall length
L1mm
1700/1750
1700/1750
Fork length
Lmm
1150/1200
1150/1200
Overall width
b1mm
677
677
Fork dimensions
mm
75/155/1150(1200)
75/155/1150(1200)
Distance between fork-arms
b5mm
250/560(375/685)
250/560(375/685)
Ground clearance
m2mm
30
30
Aisle width for pallets 1000×1200 crossways
Astmm
1828/1878
1828/1878
Aisle width for pallets 800×1200 lengthways
Astmm
1794/1844
1794/1844
Min. turning radius
Wamm
1441/1491
1441/1491
Travel speed, laden/unladen
km/h
4/4.5
4/4.5
Lifting speed, laden/unladen
mm/s
35/40
35/40
Lowering speed, laden/unladen
mm/s
65/60
65/60
Max. gradeability, laden/unladen
%
6%/16%
6%/16%
Drive motor/Lifting motor/Steering motor
kW
DC0.63/DC0.8/-
DC0.75/DC0.8/-
Battery voltage/nominal capacity
V/Ah
2×12/85(VRLA)
2×12/85(VRLA)
Sound level at the driver's ear according
to EN 12053
