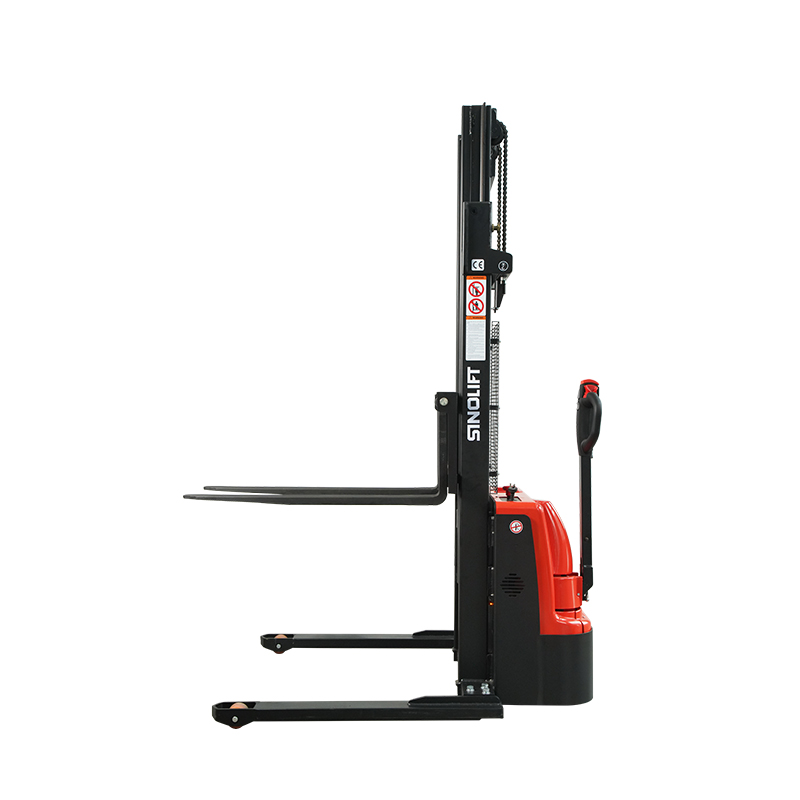

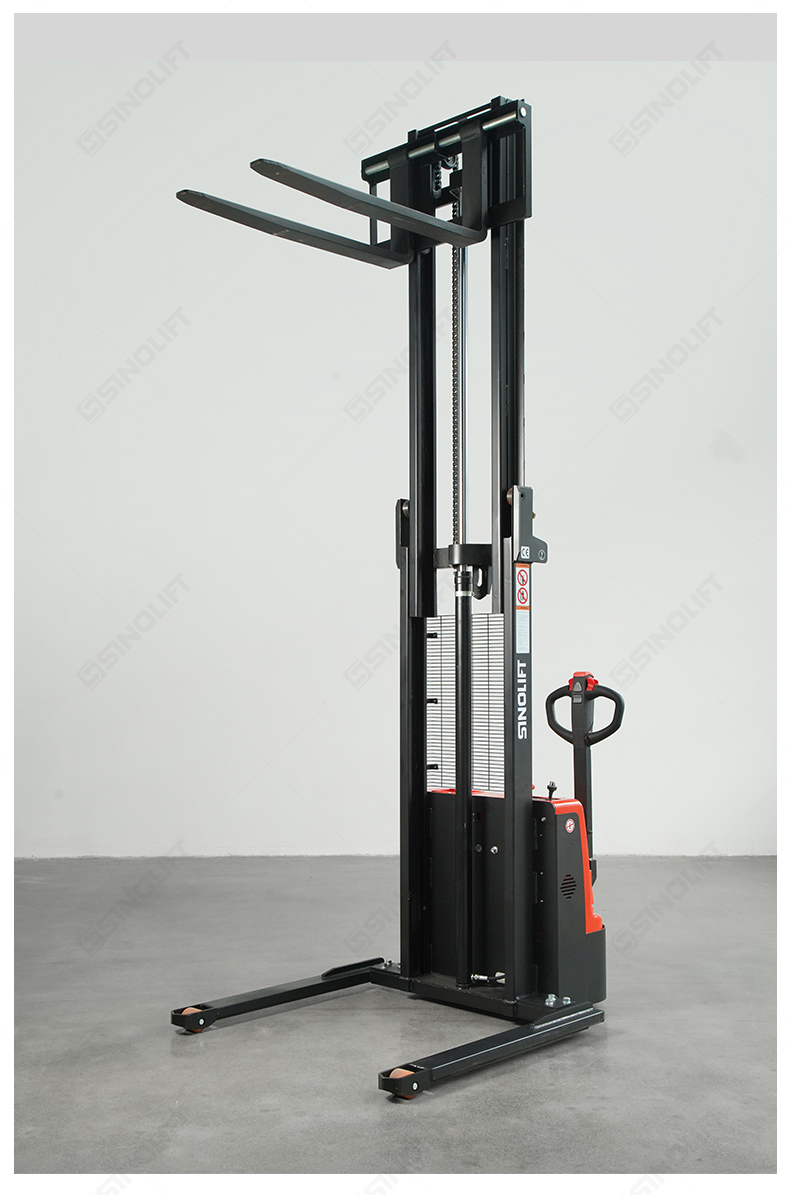

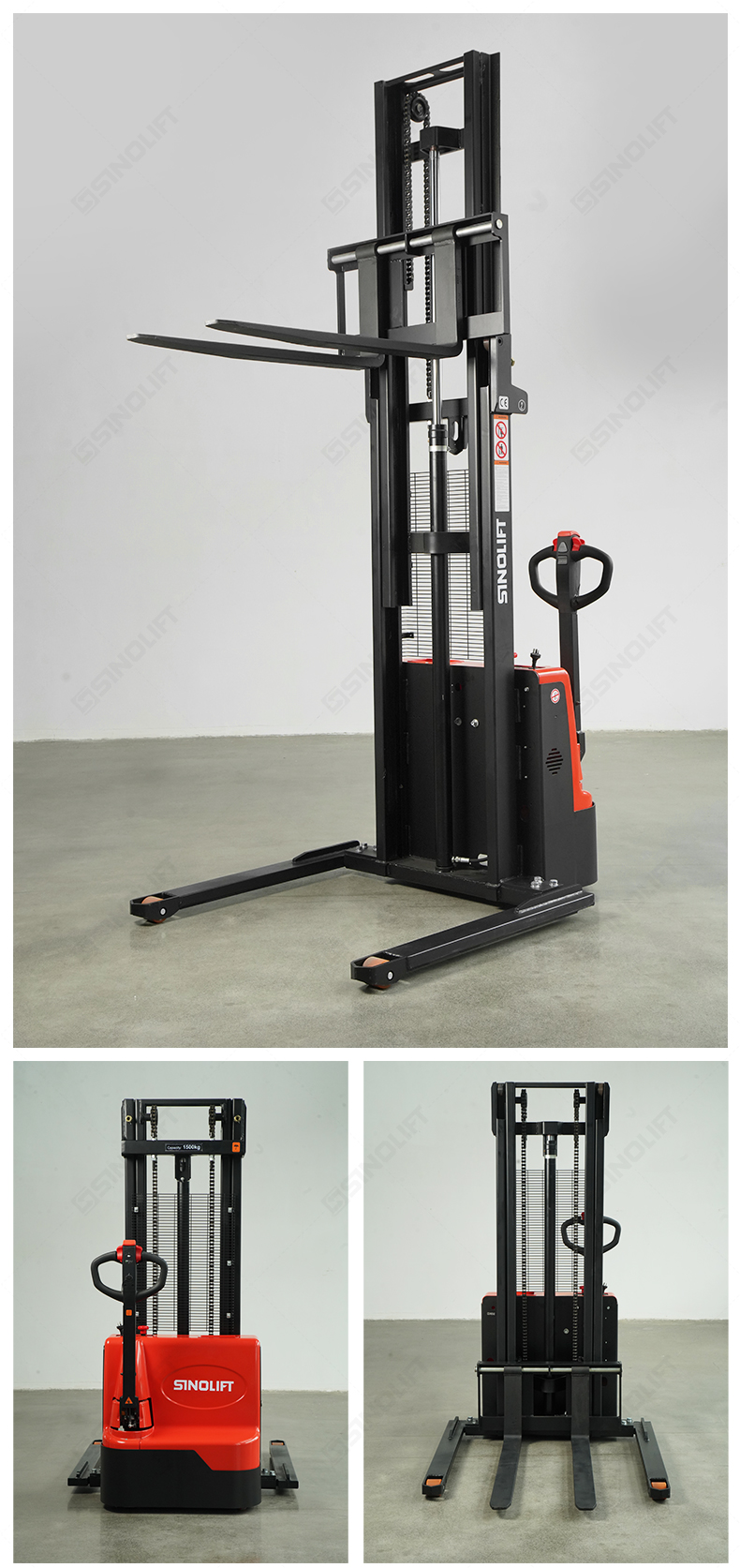

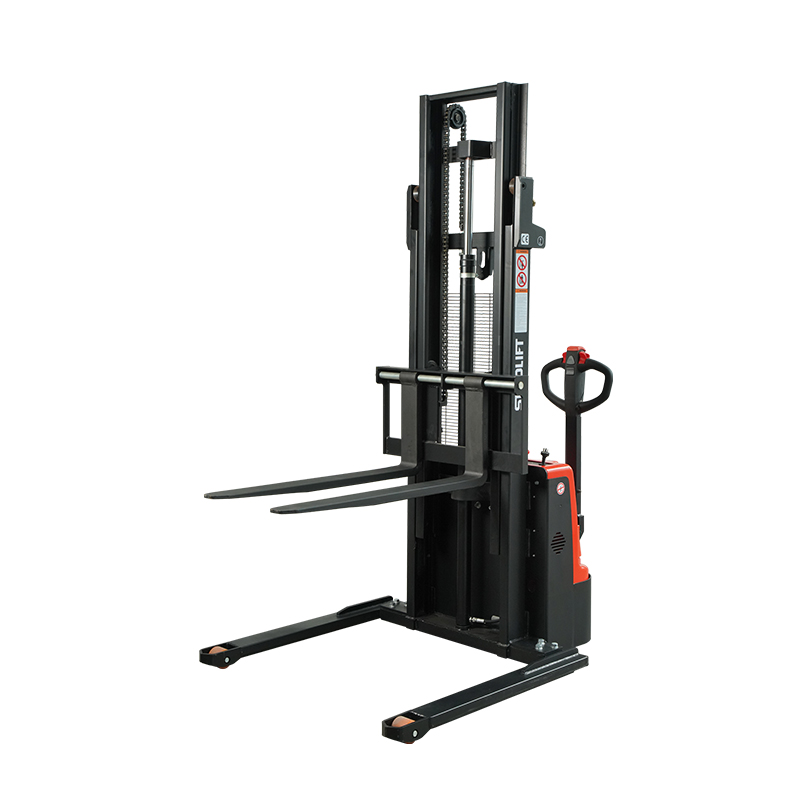

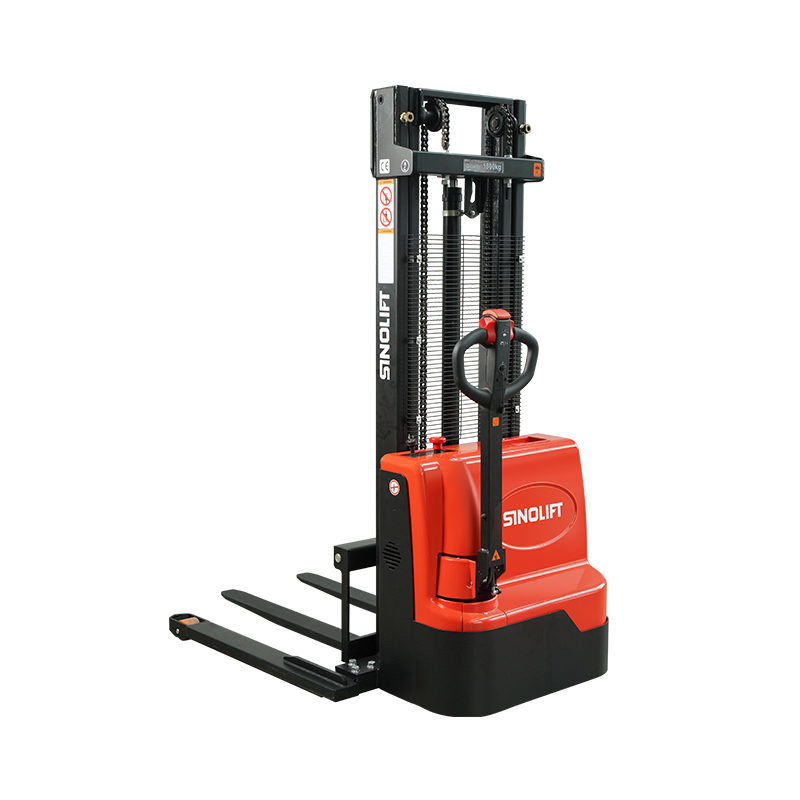

Name：CDD15SL Straddle Leg Pallet Stacker
Model：CDD15SL Straddle Leg Pallet Stacker
Product Introduction：Polyurethane Wheels (PU Wheels),Front wheels designed for low noise and reduced resistance. Double Plate Chains,Thickened double plate chains ensure stable transmission. Protective Mesh Design,High strength protective mesh for enhanced safety. Mechanical Handle Welding,Professionally welded handle ensures safety and quality.

Product Name:SINOLIFT CDD15SL Straddle Leg Pallet Stacker

A Single Machine to Handle All Your Cargo Needs

· Thickened C+H Steel Frame

· Double Plate Chain System

· Sealed, Leak-proof Hydraulic Cylinder

· Multi-functional Smart Handle

· Polyurethane Load-bearing Wheels

· Integrated Forged Forks

· Solid Flat Steel Support Legs

· Powerful Drive Wheels

· Polyurethane Wheels (PU Wheels),Front wheels designed for low noise and reduced resistance.

· Double Plate Chains,Thickened double plate chains ensure stable transmission.

· Protective Mesh Design,High strength protective mesh for enhanced safety.

· Mechanical Handle Welding,Professionally welded handle ensures safety and quality.

Specifications	Manufactuer				SINOLIFT
	Model				CDD15SL
					CDD1516SL	CDD1520SL	CDD1525SL	CDD1530SL	CDD1533SL	CDD1535SL
	1.1	Drive			Electric
	1.2	Operator type			Pedestrian
	1.2	Operator type			Pedestrian
	1.3	Load capacity/ Rated load	Q	lbs	3300
	1.4	Load centre distance	c	inch	23.6"
	1.5	Load distance, centre of drive axle to fork	x	inch	34.5"
	1.6	Wheelbase	y	inch	47.6"
Weight	2.1	Service weight (Without battery)		lbs	990	1034	1056	1080	1100	1160
	2.2	Battery weight		lbs	Sealed lead acid battery 90 lbs
	2.2	Battery weight		lbs	Lithium battery 45 lbs
	2.3	Axle loading, laden front/rear		lbs	1815/3500
	2.4	Axle loading, unladen front/rear		lbs	1232/780
Tyres,Chassis	3.1	Tires			PU
	3.2	Tires size. Front	pxy	inch	3.15" x 2.75"
	3.3	Tires size. Rear	pxy	inch	8.27" x 2.75"
	3.4	Balance wheels(Dimensions)	pxy	inch	5.9" x 1.97"
	3.5	Wheel number, Drive wheel/Load Wheel/Balanced wheel (x=drive wheel)			1x /2/2
	3.6	Tread, front, Load side	b10	inch	42.5" or 50"
	3.7	Tread, rear, Drive side	b11	inch	24.6"
Dimensions	4.1	Lowered mast height	h1	mm	79"	60"	70"	80"	85.8"	89.7"
	4.2	Free lift height	h2	mm	0
	4.3	Lift Height	h3	inch	63"	78.7"	98.4"	118"	130"	137.8"
	4.4	Extended mast height	h4	inch	79"	98"	117.7"	137.4"	149"	157"
	4.5	Height of tiller in drive position min./max.	h14	inch	34.6"-57"
	4.6	Height, lowered	h13	inch	3.54"
	4.7	Overall length	l1	inch	68.9"
	4.8	Length to face of forks	l2	inch	44.3"
	4.9	Overall width	b1	inch	31.5"
	4.1	Width of leg	b5	inch	3.9"
	4.11	Length of leg		inch	42"
	4.12	Fork dimensions	s/e/l	inch	1.18"/6.3"/42"
	4.13	Distance between fork-arms		inch	8.26" - 31.5"
	4.14	Ground Clearance, centre of wheelbase	m2	inch	1.18
	4.15	Aisle width for pallets 1000x1200 crossways	Ast	inch	87.8"
	4.16	Aisle width for pallets 800x1200 lengthways	Ast	inch	90.7"
	4.17	Turnign radius	Wa	inch	63"
Performance	5.1	Travel speed, laden/unladen		mph	2.5"/3.0"
	5.2	Lift speed, laden/unladen		inch/s	3.74"/5.28"
	5.3	Lowering speed, laden/unladen		inch/s	5.12"/3.7"
	5.4	Max. Gradeability, laden/unladen		%	5/8
	5.5	Service brake			Electromagnetic
Electric motor	6.1	Drive motor rating		kw	2.2
	6.2	Lift motor rating		kw	0.75
	6.3	Battery voltage, nominal capacity		V/AH	Lead-acid 2*12v/80AH (100Ah as option)
	6.3	Battery voltage, nominal capacity		V/AH	Lithium battery 24V50AH (100ah as option)
	6.4	Battery size L X W X H		inch	Lea-acid battery (10.3/13x6.77x6.65/8.27)x2
	6.4	Battery size L X W X H		inch	Lithium battery 13"90480
	6.5	Type of control			DC-Speedcontrol
	6.6	Sound level at driver's ear acc. to EN12053		dB(A)	65
