Home >> Products >> :5-ton heavy load capacity NPV50 pallet truck

Name：:5-ton heavy load capacity NPV50 pallet truck
Model：:5-ton heavy load capacity NPV50 pallet truck
Product Introduction：:5-ton heavy load capacity NPV50 pallet truck

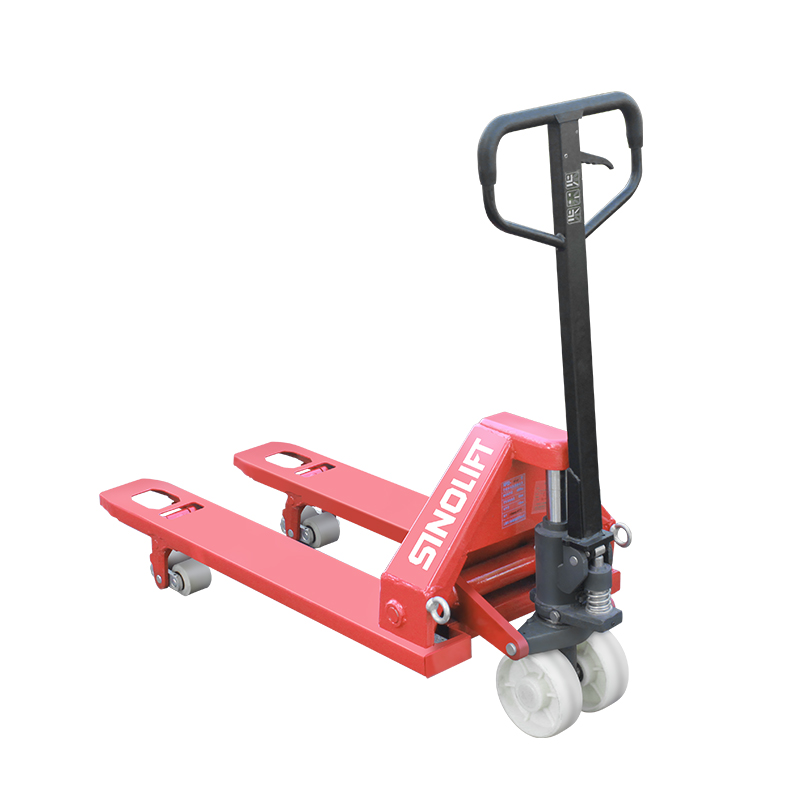

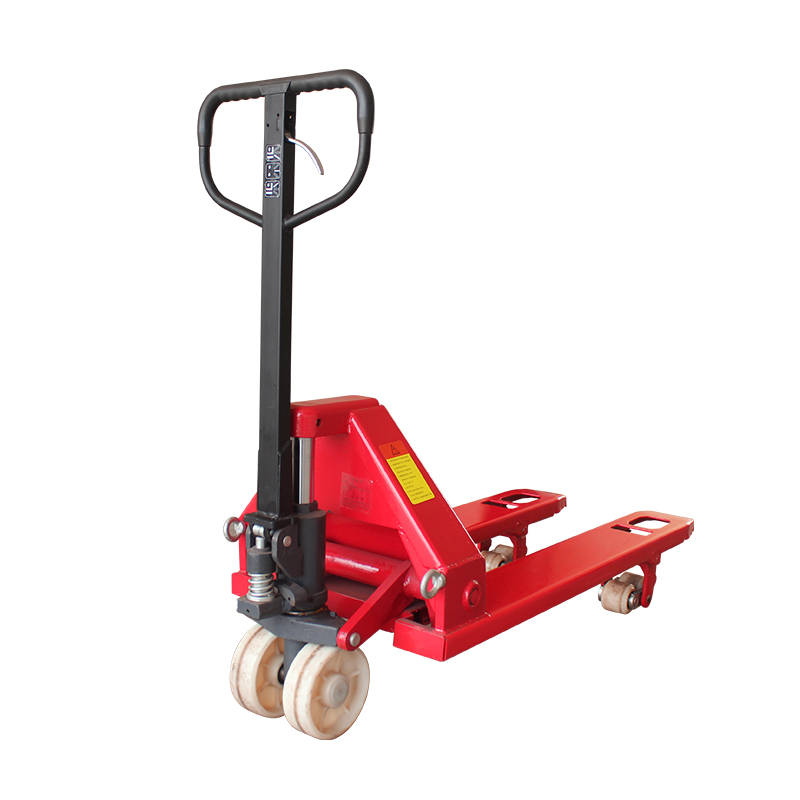

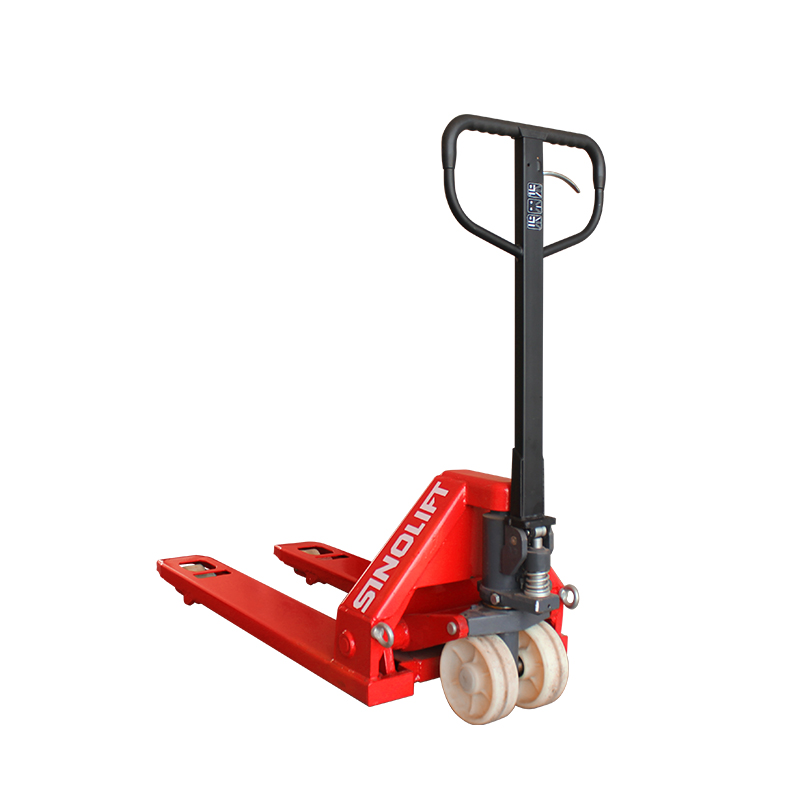

Product Name:5-ton heavy load capacity NPV50 pallet truck

The whole vehicle is made of thickened manganese steel plate, which has strong support and resistance to compression and deformation.Reinforced and thickened forks / Made of high-quality steel plate, thickened and thickened, real materials, strong and durable

1. High-performance hydraulic pump, long life, leak-proof seal

2. Solid round push rod / Not easily deformed under heavy load

3. Made of special double-layer steel plate, stronger compression resistance

4. Simple operation, safe and convenient to use, improve work efficiency

5. Low release to 85MM Low release, suitable for most pallets

Model	NPV50-510	NPV50-712	NPV50-715	NPV50-718
Load (kg)	5000	5000	5000	5000
Fork outer width (mm)	540	685	685	685
Fork length (mm)	1070	1220	1500	1800
Lowest fork height (mm)	85	85	85	85
Highest fork height (mm)	200	200	200	200
Steering wheel (mm)	Φ180X65	Φ180X65	Φ180X65	Φ180X65
Front carrying wheel (mm)	Φ78X70	Φ78X70	Φ78X70	Φ78X70
Single fork width (mm)	165	165	165	165
Total height (mm)	1250	1250	1250	1250
