Home >> Products >> NPR seriesReel Handling Truck

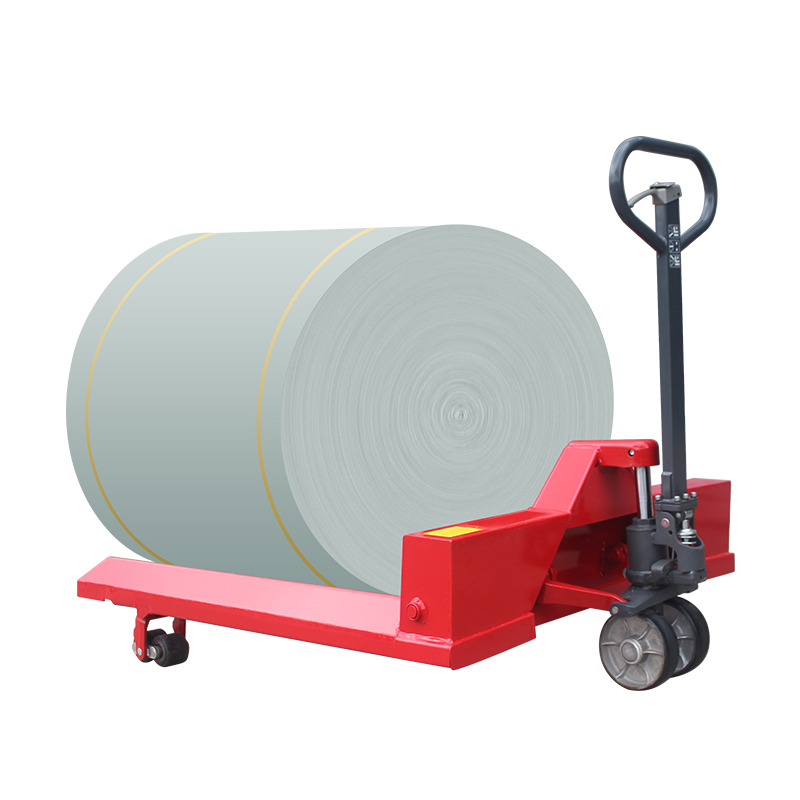

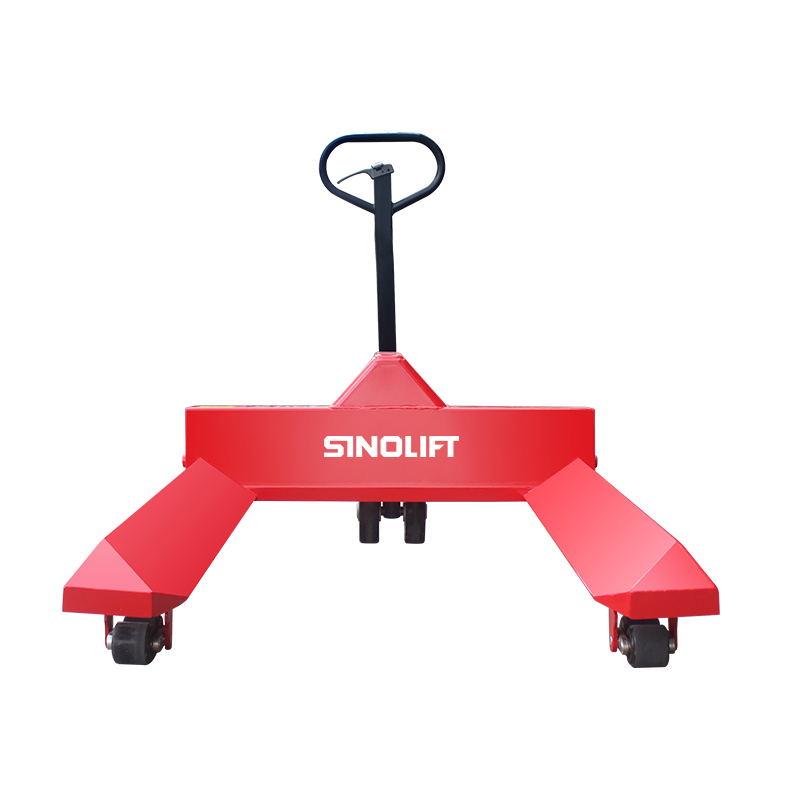

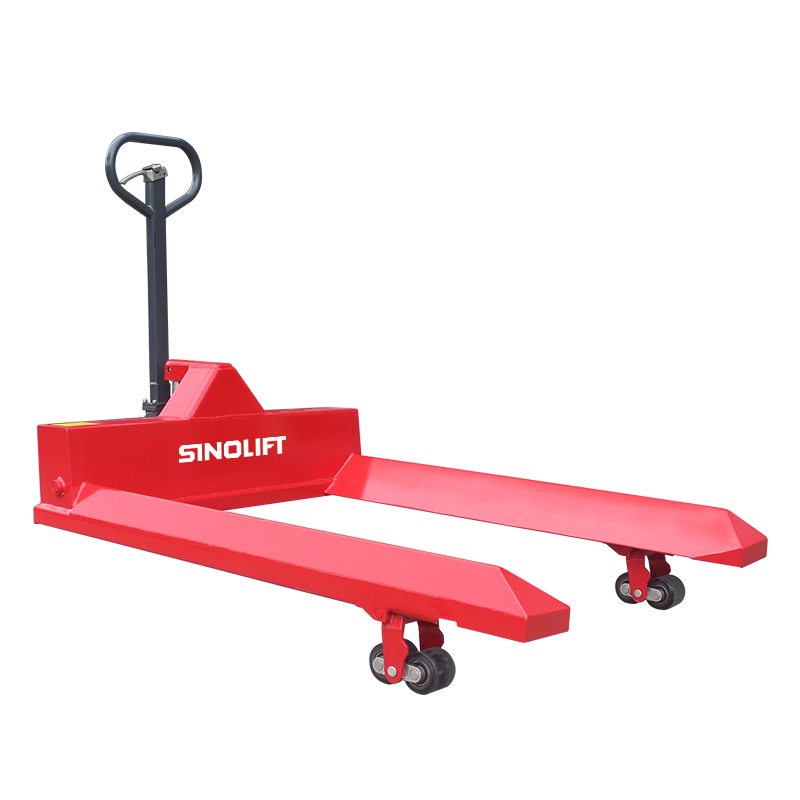

Name：NPR seriesReel Handling Truck
Model：NPR seriesReel Handling Truck
Product Introduction：NPR seriesReel Handling Truck

Product Name

NPR seriesReel Handling Truck

l Thickened Steel Plate carriage

Uses high-quality thickened steel plate, making thebody more sturdy and durable, with smooth andreliable welds for better use.

l Solid core seamless Steel pipe

Makes the entire vehicle more robust, withstronger load-bearing capacity and longer

l High-Strength Fork

Made of high-quality thickened steel, in.tegrally rolled using overall stampingtechnology.

l High-Quality Sealed Oil Pump

The oil pump steel base is a hydraulicallyintegrated design, usingimported seals, reliable sealing and leak prevention; the internaloverflow valve provides overload protection.

Model	NPR20S	NPR20M	NPR20L	NPR20SL	NPR20SL( I )	NPR20SL( II )
Load Capacity (kg)	2000	2000	2000	2000	2000	2000
Applicable Roll Diameter (mm)	Φ400-600	Φ600-800	Φ800-1200	Φ1200-1600	Φ1450-2350	Φ1900-3200
Fork Width (mm)	760	850	1000	1150	1200	1350
Steering Rear Wheel (mm)	Φ200×50 or Φ180×50	Φ200×50 or Φ180×50	Φ200×50 or Φ180×50	Φ200×50 or Φ180×50	Φ200×50 or Φ180×50	Φ200×50 or Φ180×50
Load Front Wheel Single(mm)	Φ78x100	Φ78x100	Φ78x100	Φ78x100	Φ78x100	Φ78x100
Load Front Wheel (Double) (mm)	Φ78x70	Φ78x70	Φ78x70	Φ78x70	Φ78x70	Φ78x70
Fork Length (mm)	800/900/1000/1100/1150/1220--(up to 1500 (customizable)
Self Weight (kg)	130	150	155	150	220	240
