Manufacture's type designation
|
|
|
SINOLIFT
|
|

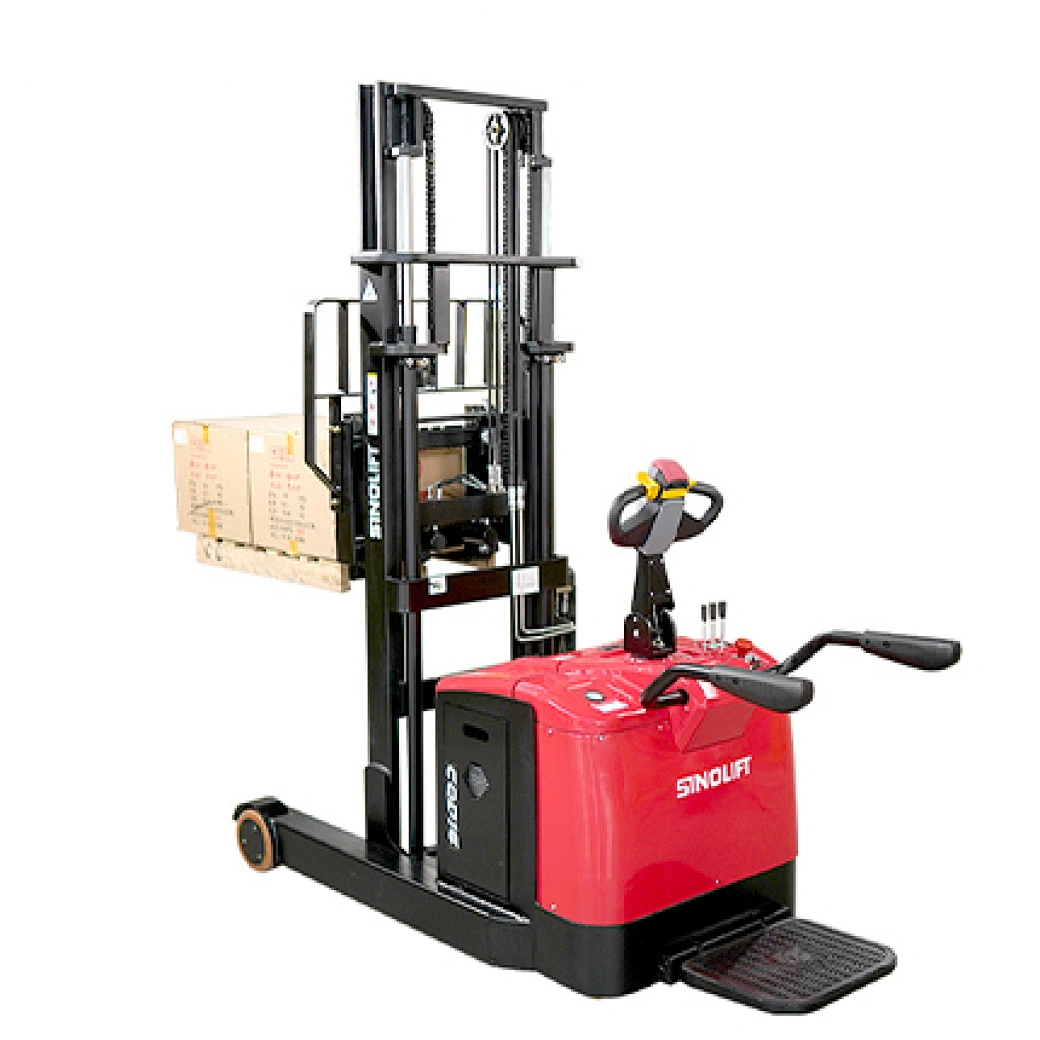

Model
|
|
|
Electric Reach Stacker

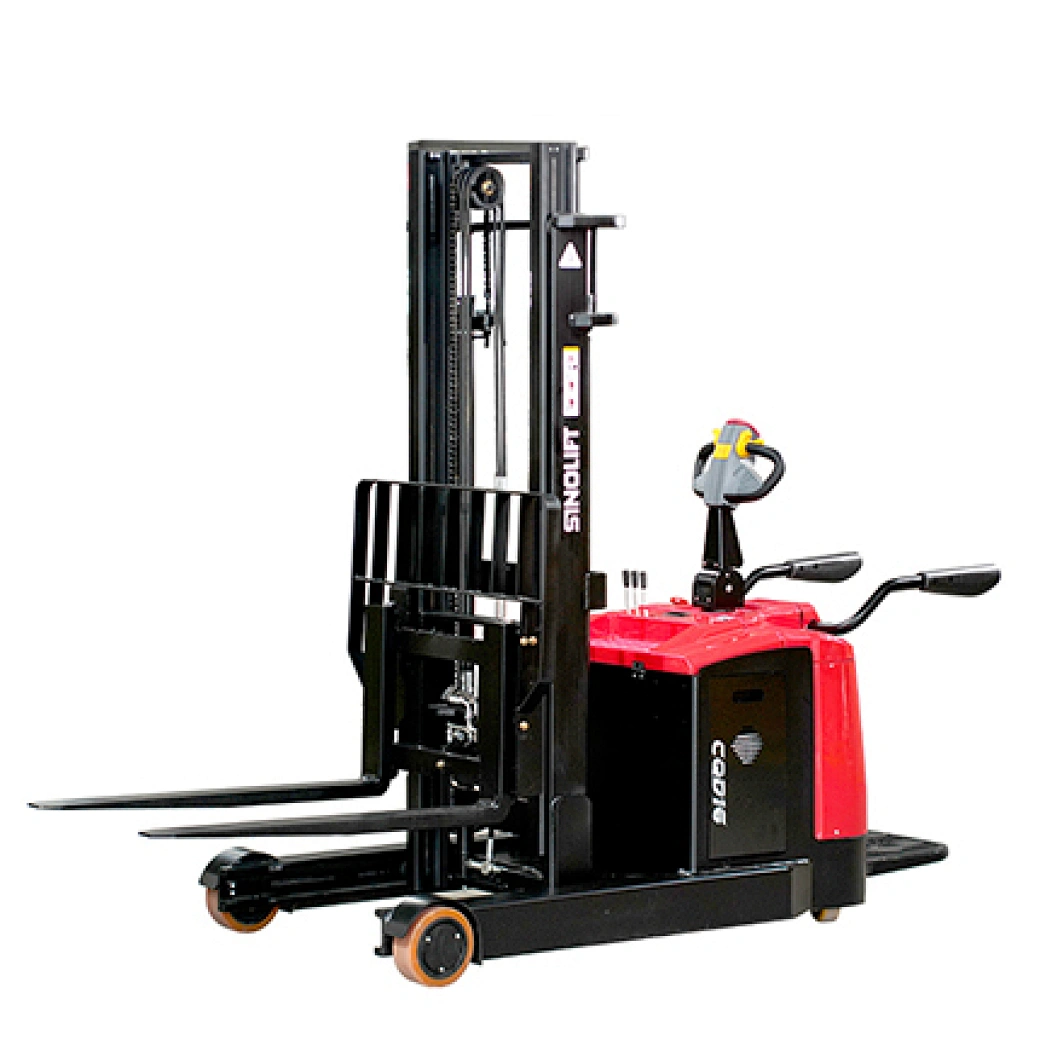

CQD16
|
Electric Reach Stacker

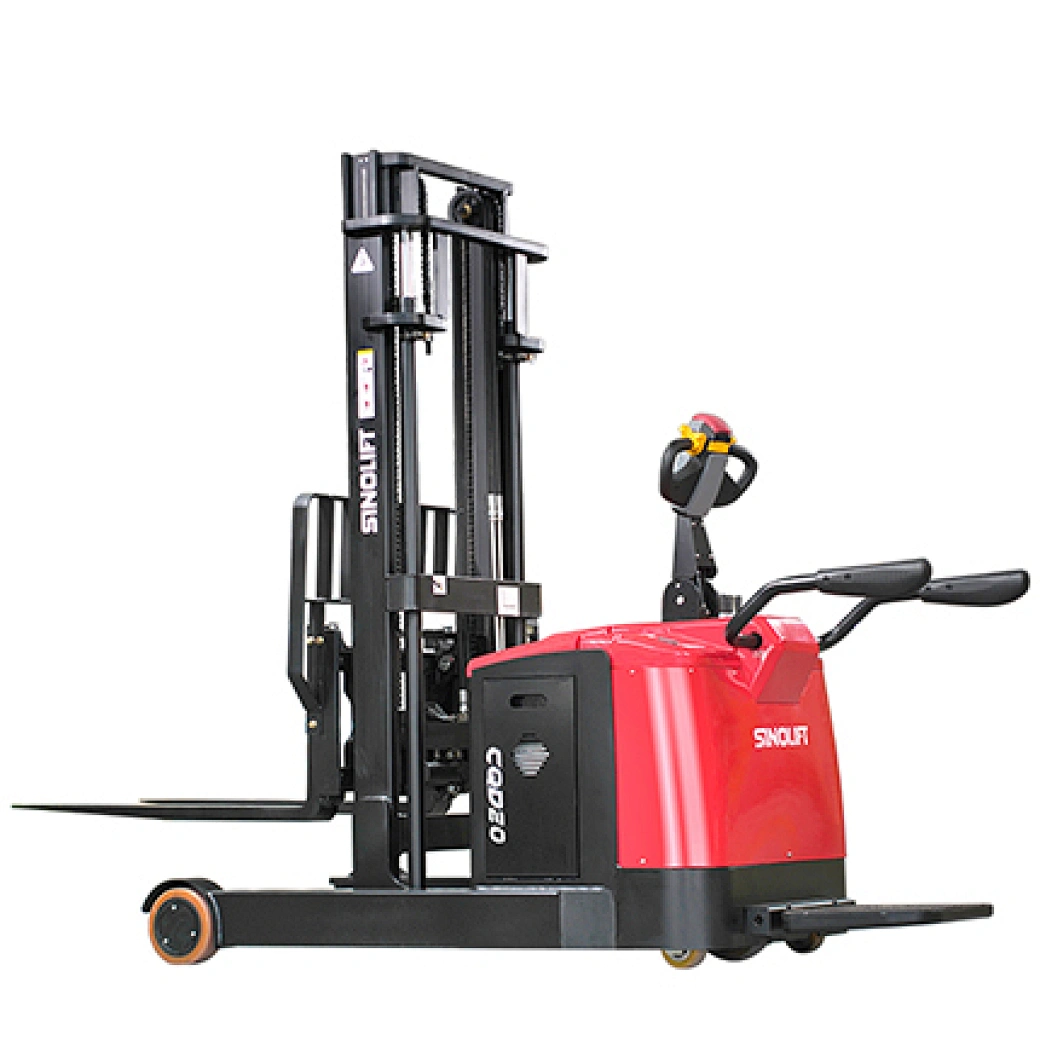

CQD20
|
|
Power Type
|
|
|
Electric
|
|
Type of Operation
|
|
|
Stand-on
|
|
Steering Mode
|
|
|
Electric Power Steering
|
|
Load Capacity/Rated Load
|
Q
|
kg
|
1600
|
2000
|
|
Load Center Distance
|
C
|
mm
|
600
|
600
|
|
Load distance, the center of drive axle to fork
|
x
|
|
160
|
160
|
|
Wheelbase
|
y
|
mm
|
1440
|
1610
|
|
Total Weight (with Battery)
|
|
kg
|
1980
|
2000
|
|
Axle Load (laden):Drive side/Load-bearing side
|
|
|
/
|
1
|
|
Axle Load (unladen):Drive side/Load-bearing side
|
|
kg
|
/
|
/
|
|
Overall Length (Pedal Retracted/Expanded)
|
L1/L2
|
|
2335/2750
|
2435/2870
|
|
Overall Width
|
W1/W2
|
mm
|
880/1030
|
880/1030
|
|
Lift Height
|
h1
|
mm
|
3000
|
3000
|
|
Height with Mast Lowered
|
h2
|
|
2040
|
2040
|
|
Height with Mast Extended
|
h4
|
mm
|
3855
|
3855
|
|
Free Lift Height
|
h5
|
|
/
|
/
|
|
Fork Dimension
|
l/e/s
|
mm
|
1070×100×40
|
1070×122×40
|
|
Fork Mounting Class
|
|
|
2A
|
2A
|
|
Fork Carriage Spread Width
|
b2
|
mm
|
220-690
|
220-690
|
|
Fork Carriage Tilt forward/backward
|
α/β
|
°
|
2/4
|
2/4
|
|
Inner Width of Straddle Leg
|
b3
|
|
748
|
748
|
|
Reach Distance
|
L3
|
mm
|
580
|
680
|
|
Height of Straddle Leg
|
h6
|
mm
|
235
|
235
|
|
Ground Clearance at the Center of Wheelbase (Min.)
|
m1
|
|
55
|
55
|
|
Height of Operating Handlebar (Min./Max)
|
h14
|
mm
|
1000/1450
|
1000/1450
|
|
Turning Radius (Pedal Retracted/Expanded)
|
Wa
|
|
1710/2145
|
1910/2340
|
|
Min.Aisle Width (Pallet size 1000*1200)(PedalRetracted/Expanded)
|
Ast
|
mm
|
2835/3270
|
2955/3485
|
|
Min.Aisle Width (Pallet size 800*1200)(Pedal Retracted/Expanded)
|
Ast
|
mm
|
2785/3220
|
2900/3330
|
|
Tyre Type
|
|
|
Polyurethane
|
Polyurethane
|
|
Tyre Size (Front)
|
|
|
φ210x85
|
φ210x85
|
|
Tyre Size (Balance Wheel)
|
|
mm
|
φ115x55
|
φ115x55
|
|
Tyre Size (Driving Wheel)
|
|
mm
|
φ230x75
|
φ230x75
|
|
Wheels Quantity, Front/Rear (x=Driving Wheels)
|
|
|
2/1x+2
|
2/1x+2
|
|
Traveling Speed (Laden/Unladen)
|
|
Km/h
|
5/5.5
|
4/5
|
|
Lifting Speed(Laden/Unladen)
|
|
mm/s
|
80/130
|
80/130
|
|
Lowering Speed (Laden/Unladen)
|
|
mm/s
|
150/100
|
150/100
|
|
Max. Gradient Performance S2 5min (Laden/Unladen)
|
|
%
|
5/8
|
4/8
|
|
Service Brake Type
|
|
|
Electromagnetic
|
Electromagnetic
|
|
Parking Brake Type
|
|
|
Electromagnetic
|
Electromagnetic
|
|
Drive Motor Rating (AC) S2-60min
|
|
|
1.5
|
1.5
|
|
Lift Motor Rating (DC) S3 15%
|
|
kW
|
3
|
3
|
|
Battery Voltage/Capacity K5
|
|
V/Ah
|
24/240
|
24/240
|
|
Battery Weight
|
|
kg
|
200
|
200
|
|
Controller Brand
|
|
|
CURTIS
|
CURTIS
|
|
Controller Model
|
|
|
1232E
|
1232E
|
|
Sound Level at Driver's Ear According to EN12053
|
|
dB
|
70
|
70
|
