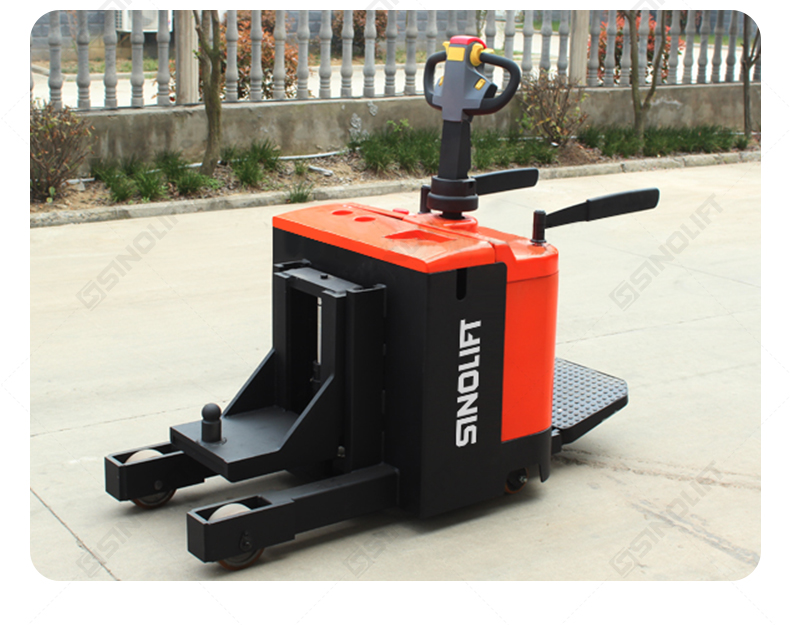

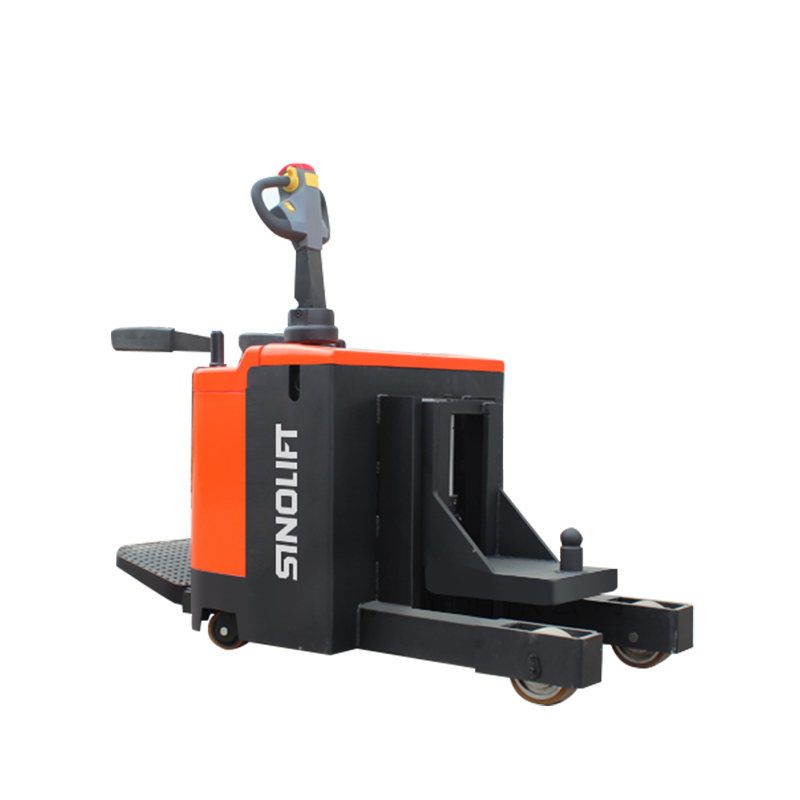

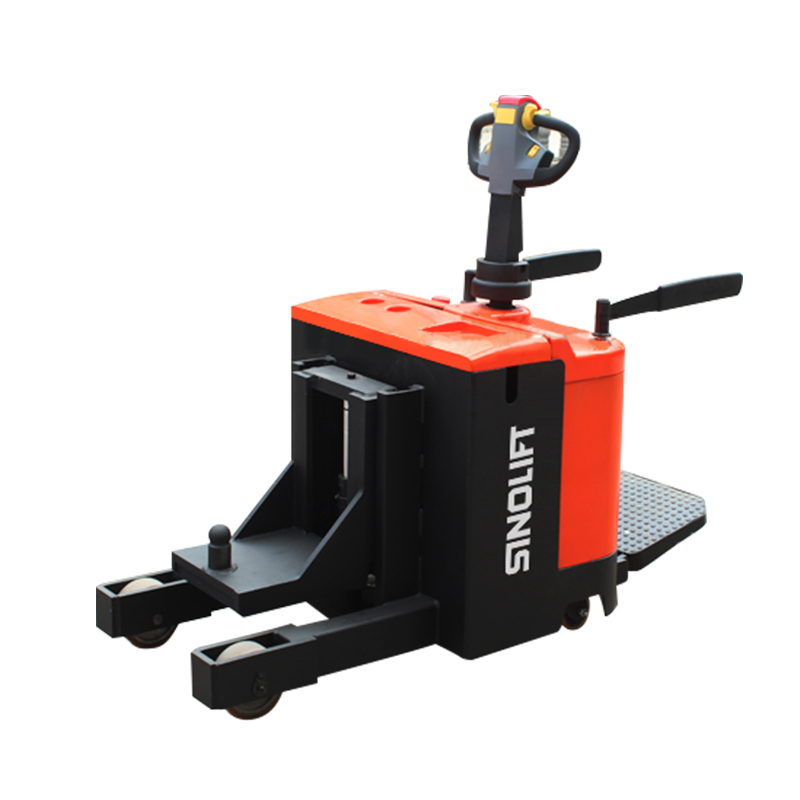

EKP30B Electric A-frame Tow Tractor with Stand-on Platform

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

Name：EKP30B Electric A-frame Tow Tractor with Stand-on Platform
Model：EKP30B Electric A-frame Tow Tractor with Stand-on Platform
Product Introduction：EKP30B Electric A-frame Tow Tractor with Stand-on Platform

1.Towing capacity 3000 kg

2.Steering angle 200 degrees

3.Platform type foldable with shock absorption

4.Wheel material polyurethane

5.Battery type maintenance-free sealed battery

6.Control system CURTIS controller

1.Emergency reverse protection

2. Quick-disconnect power switch

3.Anti-collision tiller design

4.Shock-absorbing standing platform

5.Long tiller ensures safe operation distance

Characteristic	1.1	Model		EKP30B
	1.2	Power		Electric
	1.3	Operation Type		Standing Type
	1.4	Load Traction Weight	Q(kg)	4000
	1.5	Wheelbase	Y(mm)	1030
	2.1	Self-weight (With Battery)	kg	/
Weight	2.2	Battery Weight	kg	180
	3.1	Wheel Type		PU
	3.2	Front Wheel	∅×w(mm)	φ180X76
Wheels, Chassis	3.3	Rear Wheel	∅×w(mm)	φ230X75
	3.4	Balance Wheel	∅×w(mm)	φ125*50
	4.1	Vehicle Height	h(mm)	1460
	4.2	Lift Height	h1(mm)	410
	4.3	Lift the hook off the ground	h3(mm)	225
	4.4	Outer leg distance	b5(mm)	650
	4.5	Overall Length	l1(mm)	1460
	4.6	Overall Width	b1(mm)	850
	4.7	Ground Clearance	m2(mm)	60
Dimensions	4.8	Turning Radius	Wa(mm)	1360/1760
	5.1	Travel Speed (Unladen/Laden)	km/h	5.5/4
	5.2	Max. gradeability (Unladen/Laden)	%	8/3
Performance	5.3	Service Brake		Electromagnetic
	6.1	Drive Motor	kw	2.5
	6.2	Lift Motor	KW	2.2
	6.3	Battery		Lead Acid
	6.4	Battery voltage/nominal capacity	V/Ah	24V210Ah
Motor, Charger	6.5	Charger	v/A	24V30A
	7.1	Type of drive control		AC
	7.1	Type of drive control		AC
Other	7.2	Sound level at the driver's ear acc. to EN12053	dB(A)	75
The data is for reference only, and the details shall be subject to the actual vehicle.
