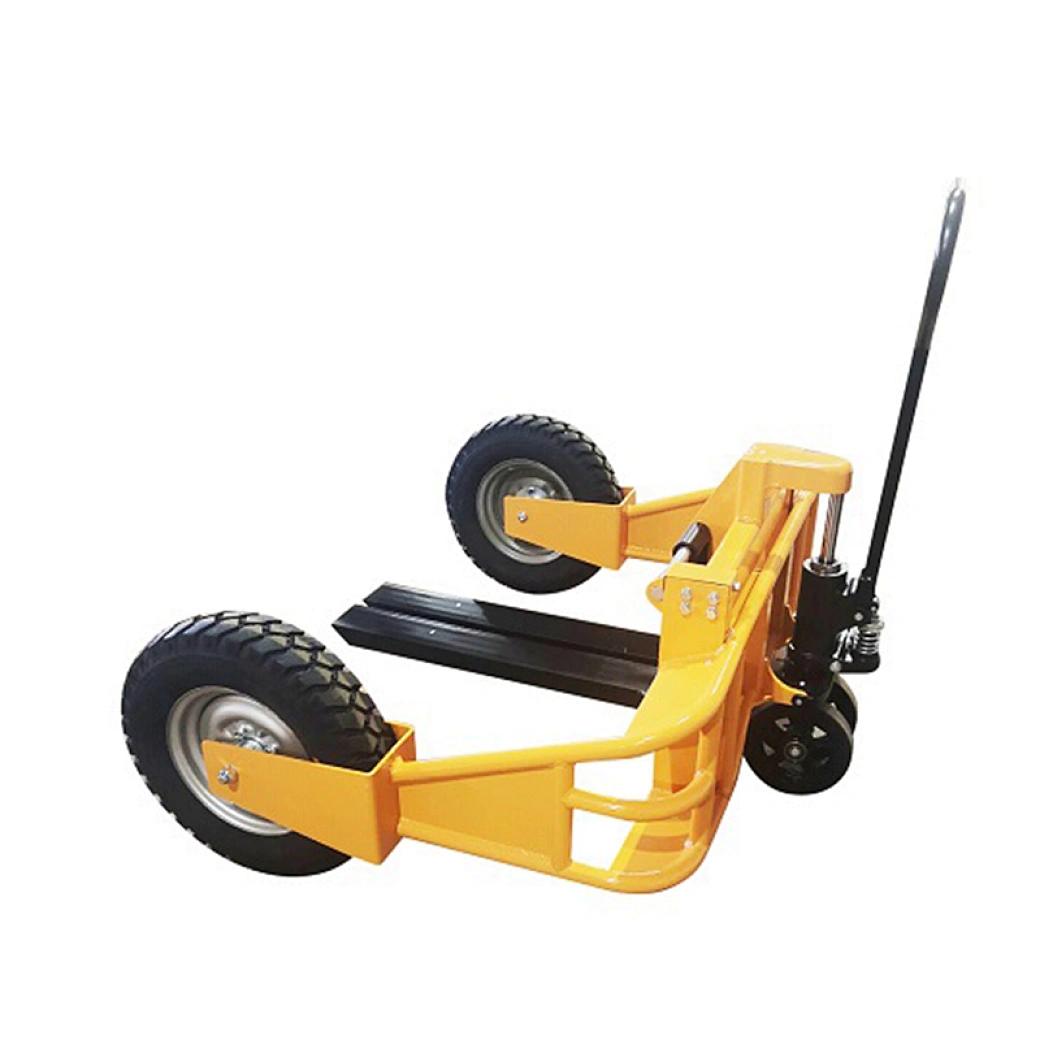

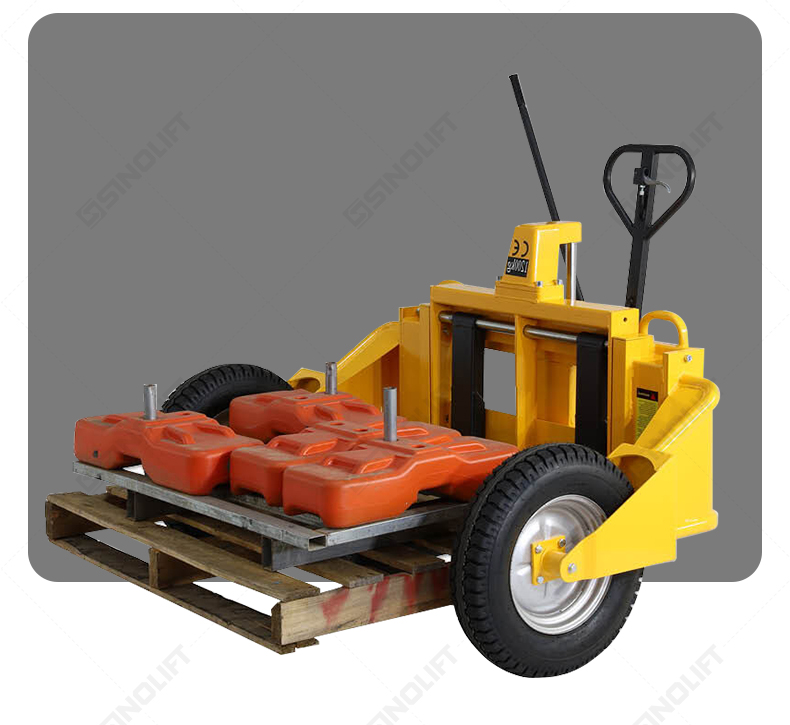

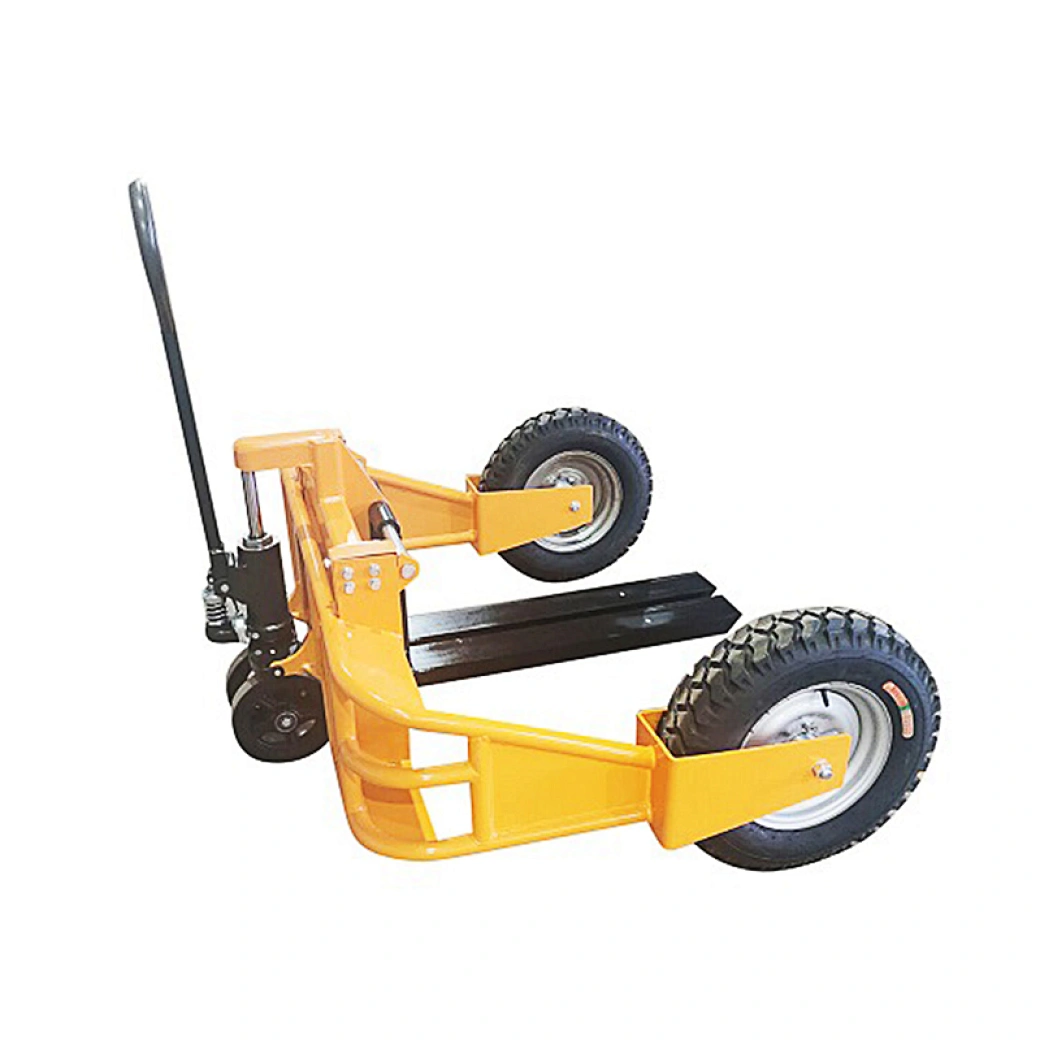

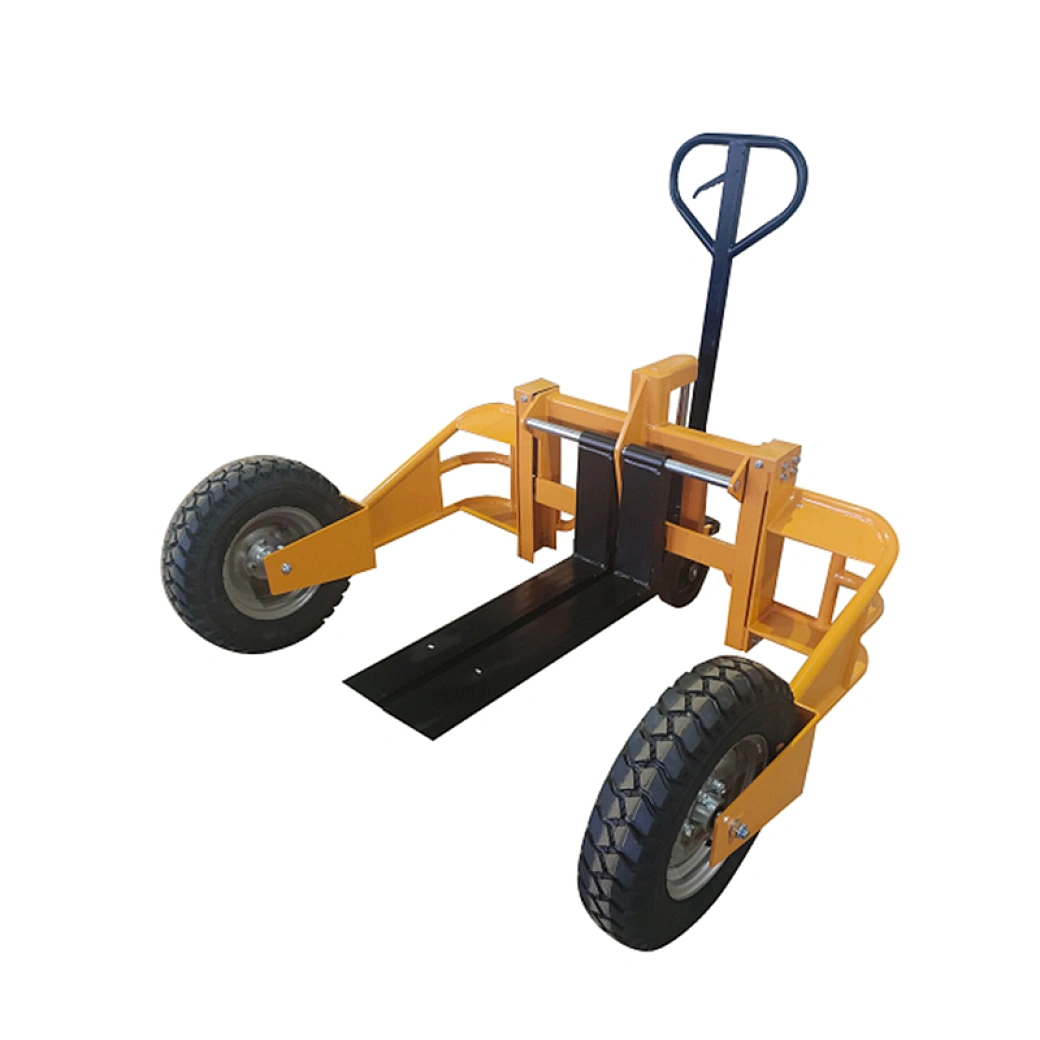

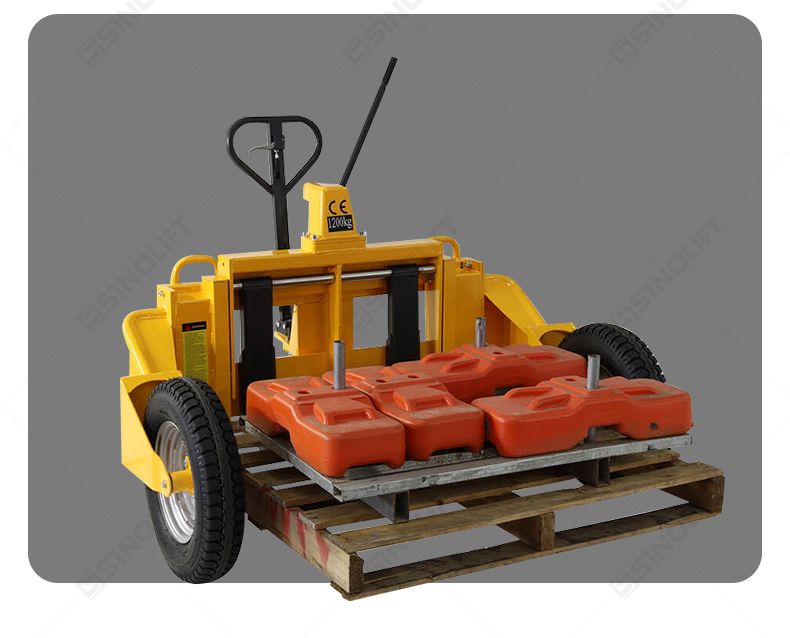

Name:RP1000A / RP1250A All-Terrain Manual Hydraulic Pallet Truck
Model:RP1000A / RP1250A
Product Introduction:The RP1000A/RP1250A All-Terrain Manual Pallet Truck delivers heavy-duty performance, ergonomic control, and smart fork width adjustment—built tough for outdoor use on any surface.

Product Name

RP1000A / RP1250A All-Terrain Manual Hydraulic Pallet Truck

The RP1000A/RP1250A All-Terrain Manual Pallet Truck delivers heavy-duty performance, ergonomic control, and smart fork width adjustment—built tough for outdoor use on any surface.

Key Features

1.  Heavy-Duty Performance

   - Rated load capacity up to 1,250kg

   - Reinforced structure designed for rough and uneven surfaces

   - Construction-grade steel reinforced chassis

2.  Ergonomic Design Features

   - Biomechanically optimized lever system

   - Balanced weight distribution enables one-handed steering

   - Adjustable handle height accommodates operators of different heights

3.  All-Terrain Adaptability

   - IP54 certified dustproof and waterproof construction

   - Suitable for outdoor environments (construction sites, nurseries, warehouses)

4. Smart Adjustment System

   - Tool-free fork width adjustment (76-229mm range)

   - Patented quick-lock mechanism enables width adjustment in under 10 seconds

   - Compatible with EUR, US, and non-standard pallets

Specification Unit RP1000A RP1250A
Rated Capacity  kg 1000 1250
Max. Fork Height  h1 mm 240 240
Min. Fork Height  h mm 70 70
Fork Length  l mm 800 (860) 800 (860)
Load Center  C mm 400 (430) 400 (430)
Adjustable Fork Width  mm 216-680 256-680
Individual Fork Width   b mm 100 120
Distance inside the Front Wheel  B1 mm 1230 1230
Axle Distance between front Wheel and rear steering wheel  Y mm 973 973
Front Load Wheel (Dia.×Wid)  mm Ø568×145 Ø568×145
Rear Steering Wheel (Dia.×Wid)  mm Ø250 Ø250
Turn Radius  Wa mm 1500 1500
Overall Size (L×W×H)  mm 1406×1670×1280 1406×1670×1280
Net Weight  kg 210 238
