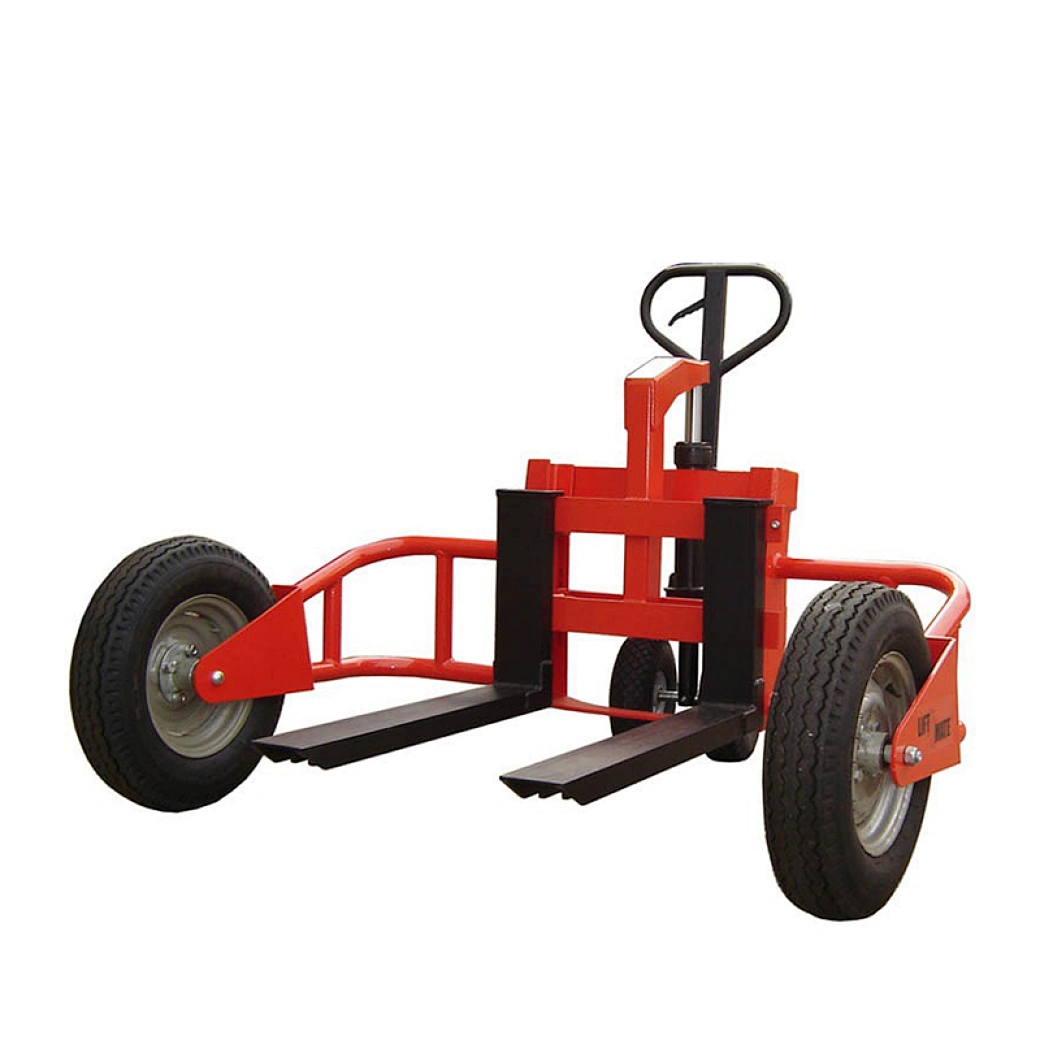

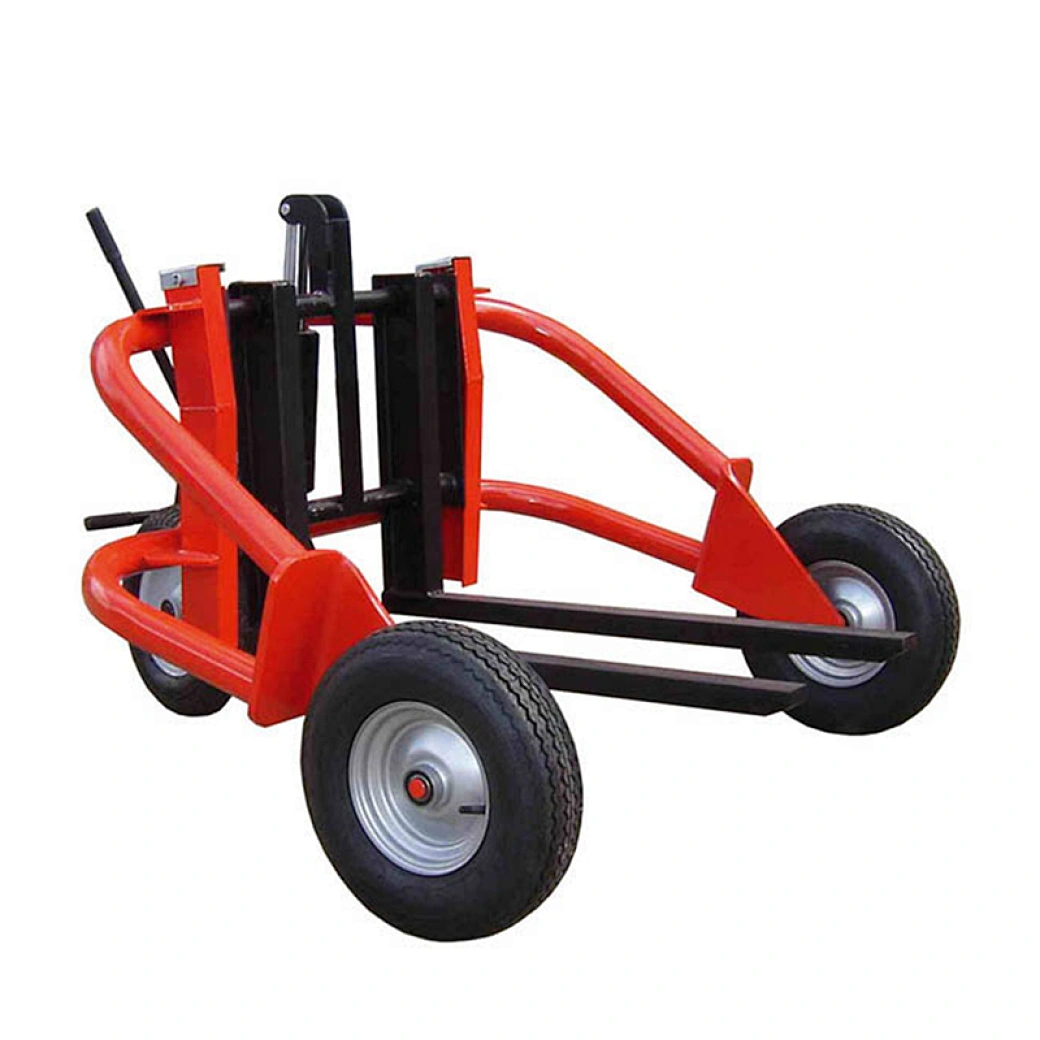

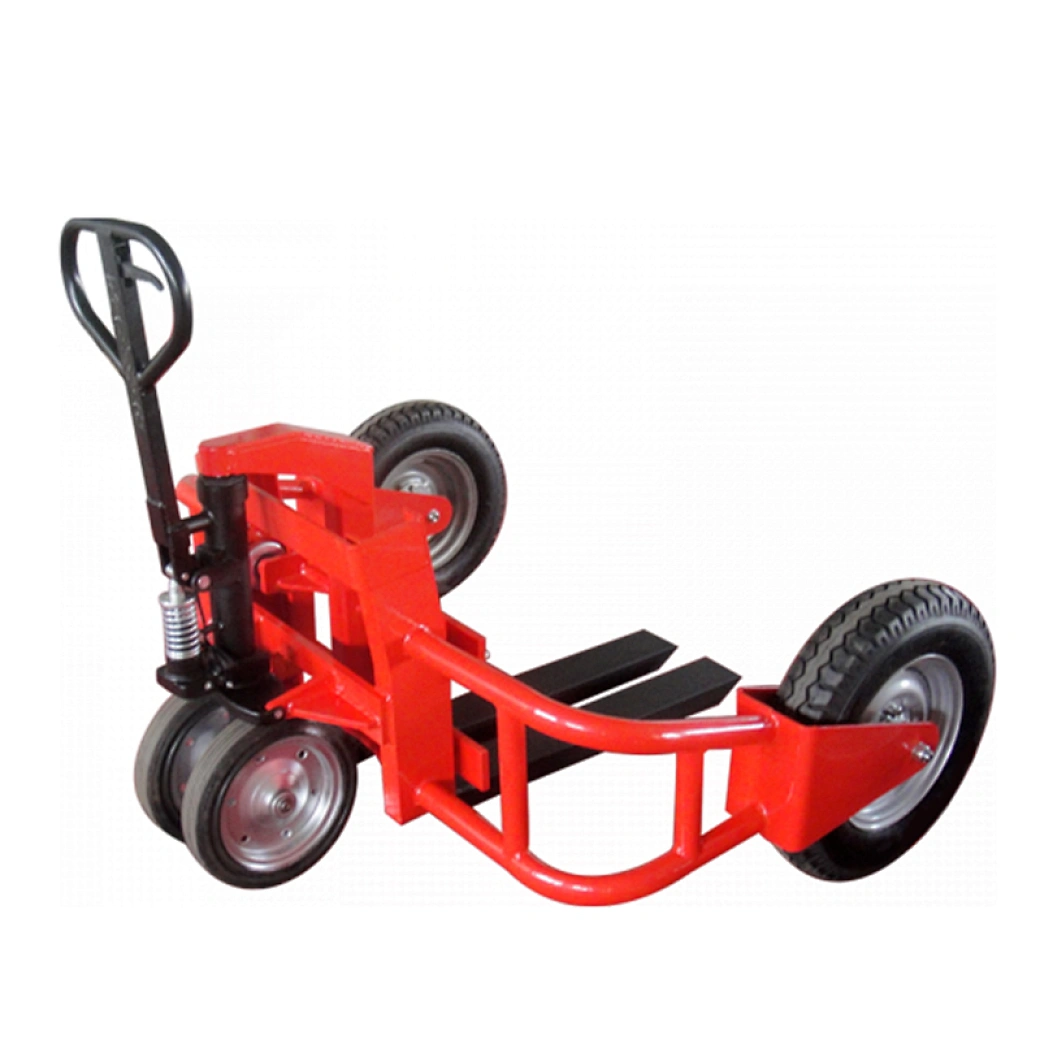

Name:RP1500B All-Terrain Heavy-Duty Manual Pallet Truck
Model:RP1500B
Product Introduction:The RP1500B All-Terrain Manual Pallet Truck features a patented lift-handle control system, rugged load capacity, and terrain-conquering wheels—engineered for effortless heavy-duty performance anywhere.

Product Name

RP1500B All-Terrain Heavy-Duty Manual Pallet Truck

The RP1500B All-Terrain Manual Pallet Truck features a patented lift-handle control system, rugged load capacity, and terrain-conquering wheels—engineered for effortless heavy-duty performance anywhere.

Key Features

1. Exclusive Lift-Handle Control System

- Innovative linkage mechanism synchronizes handle height with fork width adjustment

- Single-handed operation completes fork positioning (3"-9"/76-229mm range)

- Automatic mechanical locking ensures secure fixation

2. Exceptional Load Performance

- High-strength tubular steel frame optimizes strength-to-weight ratio

- Reinforced hydraulic system withstands intensive operations

3. All-Terrain Adaptation System

- Sealed bearing wheels resist sand and debris intrusion

- Special tread pattern conquers ramps and rough terrain

- Maintenance-free self-lubricating axle bearings

Specifications Unit
Model RP1500B
Capacity kg 1500
Max. Fork Height (H) mm 323
Min. Fork Height (h) mm 53
Wheel Base (N) mm 973
Fork Length (L) mm 820
Load Center mm 400
Adjustable Fork Width (E) mm 316–660
Distance Inside Front Wheel (F) mm 1279
Front Load Wheel (D×f1) mm 568×145
Rear Steering Wheel (D×f2) mm 350
Turning Radius (Wa) mm 1200
Overall Length (A) mm 1250
Overall Width (B) mm 1711
Overall Height (C) mm 1220
Net Weight kg 199
