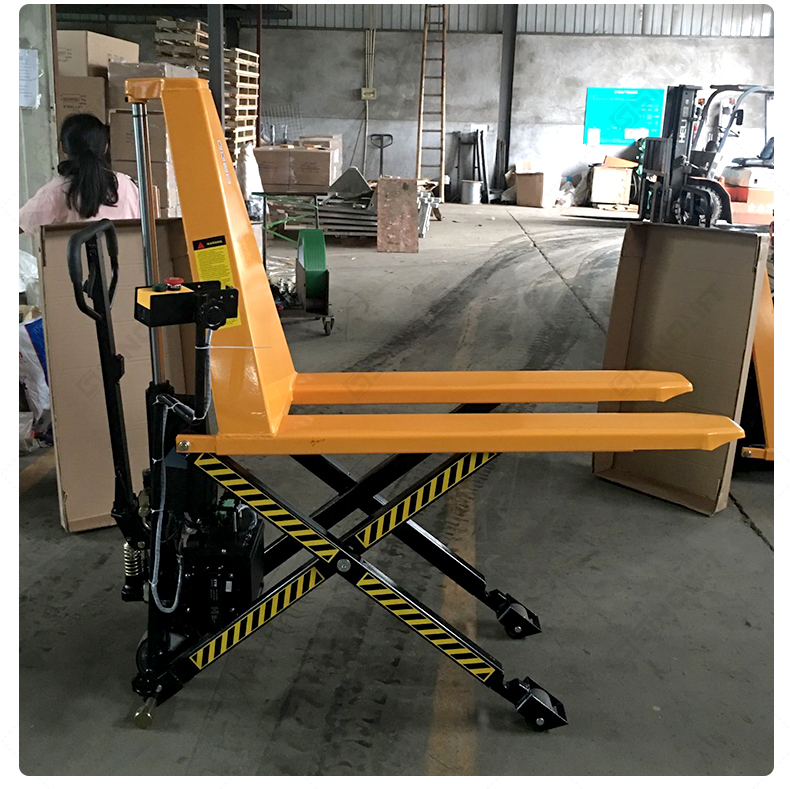

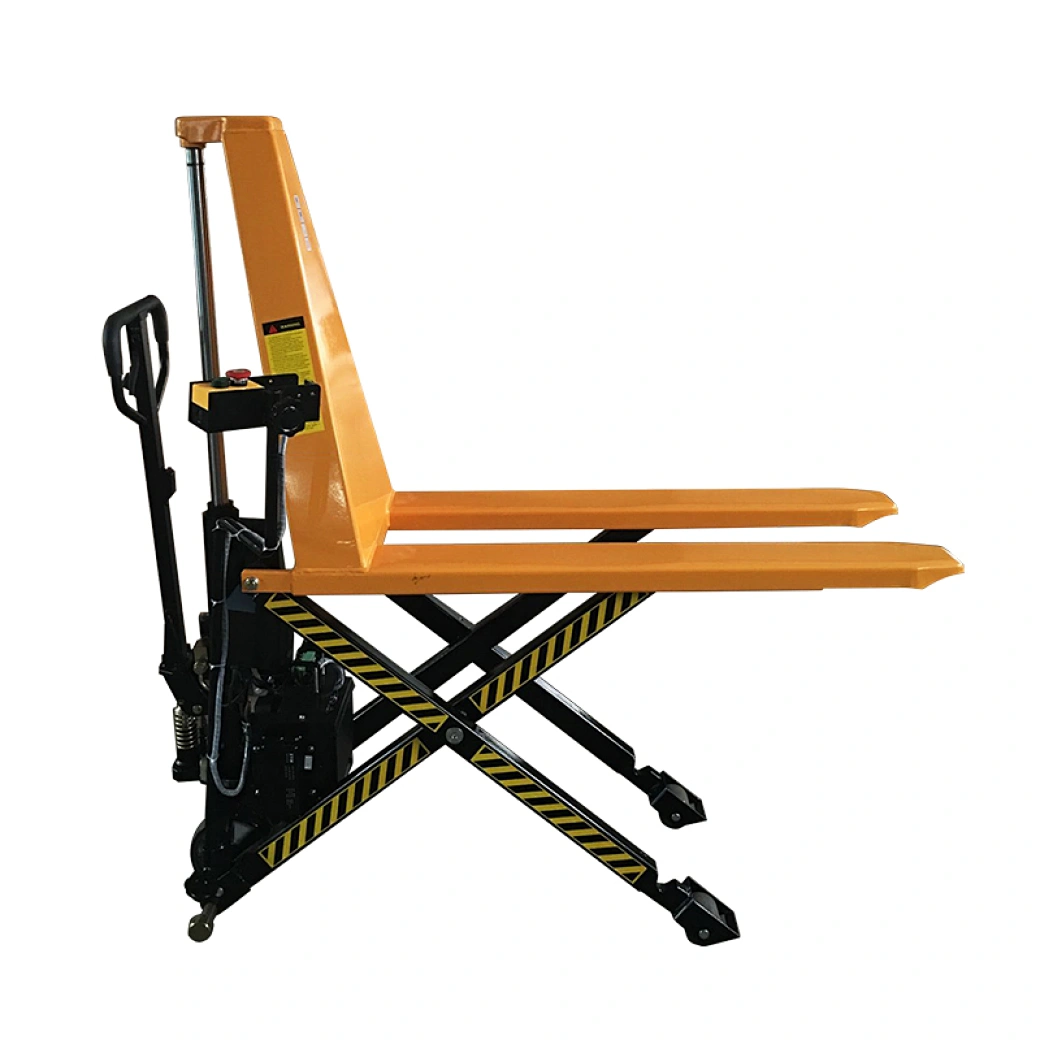

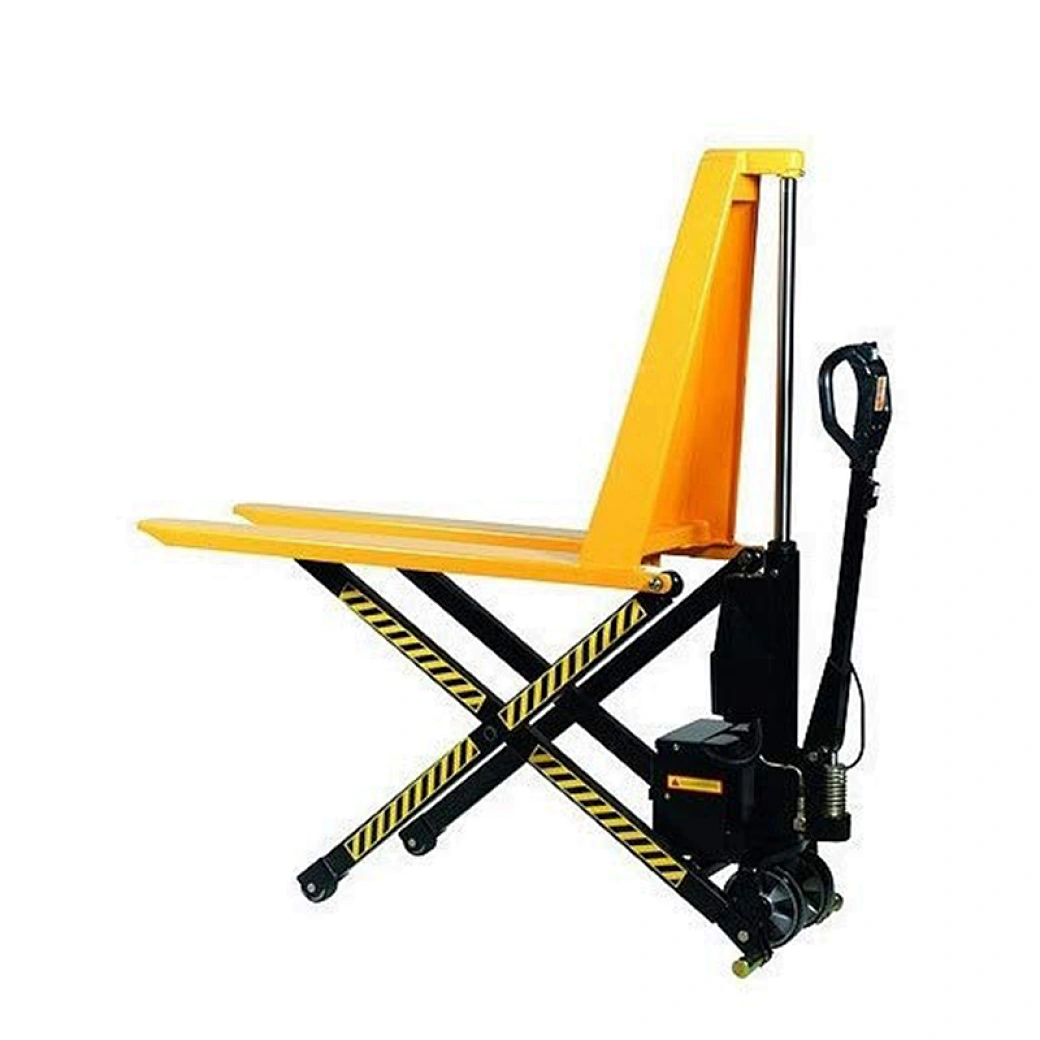

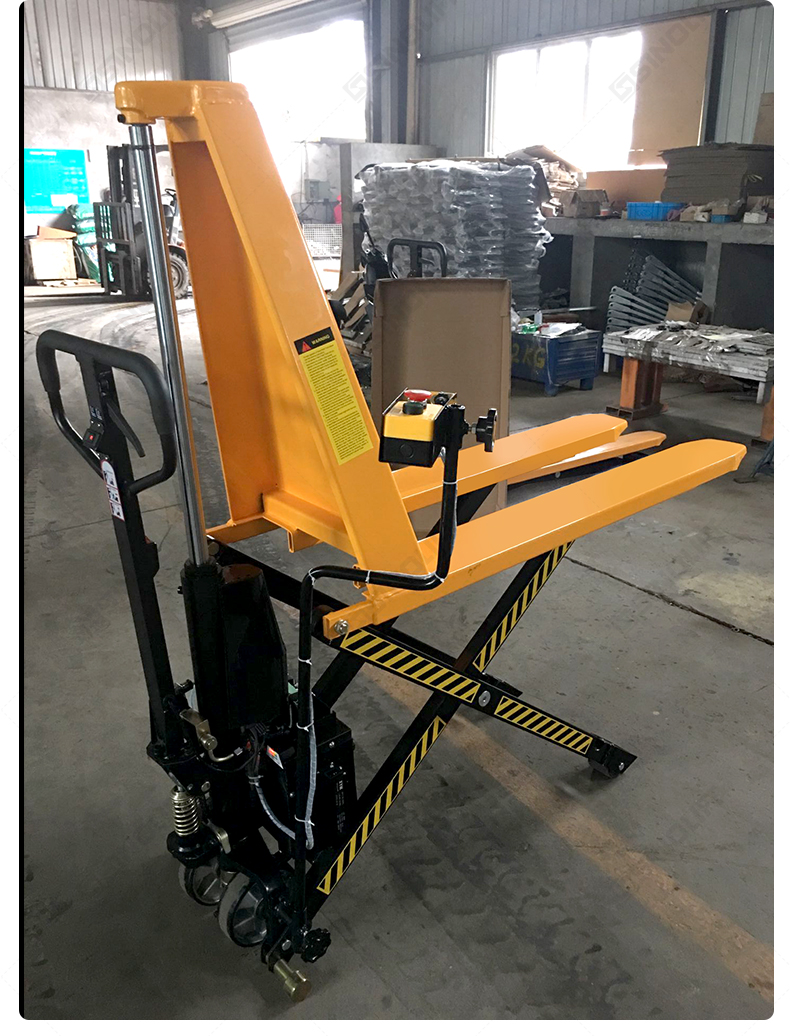

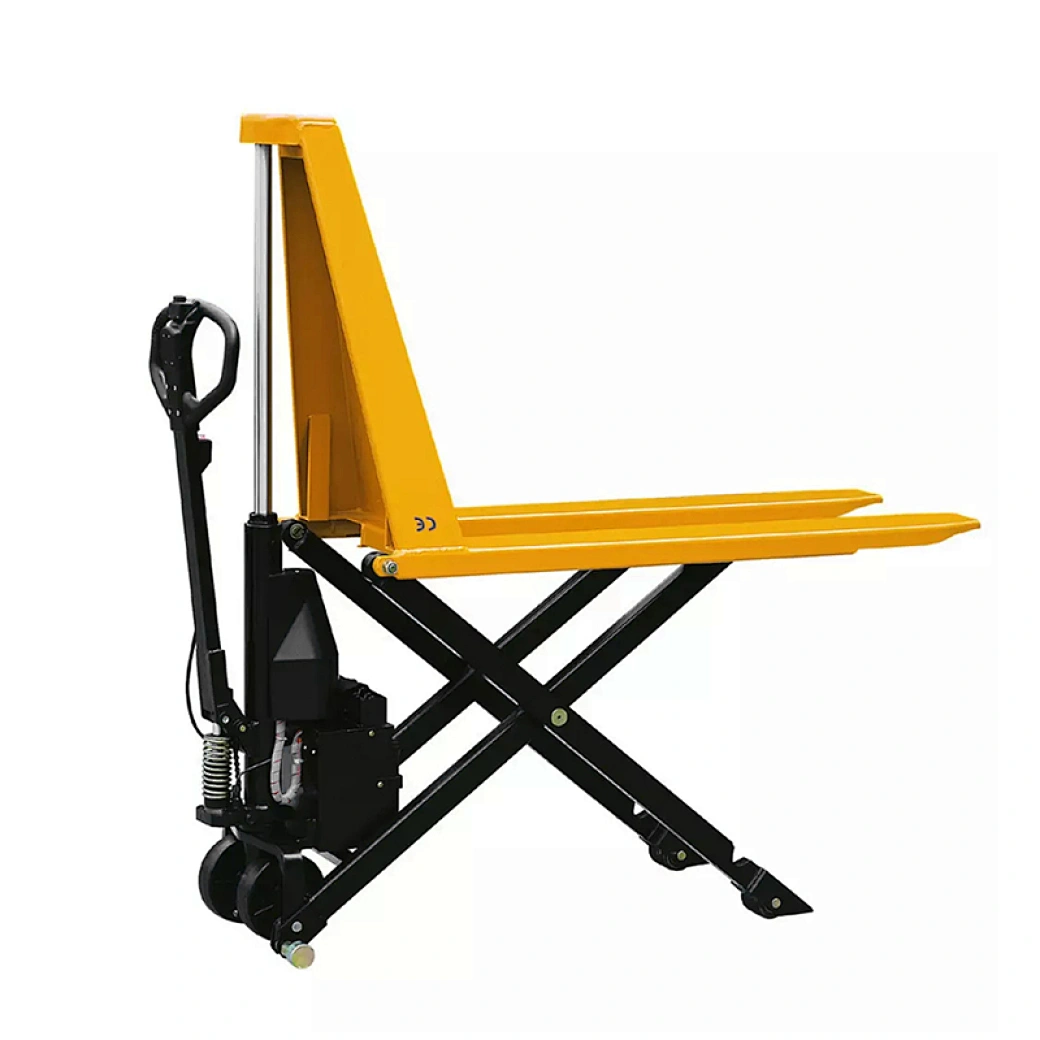

Name:NPHE-1 Electric High Lift Scissor Pallet Jack
Model:NPHE-1
Product Introduction:This scissor lift features a single-stage hydraulic system, electric-powered lift, reinforced stability, and ergonomic manual transport design for efficient, smooth, and safe lifting and maneuvering.

Product Name

NPHE-1 Electric High Lift Scissor Pallet Jack

This scissor lift features a single-stage hydraulic system, electric-powered lift, reinforced stability, and ergonomic manual transport design for efficient, smooth, and safe lifting and maneuvering.

1. Single-Stage Hydraulic System – Simplified, Stronger, Smarter

Equipped with a single-stage cylinder for direct and stable lifting

Smoother control, especially at mid-range heights

2. Electric-Powered Lift for Maximum Efficiency

One-touch electric lifting reduces operator fatigue

Lithium or maintenance-free battery options available

Built-in overload protection ensures longer service life

3. Scissor-Lift Stability That Goes the Distance

Reinforced scissor frame resists torsional stress under full load

Designed to lift up to 1,000 kg (2,200 lbs) with ease

High rigidity platform reduces wobble during elevated positioning

Perfect for use as a temporary workbench or order picking station

4. Ergonomic Manual Transport Design

Effortless maneuverability via manual pull handle

Low rolling resistance reduces effort during transport

Model NPHE-1(540) NPHE-1(680)
Rated Load Capacity kg 1000 1000
Cylinder Type Single-stage Single-stage
Maximum Fork Height mm 800 800
Minimum Fork Height mm 85 85
Fork Length mm 1150 1150
Fork Width mm 540 680
Drive Wheel Dimensions mm φ180×50 φ180×50
Fork Wheel Dimensions mm φ74×50 φ74×50
Battery V/Ah 12/75 12/75
Net Weight kg 165 170
